Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Condition :
New
Warranty :
1 year
Material :
Carbon Steel/ Stainless Steel
Voltage :
220V/380V/As cuntomer's request
Material Feature :
Heat Resistant
Structure :
Tube Chain Conveyor
Slant Angle :
Max. 30 degree
Chain Material :
40Cr/ Q245 Carbon steel
Dimension(L*W*H) :
As Customer's Request
Feature :
Easy Operation
Application :
Manufacturing Plant, Grain Storage, Energy & Mining
After-sales Service Provided :
Field installation, commissioning and training
Description

MS Type Buried Scraper Conveyor Forged Chain Conveyor For Fly Ash, Coal, Etc.


Product Description

MS type chain scraper conveyor with high quality is a bulk material conveying equipment, which is consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains. By moving the chain, the material in the closed rectangular box can be continuously transported horizontally or slightly tilted.

MS type drag chain scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.

MS Type Buried Scraper Conveyor , Forged Stainless Steel Chain Conveyor

Main Features

1. Totally enclosed structure, light weight, small volume.

2. Convenient installation and maintenance.

3. Horizontal or slightly inclined transport from 0℃ to 30℃.

4. Multiple material feeding point and discharging point.

5. Conveying distance is up to 80m.


Main Parameters

Model MS 16 MS 20 MS 25 MS 32 MS 40 MS 50
Chute Width (mm) 160 200 250 320 400 500
Transport Speed (m/s) 0.16, 0.20, 0.25, 0.32
Bulk Density (t/m3) 0.2~1.8
Capacity (m3/h) 15~29 23~46 36~72 59~118 83~166 115~230
Conveyor Length (m) 10~80
Installation Angle (degree) 0°~30°


Why choose us?

1. Factory direct sale: No middlemen, no discount on service, help to save time, as well as money for you.
2. An excellent R&D team: A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
3. Strict quality control: Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
4. Good after-sale service:
a. Provide installation plan guidance.
b. 2 hours for after-sales response, 24 hours for solution.

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

MS Type Buried Scraper Conveyor , Forged Stainless Steel Chain Conveyor

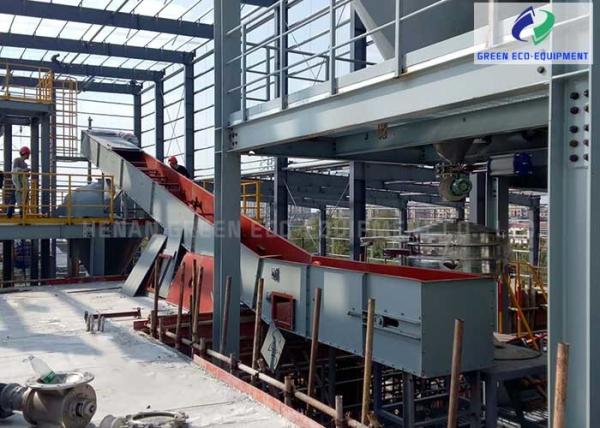

Field Usage

MS Type Buried Scraper Conveyor , Forged Stainless Steel Chain Conveyor
