High Strength Flat Belt Conveyor Machine For Sand Gravel Bulk Materials
High Strength Flat Belt Conveyor Machine For Sand Gravel Bulk Materials
High Strength Flat Belt Conveyor Machine For Sand Gravel Bulk Materials
High Strength Flat Belt Conveyor Machine For Sand Gravel Bulk Materials
Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Condition :
New
Frame Material :
Carbon Steel
Belt Material :
PVC PU Rubber
Material Feature :
Heat Resistant
Structure :
Belt Conveyor
Dimension(L*W*H) :
As Customer's Request
Application :
Grain Storage, Mining, Cement, Coal Industries.
After-sales Service Provided :
Field installation, commissioning and training
Description

High Quality Flat Belt Conveyor Machine For Sand Gravel Bulk Materials

Product Description

High Quality Flat Belt Conveyor Machine For Sand Gravel Bulk Materials is a kind of constantly conveying machine which is widely used in industrial field. It’s suitable for conveying of various bulk material or packed materials, like particle, powder of 0.5~2.5t/m³ density, also to goods of pieces or packages. It can be used with other conveying machine. It has a lot of advantages of large throughput, low operating cost, wide range of application. According to the support structure, there are fixed type and mobile type. According to the conveying belt, there are rubber belt, plastic belt and steel belt. Its structure is simple, very safe, easy maintenance, can be widely used in flour factory, feed processing plant, oil factory, starch factory, mines, cement, construction, chemical, glass and other industries.


Main Parameters

Belt width(mm) Belt speed(m/s) Conveying capacity(m³/h) Motor Power(kw)
Groove type Flat type
500 0.8-2.5 78-232 41-125 1.5-30
650 0.8-2.5 131-391 67-211 1.5-40
800 1.0-3.15 278-824 118-350 1.5-75
1000 1.0-3.15 435-1233 230-546 3-100
1200 1.0-4.0 655-2202 345-821 4-185
1400 1.0-4.0 891-2996 469-1117 4-185


Main Features

1. Belt has kinds of materials.

2. Stepless variable speed.

3. Big throughput and low operating cost.

4. Widely range of application.

Application

Belt conveyor is widely used for coal, chemical industry, building materials, metallurgy, electric power, light industry grain, port, shipping, etc. Specific gravity of bulk materials is 0.5-2.5 t/m³ can be conveyed in the working environment where the temperature is during -15 degree to 140 degree centigrade.

High Strength Flat Belt Conveyor Machine For Sand Gravel Bulk Materials

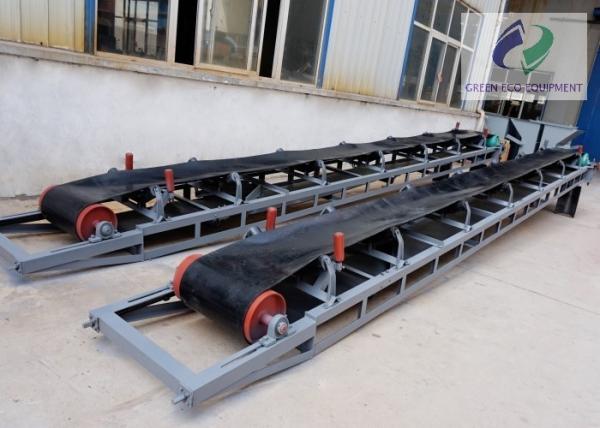

Details Show

High Strength Flat Belt Conveyor Machine For Sand Gravel Bulk Materials

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
High Strength Flat Belt Conveyor Machine For Sand Gravel Bulk Materials

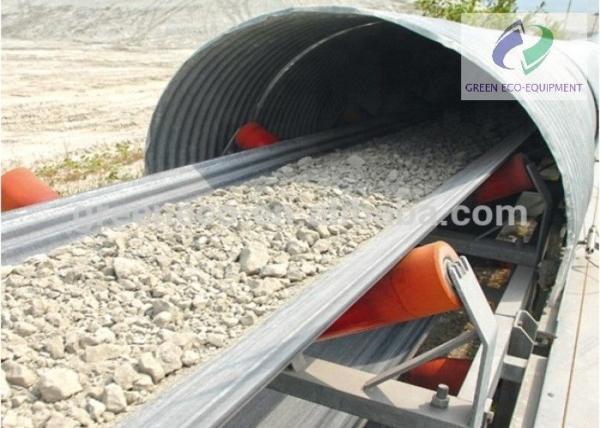

Field Usage
High Strength Flat Belt Conveyor Machine For Sand Gravel Bulk Materials
