Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Condition :
New
Warranty :
1 year
Frame Material :
Carbon Steel
Belt Material :
PVC PU Rubber
Voltage :
220V/380V/As cuntomer's request
Material Feature :
Heat Resistant
Structure :
Belt Conveyor
Dimension(L*W*H) :
As Customer's Request
Application :
Grain Storage, Mining, Cement, Coal Industries.
After-sales Service Provided :
Field installation, commissioning and training
Description

General Fixed Belt Conveyor Long Distance Belt Conveying System

Product Description

General fixed belt conveyor is a kind of constantly conveying machine which is widely used in industrial field. It’s suitable for conveying of various bulk material or packed materials, like particle, powder of 0.5~2.5t/m³ density, also to goods of pieces or packages. It can be used with other conveying machine. It has a lot of advantages of large throughput, low operating cost, wide range of application. Its structure is simple, very safe, easy maintenance, can be widely used in flour factory, feed processing plant, oil factory, starch factory, mines, cement, construction, chemical, glass and other industries.

General Fixed Long Distance Belt Conveyor , Horizontal Belt Conveyor Wear Resistance

Main Features

1.Belt Conveyors can work at the ambient temperature between - 10 ℃ and 40 ℃.

2.Choose conveyor belt reasonably according to different temperature of material.The temperature is generally no higher than 60℃.

3.Heat-resisting type belt must be used when conveying materials with higher temperature


Main Parameters

Belt width(mm) Belt speed(m/s) Conveying capacity(m³/h) Motor Power(kw)
Groove type Flat type
500 0.8-2.5 78-232 41-125 1.5-30
650 0.8-2.5 131-391 67-211 1.5-40
800 1.0-3.15 278-824 118-350 1.5-75
1000 1.0-3.15 435-1233 230-546 3-100
1200 1.0-4.0 655-2202 345-821 4-185
1400 1.0-4.0 891-2996 469-1117 4-185


Details Show

General Fixed Long Distance Belt Conveyor , Horizontal Belt Conveyor Wear Resistance

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
General Fixed Long Distance Belt Conveyor , Horizontal Belt Conveyor Wear Resistance

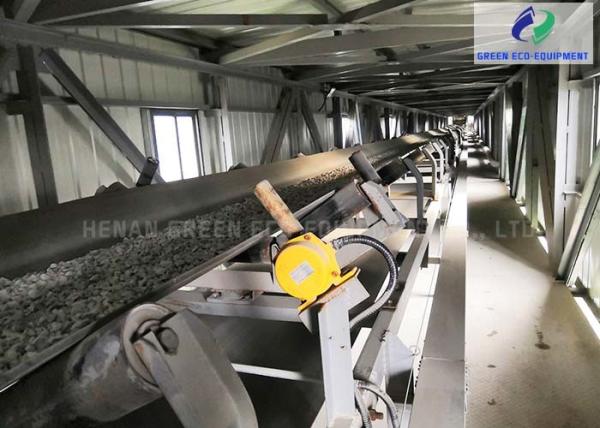

Field Usage
General Fixed Long Distance Belt Conveyor , Horizontal Belt Conveyor Wear Resistance
