Large Capacity Apron Weigh Feeder , Chain Plate Feeder For Power Plant
Large Capacity Apron Weigh Feeder , Chain Plate Feeder For Power Plant
Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Material :
Cast Steel
Voltage :
220V/380V/As Customer's Request
Material Feature :
Heat Resistant
Capacity(t/h) :
30-900t/h
Dimension(L*W*H) :
As Customer's Request
Granule Size :
<1000mm
Suitable Material :
Cement, Coal, Gravel, Stone
Application :
Construction works, Mining, Power Plant, Metallurgical Industry
Warranty :
2 Years
After-sales Service Provided :
Field installation, commissioning and training
Description

High Quality Large Capacity Apron Feeder Chain Plate Feeder for Power Plant

Product Description

High Quality Large Capacity Apron Feeder Chain Plate Feeder for Power Plant is a large machine that carries large bulk of stone or other materials to Crusher or silo etc. These machines is known as plate feeders or apron conveyors. Apron feeder machines can control the conveying volume and speed automatically.It is mainly used in coal mining, quarry, metal mining, chemical industry, metallurgy, cement factory etc.

Installation instructions: It can be installed horizontally or aslant, make sure the maximum slant angle no more than 12 degrees.

Main Parameters

Model Plate width Head to tail shaft center distance Speed Feed size Capacity Power Reference weight
(mm) (mm) (m/s) (mm) (t/h) (kw) (kg)
WBZ160-9 1600 9000 0.01-0.15 ≤1000 900 30 50000
WBZ180-8 1800 8000 0.01-0.15 ≤1000 ≤1000 37 59000
WBZ200-10 2000 10000 0.01-0.15 ≤1000 ≤1100 37 82000
WBZ220-10 2200 10000 0.01-0.15 ≤1200 ≤1200 45 85000
WBZ230-10 2300 10000 0.01-0.15 ≤1200 ≤1300 45 86000
WBZ240-10 2400 10000 0.01-0.15 ≤1600 ≤1400 2x37 95000
WBZ250-11.5 2500 11500 0.01-0.15 ≤1800 1500 2x45 105000

Working Principle

The working process is divided into two parts:

Firstly, the dynamic is produced by motor and transited to connecting rod and ratchet wheel by reducer.

Secondly, the dynamic prompts the connecting rod of eccentric device to reciprocate. The dynamic also prompts pawl and ratchet wheel to make driving sprocket rotate so that link plate intermittently moves.

As a result, minerals are conveyed.

Main Features

The traction chain is made of long pitch plate pin shaft roller chain, and the parts of chain and made of alloy steel. After scientific heating treatment, the traction chain is endowed with many advantages: good wear resistance, high tensile strength, long service life, adopting of the stamping groove, and the middle part shows high performance and large carrying capacity through the use of reinforcing bars.

Details Show

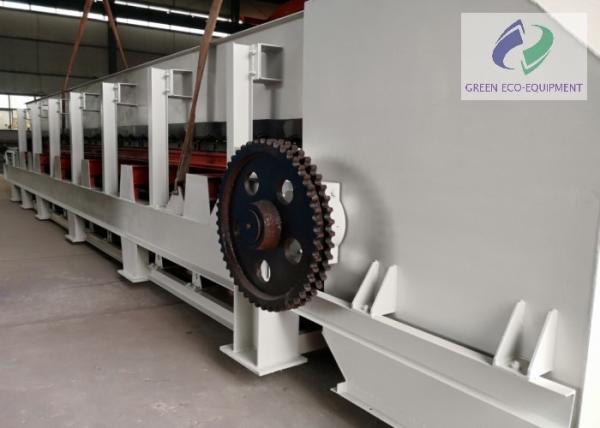

Large Capacity Apron Weigh Feeder , Chain Plate Feeder For Power Plant

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

Large Capacity Apron Weigh Feeder , Chain Plate Feeder For Power Plant

Project Case

Large Capacity Apron Weigh Feeder , Chain Plate Feeder For Power Plant
