Single Wing Hydraulic Lifting Mobile Belt Conveyor , Truck Loading Belt Conveyor
Single Wing Hydraulic Lifting Mobile Belt Conveyor , Truck Loading Belt Conveyor
Single Wing Hydraulic Lifting Mobile Belt Conveyor , Truck Loading Belt Conveyor
Single Wing Hydraulic Lifting Mobile Belt Conveyor , Truck Loading Belt Conveyor
Single Wing Hydraulic Lifting Mobile Belt Conveyor , Truck Loading Belt Conveyor
Single Wing Hydraulic Lifting Mobile Belt Conveyor , Truck Loading Belt Conveyor
Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Condition :
New
Frame Material :
Carbon Steel/Stainless Steel
Belt Material :
PVC PU Rubber
Material Feature :
Heat Resistant
Application :
Truck Loading and Unloading, Grain Storage, Mining, Cement, Coal Industries.
After-sales Service Provided :
Field installation, commissioning and training
Description

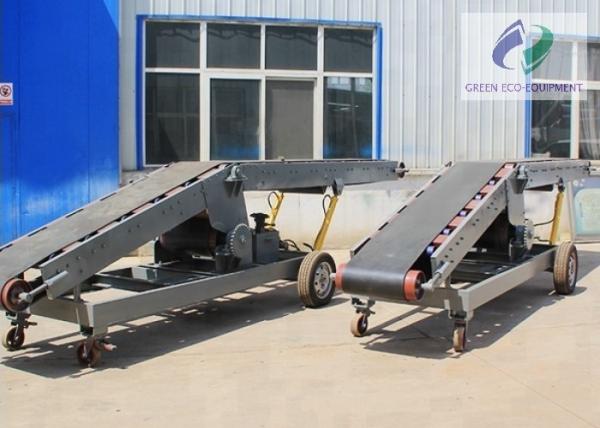

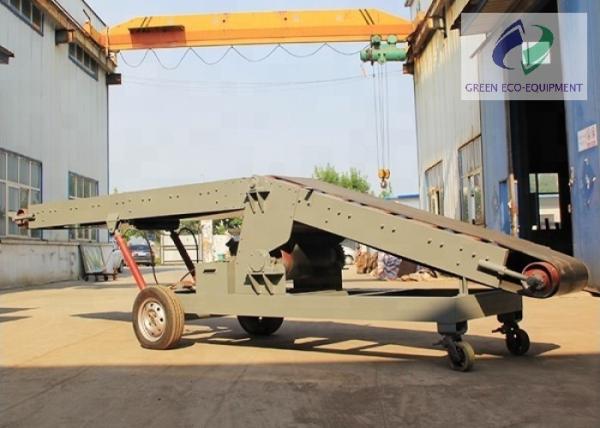

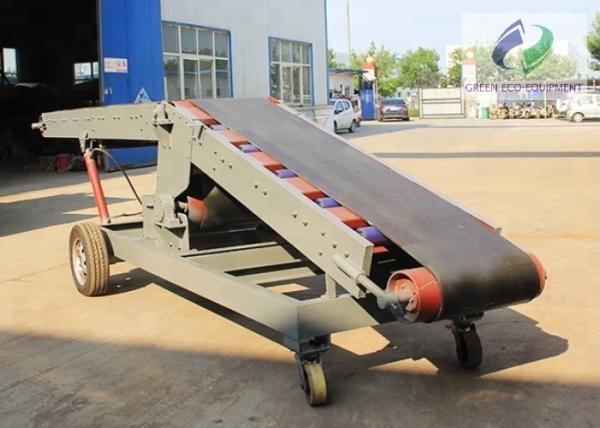

Single-wing Hydraulic Lifting Mobile Belt Conveyor For Truck Loading

Product Description

DY type single-wing hydraulic lifting mobile belt conveyor is a kind of the most commonly and flexible conveying equipment. The lifting height can be adjusted through the hydraulic system control, so as to meet the different lifting height requirements. It can be widely used in chemical industry, coal, mine, electrical department, light industry, grain, transportation department etc. It is suitable for conveying various materials in granular or powder. The bulk density should be 0.5~2.5t/m3. It can be also used in conveying packed bags or cartons.

Mobile belt conveyor consists of main body of metal frame, pulleys, rollers, belt, motor, reducer and control pannel, hydraulic system, etc.

Driving mode: gear motor or electric roller.

Belt material: rubber, plastics, PVC, PU or other materials.

Frame material: carbon steel, stainless steel, or aluminum.

Single Wing Hydraulic Lifting Mobile Belt Conveyor , Truck Loading Belt Conveyor

Main Parameters

Item DY400 DY500 DY650 DY800 DY1000
Belt width(mm) 400 500 650 800 1000
Length(m) 3~25
Belt speed(m/s) 0.4~1.25
Lifting height(m) 1.2~9.7
Conveying capacity t/h 40~80 70~145 130~265 200~330 320~500
pcs/h 800 1400 2600 3000 3500


Main Advantages

1. Simple structure and easy installation.

2. Lifting height can be adjusted to meet the different height requirements, which makes the equipment suitable for more different occasions, so as to avoid unnecessary equipment procurement, and help to save costs.

3. Low rate of breakdown and adapt to different use condition.

4. Various design form can meet different industries.

5. Easy move with special wheels.

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
Single Wing Hydraulic Lifting Mobile Belt Conveyor , Truck Loading Belt Conveyor


Field Usage
Single Wing Hydraulic Lifting Mobile Belt Conveyor , Truck Loading Belt Conveyor
