High Speed Large Capacity Chain Bucket Elevator For Powder And Block Materials
High Speed Large Capacity Chain Bucket Elevator For Powder And Block Materials
High Speed Large Capacity Chain Bucket Elevator For Powder And Block Materials
High Speed Large Capacity Chain Bucket Elevator For Powder And Block Materials
Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/As Customer's Requirement
Condition :
New
Warranty :
2 year
Material :
Carbon Steel
Material Feature :
Heat Resistant
Structure :
Plate Chain Conveyor
Conveying material :
Powder, small granule
Application :
Manufacturing Plant, Construction works , Energy & Mining
After-sales Service Provided :
Field installation, commissioning and training
Description

High-Speed Large Capacity Chain Bucket Elevator For Powder And Block Materials

Product Description

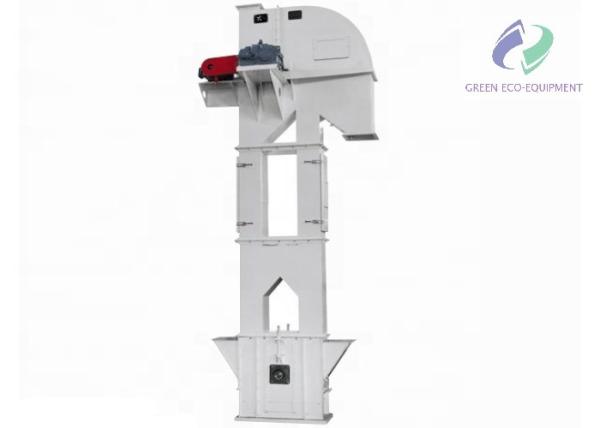

NSE300 High-speed Large Capacity Chain Bucket Elevator is a kind of new vertical hosting equipment which is developed by our company through introducing the similar foreign products and advanced technologies. It is extensively used in transporting powdery and granular materials in building materials, metallurgy, chemical industry, grain storage, electric power and other industries.

Operating Principle

Flow-through feeding: Materials flows into the hopper directly which does not need to excavate materials,so it can reduce mechanical wear. Materials are completely and uniformly taken, that avoid material storage at the bottom. It has great advantages in conveying powdery, granular materials and highly polished materials.

Main Parameters

Model Type Bucket

Maximum

Hoisting

Height(m)

Conveying

Capacity (m3h)

Chain Speed

(m/min)

 Conveying Material
Width (mm) Volume (m3) Distance (mm) Fill Rate (%)
NSE300 500 0.0479 400 65 50 233 50 Powder, Small granule
263 56.4
296 63.4
331 71 Powder

Main Features

Main Features Detailed Description
Large conveying capacity This series of elevators have the largest conveying capacity among similar domestic elevators with conveying capacity of 70-2000m3 /h.
Long Service Life Elevator is subject to flow-through feeding. It is unnecessary to excavate materials with hopper. Avoid any squeeze or collision phenomenon between materials. A little sprinkle at the time of feeding, elevating and unloading is guaranteed in design of the elevator, which reduces mechanical wear. High strength and wear resistant conveying chain is used on Board chain, which greatly prolong service life of chain and bucket. In normal cases, service life of conveying chain are more than 3 years.
Wide Lifting Range The kind of elevators has a few requirements for categories and features of materials, which can be used to lifting powdery and granular materials as well as materials with high abrasiveness and temperature of no lower than 200℃.
Good Operational Reliability Advanced design principles and machining method ensures the reliable operation of entire conveyor, easy operation and convenient maintenance, and a few vulnerable parts. Moreover, mean time to failure is more than 20,000 hours.
Sealing Well Low environmental pollution
Low Comprehensive Cost It has low cost of use due to energy conservation and less maintenance.

Application

NSE Series High-speed Large Capacity Chain Bucket Elevator is extensively used in transporting powdery and granular materials in building materials, metallurgy, chemical industry, grain storage, electric power and other industries.

High Speed Large Capacity Chain Bucket Elevator For Powder And Block Materials

Details Show

High Speed Large Capacity Chain Bucket Elevator For Powder And Block Materials

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intact to our customers.

High Speed Large Capacity Chain Bucket Elevator For Powder And Block Materials
