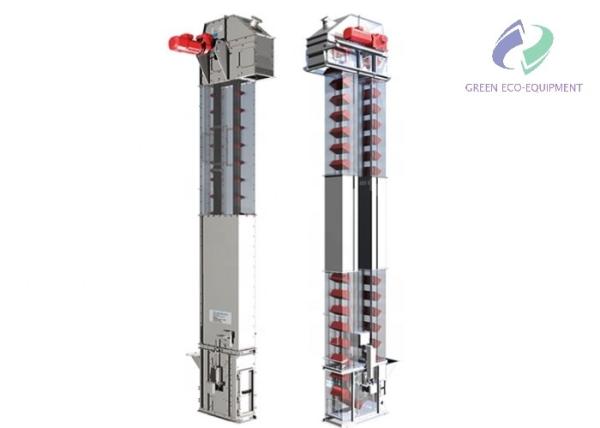

Customized Belt Type Vertical Cement Bucket Elevator Carbon Steel Material
Customized Belt Type Vertical Cement Bucket Elevator Carbon Steel Material
Customized Belt Type Vertical Cement Bucket Elevator Carbon Steel Material
Customized Belt Type Vertical Cement Bucket Elevator Carbon Steel Material
Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Warranty :
2 years
Material Feature :
Heat Resistant
Suitable Material :
Cement, Coal, Chemical, Grain, Gravel, Sand
Hoisting height :
As customer's requirement
Application :
Manufacturing Plant, Farms, Construction works , Energy & Mining
After-sales Service Provided :
Field installation, commissioning and training
Description

Customized Belt Type Vertical Conveyor Bucket Elevator For Cement Gravel

Product Description

Customized Belt Type Vertical Conveyor Bucket Elevator For Cement Gravel is made up of a series of hoppers fixed on belt. It applies to vertically transporting materials, such as Metallic and Non-Metallic ores(Cement, Coal, Sand, Gravel, Limestone, etc.), Food products( Grain, Flour, etc.), Chemical Processing products(Fertilizers, Phosphates, etc.), Pulp and Paper products(Wood Chips, etc.).

Main Parameters

Model TD315
Bucket mode Q Zd Sd
Conveying capacity, m³/h 17 25 35
Bucket volume, L 2 3.8 5.8
Bucket width, mm 315
Bucket distance, mm 400 500 500
Bucket speed, m/s 1.5
Belt width, mm 400
Max. feed size, mm 45
Max. hoisting height, m 40

Q: Shallow bucket: Used for conveying wet, easily caking, difficult to throw out materials, such as wet sand, wet coal, etc.

Zd: Medium-deep bucket: Used for conveying wet and viscous materials, such as sugar, wet fine sand, etc.

Sd: Deep bucket: Used for conveying dry, loose, easily thrown powder or small pieces of materials, such as cement, coal, gravel, etc.

Principle

Vertical Cement Belt Bucket Elevator is composed of machine head, main frame,Maintenance cylinder, vents Ventilators, dustpan, dustpan belt and machine base.

The materials are fed into the machine from the bottom and discharged from the top.

1.Firstly, the materials are evenly fed into the dustpan on the machine base;

2.Secondly, the materials are elevated into the machine head;

3.Thirdly, the raw materials are dumped into the targeted machine.

Main Features

Type TD Type
Structural feature Use rubber belt as traction components
Unloading mode Discharge by centrifugal or hybrid method
Applicable material Powdery, granular and small, non-abrasive or semi-abrasive materials with a loose density less than 1.5t/m³.
Applicable temperature The temperature of materials transported by ordinary rubber belt shall not exceed 60℃, and the temperature shall not exceed 200℃ if by heat-resistant rubber belt.
Others It’s completely enclosed, which can prevent dust from leakage, not be affected by the weather. Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement.Long service life, it seldom occurs extrusion and collision events.

Details Show

Customized Belt Type Vertical Cement Bucket Elevator Carbon Steel Material

Package and Shipment

Customized Belt Type Vertical Cement Bucket Elevator Carbon Steel Material

Project Case

Customized Belt Type Vertical Cement Bucket Elevator Carbon Steel Material
