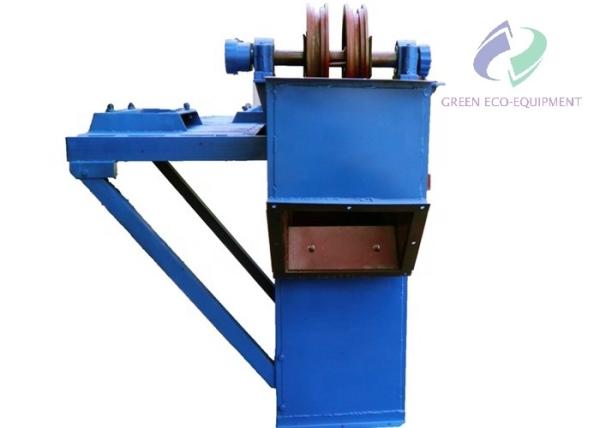

Ring Chain Type Bucket Elevator Conveyor For Cement Sand
Ring Chain Type Bucket Elevator Conveyor For Cement Sand
Ring Chain Type Bucket Elevator Conveyor For Cement Sand
Ring Chain Type Bucket Elevator Conveyor For Cement Sand
Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Condition :
New
Warranty :
1 year
Material :
Carbon Steel
Material Feature :
Heat Resistant
Structure :
Chain Conveyor
Dimension(L*W*H) :
As Customer's Request
Application :
Mining, Coal, Sand, Cement
After-sales Service Provided :
Field installation, commissioning and training
Description

Low Driving Power Vertical Ring Chain Bucket Elevator Conveyor For Cement Sand

Product Description

Bucket elevator is a kind of vertical conveying equipment, widely used in conveying powder, granule and small lump of no rub or small rub (material temperature under 250 oC), such as coal, cement, gravel, sand, fertilizer, food, etc.

Bucket elevator consists of frame, drag part (conveyor chain), hopper, drive wheel (head wheel), feeding inlet (input inlet) and discharging outlet (output outlet). The materials get into the bottom of the elevator through chute, then scooped up by hoppers and elevated to the top along with the conveying chain. After get round the top wheel, the materials turn down into the discharging outlet, thereby conveyed to the required position. The whole process is accomplished inside the frame, preventing the dust floating.

Ring Chain Type Bucket Elevator Conveyor For Cement Sand

Features

1 Wide range of bulk materials can be handled, including powder, granular and block materials .
2 Large capacities for conveying in a compact space .
3 Completely enclosed for dust-tight operation,improve the working conditions and prevent the environmental from being polluted.
4 Reliable electrical device and mechanical safety device .
5 Flexible installation and maintenance .
6 Construction available in carbon steel, stainless steel .

7 Engineered and manufactured to meet specific customer requirements .

Main Parameters

Model Capacity Bucket Round chain Max. feeding Size
width volume pitch speed
(m³) (mm) (L) (mm) (m/s) (mm) (mm)
TH160 8-12 160 1.2 320 1.25 ø8x30 18
TH200 13-22 200 2.1 400 1.25 ø12x40 25
TH250 16-28 250 3.0 500 1.4 ø18x50 32
TH315 21-36 315 4.0 500 1.4 ø18x50 45
TH400 36-56 400 5.9 600 1.4 ø18x50 55
TH500 45-70 500 9.3 688 1.5 ø22x86 75
TH630 68-110 630 14.6 920 1.5 ø22x86 85
TH800 87-140 800 23.3 920 1.5 ø26x92 100

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

Ring Chain Type Bucket Elevator Conveyor For Cement Sand

Project Site

Ring Chain Type Bucket Elevator Conveyor For Cement Sand
