Powder Granule Stainless Steel Screw Auger Conveyor With Hopper
Powder Granule Stainless Steel Screw Auger Conveyor With Hopper
Powder Granule Stainless Steel Screw Auger Conveyor With Hopper
Powder Granule Stainless Steel Screw Auger Conveyor With Hopper
Specifications
Brand Name :
Green Eco-Equipment
Model Number :
LS315
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Condition :
New
Warranty :
1 year
Material :
Carbon Steel/Stainless Steel
Voltage :
220V/380V/As cuntomer's request
Material Feature :
Heat Resistant
Structure :
Conveyor System
Dimension(L*W*H) :
As Customer's Request
Feature :
Easy Operation
Application :
Manufacturing Plant, Grain Storage, Chemical Industry
After-sales Service Provided :
Field installation, commissioning and training
Product name :
Hopper Screw Auger Conveyor
Description

Powder Granule Stainless Steel Hopper Screw Auger Conveyor


Product Description


Hopper Screw Auger Conveyor is a kind of conveying equipment widely used in chemical, building materials, grain and other departments. It is mainly used to transport powder, granular and small block materials. It is not suitable for conveying materials that are prone to deterioration, viscous and agglomerate.

Powder Granule Stainless Steel Screw Auger Conveyor With Hopper

Main Parameters

Specification technical performance drive drive weight
(kg)
diameter length
(m)		 production(cement)
(t/h)		 speed
(min-1)		 Reducer Electric motor
model Ratio power
(kw)
GX200 10 9 60 ZQ250 23.34 1.1 726
GX200 20 9 60 ZQ250 23.34 1.5 1258
GX250 10 15.6 60 ZQ250 23.34 2.2 960
GX250 20 15.6 60 ZQ250 23.34 3 1750
GX300 10 21.2 60 ZQ350 23.34 3 1373
GX300 20 21.2 60 ZQ350 23.34 4 2346
GX400 10 51 60 ZQ400 23.34 5.5 1911
GX400 20 51 60 ZQ500 23.34 11 2049
GX500 10 87.5 60 ZQ400 23.34 7.5 2381
GX500 20 87.5 60 ZQ650 23.34 18.5 5389
GX600 10 134.2 45 ZQ750 23.34 22 3880
GX600 10 134.2 45 ZQ850 23.34 55 7090


Main Features

1. The structure is relatively simple and the cost is low.
2. Reliable work and easy maintenance and management.
3. Compact size, small cross-sectional size, small footprint. It is easy to enter and exit hatches and carriages during the unloading and unloading operations at the port.
4. It can realize sealed conveyance, which is beneficial to convey easily flying, hot and odorous materials, can reduce environmental pollution, and improve the working conditions of port workers.
5. Easy to load and unload. The horizontal screw conveyor can be loaded and unloaded at any point on its conveyor line; the configuration of the vertical screw conveyor can have excellent reclaiming performance relative to the screw reclaimer.

Powder Granule Stainless Steel Screw Auger Conveyor With Hopper

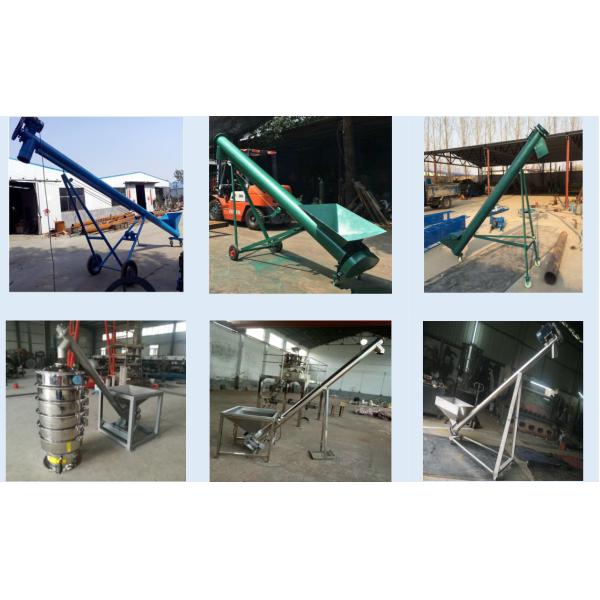

Customer Case of screw conveyor

Powder Granule Stainless Steel Screw Auger Conveyor With Hopper
