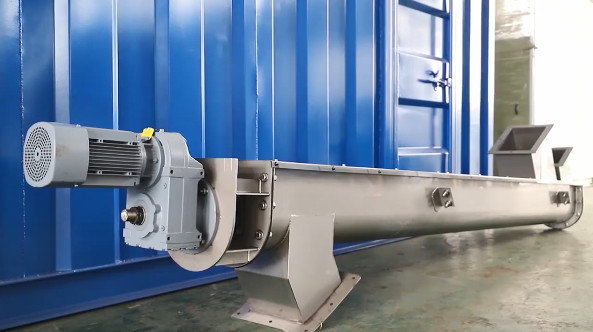

Sewage Treatment Shaftless Screw Conveyor System 25m
Sewage Treatment Shaftless Screw Conveyor System 25m
Sewage Treatment Shaftless Screw Conveyor System 25m
Sewage Treatment Shaftless Screw Conveyor System 25m
Specifications
Brand Name :
Green Eco-Equipment
Model Number :
WLS400
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Condition :
New
Material :
Carbon Steel/Stainless Steel
Voltage :
220V/380V/As cuntomer's request
Structure :
Conveyor System
Dimension(L*W*H) :
As Customer's Request
Max. Length :
25m
Application :
Manufacturing Plant, Construction works , Energy & Mining
After-sales Service Provided :
Field installation, commissioning and training
Product name :
Shaftless Screw Conveyor
Description

Conveyor System Sewage Treatment Equipment Shaftless Screw Conveyor


Product Description

Shaftless screw conveyors are spiral bulk material transportation systems that convey raw

ingredients to and from processing areas that are on different levels of a facility. These

conveyors can horizontal transport materials, also it can slanted at different angles to

economically elevate and convey materials up and down floors. They require ample space

and an increased amount of power to lift the material, depending on the steepness of the angle.

Sewage Treatment Shaftless Screw Conveyor System 25m


Main Parameters

Model WLS150 WLS200 WLS250 WLS300 WLS400 WLS500
Screw diameter(mm) 150 184 237 284 365 470
Thickness of screw blade 14/20mm 14/20mm 16/20mm 18/20mm 18/20mm 18/20mm
Thickness of liner board 8-10mm 10mm 10mm 10mm 10mm 10mm
Diameter of shell 180 219 273 351 402 500
Operating angle(α) 0-45° ≤30° ≤30° ≤30° ≤30° ≤30°
Max delivery length(m) 12 13 16 18 22 25
Capacity(t/h) 2.4 7 9 13 18 28


Motor

 Model L≤7 Y90L-4 Y100L1-4 Y100L2-4 Y132S-4 Y160M-4 Y160M-4
Power 1.5 2.2 3 5.5 11 11
Model L>7 Y100L1-4 Y100L2-4 Y112M-4 Y132M-4 Y160L-4 Y160L-4
Power 2.2 3 4 7.5 15 15

Features of Shaftless screw conveyors

1) The structure is simple, compact, low cost in production, easy maintenance and low in cost;

2) Because it is made of seamless pipe, the sealing effect is good, so it is suitable for easy flying, hot materials, toxic and odorous materials;

3) It is possible to feed more material and big discharge.

4) It has stirring, mixing and cooling operations;

Application

The Shaftless screw conveyors are the ideal solution for hard-to-transport materials ranging from irregularly shaped dry solids such as scrap wood and metals, to semiliquid and sticky materials including pulp, compost, food-processing waste, hospital waste, and wastewater products.

Customer Case


Sewage Treatment Shaftless Screw Conveyor System 25m
