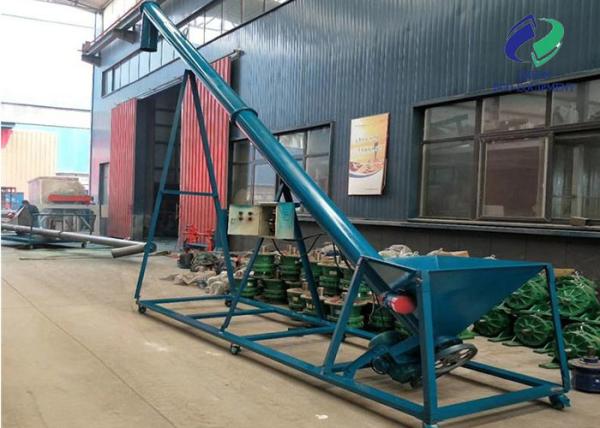

304 Stainless Steel Particle Screw Conveyor For Powder Coffee
304 Stainless Steel Particle Screw Conveyor For Powder Coffee
304 Stainless Steel Particle Screw Conveyor For Powder Coffee
304 Stainless Steel Particle Screw Conveyor For Powder Coffee
Specifications
Brand Name :
Green Eco-Equipment
Model Number :
LS315
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Condition :
New
Warranty :
1 year
Material :
Carbon Steel/Stainless Steel
Voltage :
220V/380V/As cuntomer's request
Material Feature :
Heat Resistant
Structure :
Conveyor System
Dimension(L*W*H) :
As Customer's Request
Feature :
Easy Operation
Application :
Manufacturing Plant, Grain Storage, Chemical Industry
After-sales Service Provided :
Field installation, commissioning and training
Product name :
Particle Screw Conveyor
Description

Factory Direct 304 Stainless Steel Powder Coffee Screw Conveyor Particle Screw Conveyor


Product Description
Screw conveyor is used in many industries, such as building materials, chemical engineering, coal, grain and oil, fodder. It is suitable for horizontal or inclined conveyor powdery, granulous and small block material, such as grain, dinas, coal, flour, cement, chemical fertilizer and so on.

It can't convey material which is easy to metamorphic, sticky, agglomeration; Using temperature of environment is -20~50℃,conveying material temperature is ≤200℃.

304 Stainless Steel Particle Screw Conveyor For Powder Coffee

Main Parameters

Model
100
160
200
250
315
500
630
800
1000
Screw-pitch
100
160
200
250
315
400
450
500
560
Speed(r/min)
140
112
100
90
80
63
50
40
32
Capacity(m3/h)
2.2
7
13
22
31
98
140
300
280


Main Features

1. The structure is relatively simple and the cost is low.
2. Reliable work and easy maintenance and management.
3. Compact size, small cross-sectional size, small footprint. It is easy to enter and exit hatches and carriages during the unloading and unloading operations at the port.
4. It can realize sealed conveyance, which is beneficial to convey easily flying, hot and odorous materials, can reduce environmental pollution, and improve the working conditions of port workers.
5. Easy to load and unload. The horizontal screw conveyor can be loaded and unloaded at any point on its conveyor line; the configuration of the vertical screw conveyor can have excellent reclaiming performance relative to the screw reclaimer.


Customer Case of screw conveyor

304 Stainless Steel Particle Screw Conveyor For Powder Coffee

Application

Partical screw conveyor mainly applicable to food such as: salt, food additives, milk powder, soy milk powder, flour, sugar and so on.Chemical, cellulose, rubber powder, all kinds of chemical powder particles.
