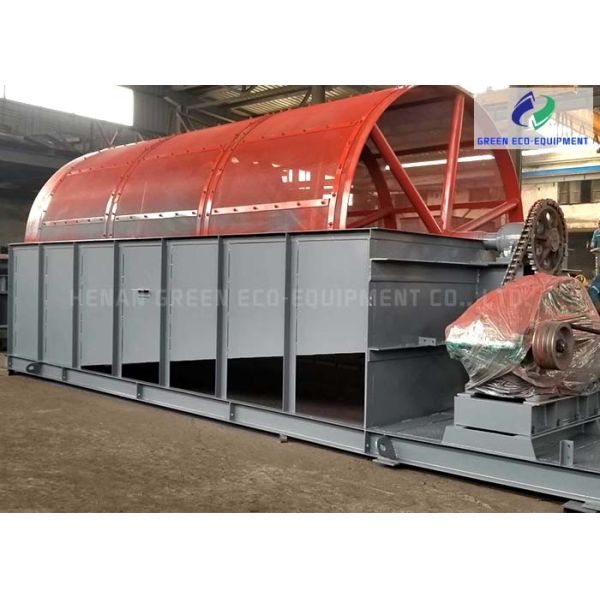

Carbon Steel Trommel Screen Machine Sawdust Cylinder Shaker 16r/Min
Carbon Steel Trommel Screen Machine Sawdust Cylinder Shaker 16r/Min
Carbon Steel Trommel Screen Machine Sawdust Cylinder Shaker 16r/Min
Carbon Steel Trommel Screen Machine Sawdust Cylinder Shaker 16r/Min
Specifications
Brand Name :
Green Eco-Equipment
Model Number :
YTS1200
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Condition :
New
Material :
Carbon Steel
Max. Particle Size :
90mm
Product Type :
cylinder rotary screen
Application :
Gold plant, mining, gravel, chemicals, coal
Length :
2~6m
Drum speed :
16r/min
After-sales Service Provided :
Field installation, commissioning and training
Key word :
Sawdust Shaker
Description

Trommel Screen Machine High Yield And Easy Operation Sawdust Shaker

Product Description

Sawdust shaker is sieving cylinder, which is composed of several circular screen, the whole body is slant on theground. External is sealed by the cowling in order to avoid dust. Through rolling, the materials are separated from top to bottom,and the fine material is discharged from the front and the block is discharged from bottom.

Main Parameters

Model Length Range Segment No. Aperture Size Power
(Kw)		 Inclined Angle Max. Material Size Rotating Speed(rpm)
YTS600 2-4m 1-2 5-35mm 2.2-3 0-7° 50mm 15-18
YTS800 2-5m 1-3 5-40mm 3-5.5 0-7° 60mm 15-18
YTS1000 2-6m 1-4 5-50mm 4-7.5 0-7° 80mm 15-18
YTS1200 3-8m 1-4 5-60mm 5.5-11 0-7° 100mm 15-18
YTS1500 3-10m 1-5 5-60mm 7.5-1 5 0-7° 150mm 15-18
YTS2000 4-12m 1-5 5-75mm 7.5-l 8.5 0-7° 180mm 15-18
YTS2500 5-12m 1-6 5-90mm 11-l 8.5 0-7° 200mm 15-18

Applications

It is widely used for mining sieving and construction waste, as well as many other kinds of materials, for example: compost, agriculture waste recycling, river sand, ore, refractory materials, grape pomace, chemical etc. It provides a simple, efficient and economical solution to upgrade a wide range of material. This screening method helps reduce operating and investment costs, improves product quality, and allows for fast and high-volume processing.

Carbon Steel Trommel Screen Machine Sawdust Cylinder Shaker 16r/Min

Features

1. Mixing equably and running steadily;
2. Little shock vibration;
3. Easy installation and maintenance;
4. Conveniently fixed or placed on ground only.
5. Configured for classification, screening and grading

Details Show

Carbon Steel Trommel Screen Machine Sawdust Cylinder Shaker 16r/Min

Field Usage

Carbon Steel Trommel Screen Machine Sawdust Cylinder Shaker 16r/Min
