Foundry Industry Apron Chain Conveyor Handling Impact Material
Foundry Industry Apron Chain Conveyor Handling Impact Material
Foundry Industry Apron Chain Conveyor Handling Impact Material
Foundry Industry Apron Chain Conveyor Handling Impact Material
Specifications
Brand Name :
Green Eco-Equipment
Model Number :
WBL800
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Product name :
Apron Chain Conveyor
Material :
Cast Steel
Voltage :
220V/380V/As Customer's Request
Material Feature :
Heat Resistant
Capacity(t/h) :
20-800t/h
Dimension(L*W*H) :
As Customer's Request
Type :
Apron feeder
Suitable Material :
Cement, Coal, Gravel, Stone
Application :
Construction works, Mining, Power Plant, Metallurgical Industry
Warranty :
2 Years
After-sales Service Provided :
Field installation, commissioning and training
Description

Foundry Industry Apron Chain Conveyor Handling Impact Material

Product Description

Apron Chain Conveyor is widely used in building material, metallurgy, electric power, coal, chemical industry, foundry industry, etc. Especially suitable for the conveying of high temperature, large blocks, with sharp edges and wear resistance strong solid material In the cement industry, the best choice for shaft kiln clinker conveying.

Foundry Industry Apron Chain Conveyor Handling Impact Material

Advantages

1. The apron feeder is widely used in conveying metal ,limestone, gold ore and construction waste,gypsum, etc.

2. It can bear big pressure under small silo or loader.

3. The speed can be adjusted by frequency conversion control cabinet.

4. Adopting the feed trough, to prevent the material leakage.

5. The thickness of plate is from 8mm to 20mm.

6. It can be matched with ABB, Siemens, Flender and SEW etc if required.

7. Can be customized.

Foundry Industry Apron Chain Conveyor Handling Impact Material

Main Parameters

Model Plate width Head to tail shaft center distance Speed Feed size Capacity Power Reference weight
(mm) (mm) (m/s) (mm) (t/h) (kw) (kg)
WBL100-6 1000 6000 0.01-0.15 ≤500 ≤300 18.5 15000
WBL120-6 1200 6000 0.01-0.15 ≤600 ≤400 22 16000
WBL125-6 1250 6000 0.01-0.15 ≤600 ≤450 22 18000
WBL140-8 1400 8000 0.01-0.15 ≤700 ≤500 30 29000
WBL150-10 1500 10000 0.01-0.15 ≤1200 ≤800 37 49000

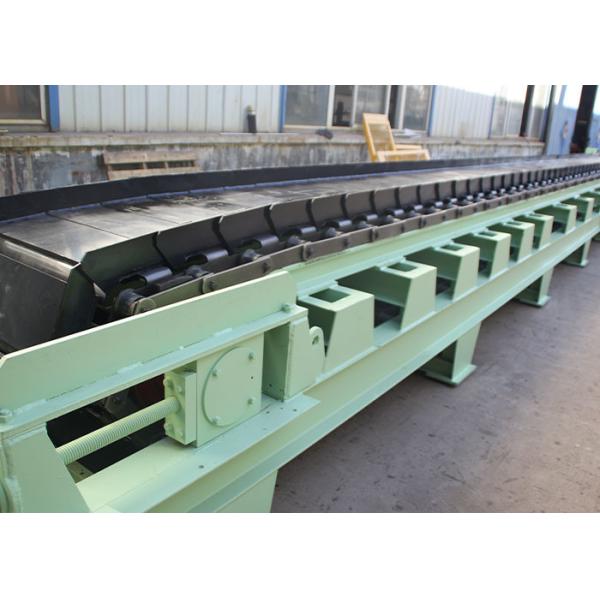

Detailed photo

Foundry Industry Apron Chain Conveyor Handling Impact Material

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

Foundry Industry Apron Chain Conveyor Handling Impact Material

Project Case

Foundry Industry Apron Chain Conveyor Handling Impact Material

Cooperate Customer

Foundry Industry Apron Chain Conveyor Handling Impact Material
