Heavy Duty Mining Industrial Apron Feeder For Cement Construction Aggregates
Heavy Duty Mining Industrial Apron Feeder For Cement Construction Aggregates
Heavy Duty Mining Industrial Apron Feeder For Cement Construction Aggregates
Heavy Duty Mining Industrial Apron Feeder For Cement Construction Aggregates
Specifications
Brand Name :
Green Eco-Equipment
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Material :
Cast Steel
Material Feature :
Heat Resistant
Structure :
Conveyor System
Type :
Apron feeder
Suitable Material :
Cement, Coal, Gravel
Application :
Construction works, Mining, Power Plant, Metallurgical Industry
Warranty :
2 Years
After-sales Service Provided :
Field installation, commissioning and training
Key words :
Apron Feeder
Description

Heavy Duty Mining Industrial Big Stone Apron Feeder For Coal Iron Ore Cement Construction Aggregates

Product Description

The newly redesigned Apron Feeders from Green Eco.Equipment easily handle high-impact feeds of heavy, coarse and sharp materials from trucks, surge piles, bins, and hoppers – as they provide a controlled flow of the material to the next stage in the process.

Heavy Duty Mining Industrial Apron Feeder For Cement Construction Aggregates

Main Parameters

Model

Plate width

(mm)

 Head to tail shaft center distance(mm)

Particle size

(mm

Speed

(m/s)

Capacity

(t/h)

Power

(kw)

Reference weight

(kg)
WBQ500-2 500 2000 7-88 0.05-0.4 <50 1.1-3 2500

WBQ500-

6

 500 6000 7-88 0.05-0.4 <50 1.1-3 4000
WBQ500-12 500 12000 7-88 0.05-0.4 <50 1.5-4 5600

WBQ630-

3

 630 3000 11-175 0.04-0.4 <100 1.5-4 4700
WBQ630-15 630 15000 11-175 0.04-0.4 <100 2.2-5.5 9000
WBQ800-6 800 6000 19-308 0.04-0.4 <350 2.2-5.5 5200

Besides the standardized apron feeders, Green Eco.Equipment supplies customized design for heavy duty apron feeders to meet special requirements resulting from conditions given by material, capacity and geometry.

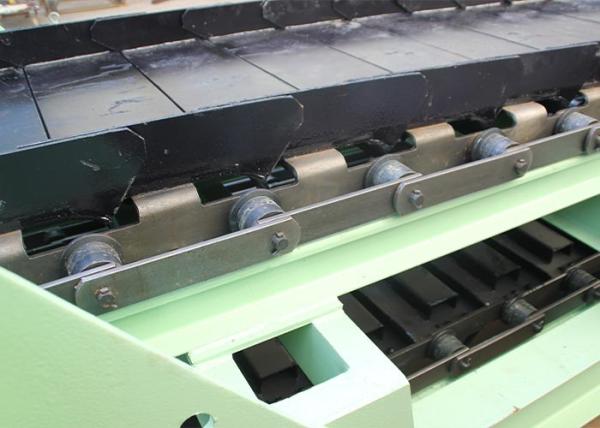

Details Photo

Heavy Duty Mining Industrial Apron Feeder For Cement Construction Aggregates

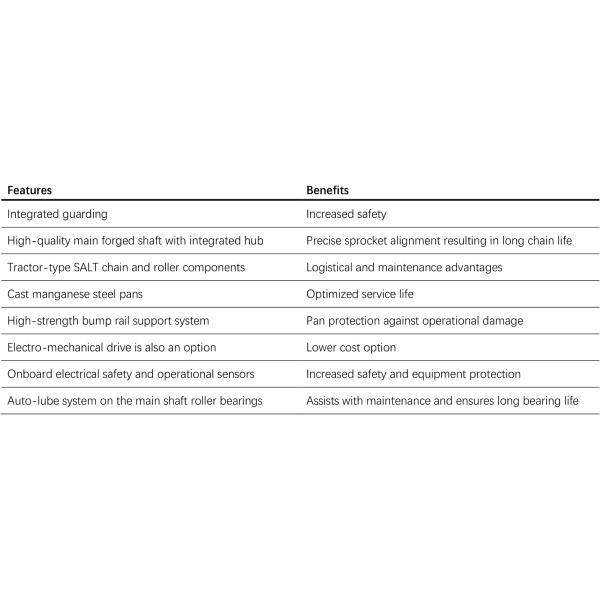

Main Features

Heavy Duty Mining Industrial Apron Feeder For Cement Construction Aggregates

Application

Mining

Our products are developed to cope with the most difficult minerals and materials in the mining industry.

Aggregates

The apron feeder is a reliable feeding method for raw minerals such as construction aggregates.

Crusher Feeding

Apron feeders from Tianyu covers full range of materials such as cement, iron ore, coal, limestone and so on.

Industrial Minerals

The apron feeder is also designed to process industrial waste from paint and plastics to glass and electronics.

Heavy Duty Mining Industrial Apron Feeder For Cement Construction Aggregates

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

Heavy Duty Mining Industrial Apron Feeder For Cement Construction Aggregates
