Specifications
Brand Name :
Green Eco-Equipment
Model Number :
WBL800
Certification :
ISO9001:2008/CE
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
10~15 work days after receiving fullpayment.
Packaging Details :
In Bulk/Tray/Wooden Case/As Customer's Requirement
Product name :
Apron Feeder Conveyor
Material :
Cast Steel
Voltage :
220V/380V/As Customer's Request
Material Feature :
Heat Resistant
Capacity(t/h) :
20-800t/h
Dimension(L*W*H) :
As Customer's Request
Type :
Apron feeder
Suitable Material :
Cement, Coal, Gravel, Stone
Application :
Construction works, Mining, Power Plant, Metallurgical Industry
Warranty :
2 Years
After-sales Service Provided :
Field installation, commissioning and training
Description

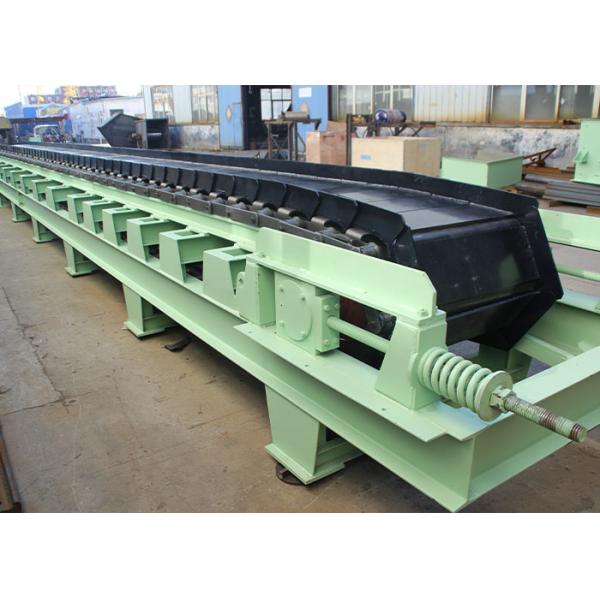

Apron Feeder Conveyor Mining Industry Apron Feeder For Clinker Limestone

Product Description

Medium Duty Apron Feeder is widely used in building material, metallurgy, electric power, coal, chemical industry, foundry industry, etc. Especially suitable for the conveying of high temperature, large blocks, with sharp edges and wear resistance strong solid material In the cement industry, the best choice for shaft kiln clinker conveying.

Mining Industry Apron Feeder Conveyor For Clinker Limestone

Advantages

1. The apron feeder is widely used in conveying metal ,limestone, gold ore and construction waste, gypsum, etc.

2. It can bear big pressure under small silo or loader.

3. The speed can be adjusted by frequency conversion control cabinet.

4. Adopting the feed trough, to prevent the material leakage.

5. The thickness of plate is from 8mm to 20mm.

6. It can be matched with ABB, Siemens, Flender and SEW etc if required.

7. Can be customized.

Mining Industry Apron Feeder Conveyor For Clinker Limestone

Main Parameters

Model Plate width Head to tail shaft center distance Speed Feed size Capacity Power Reference weight
(mm) (mm) (m/s) (mm) (t/h) (kw) (kg)
WBL100-6 1000 6000 0.01-0.15 ≤500 ≤300 18.5 15000
WBL120-6 1200 6000 0.01-0.15 ≤600 ≤400 22 16000
WBL125-6 1250 6000 0.01-0.15 ≤600 ≤450 22 18000
WBL140-8 1400 8000 0.01-0.15 ≤700 ≤500 30 29000
WBL150-10 1500 10000 0.01-0.15 ≤1200 ≤800 37 49000

Mining Industry Apron Feeder Conveyor For Clinker Limestone

Why choose us?

1. Factory direct sale: No middlemen, no discount on service, help to save time, as well as money for you.

2. An excellent R&D team: A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.

3. Strict quality control: Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.

4. Good after-sale service:

a.Provide installation plan guidance.

b.2 hours for after-sales response, 24 hours for solution.

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

Mining Industry Apron Feeder Conveyor For Clinker Limestone

Project Case

Mining Industry Apron Feeder Conveyor For Clinker Limestone

Cooperate Customer

Mining Industry Apron Feeder Conveyor For Clinker Limestone
