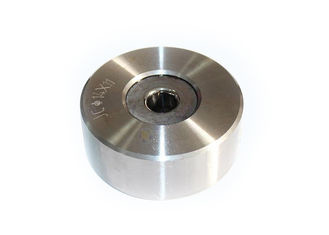

Zhuzhou Weiye Cemented Caribde Drawing Dies Tungsten Carbide Drawing Dies With Virgin Carbide

About Us: Zhuzhou Weiye Cemented Carbide Industrial Co., Ltd is a professional manufacturer producing premium and high quality cemented carbide products, founded in 2001 and locates in the National High & New-Tech Development Zone in Zhuzhou city of China. We are a provincial high-tech enterprise specializing in development, production, and sales of cemented carbides.

Our Main Products Catagory: Cemented carbide drawing dies & punches | Carbide strips & plates | Carbide cutting tools Inserts & tips | Carbide seal rings | Carbide molds & extrusion dies | Carbide wear parts | Carbide mining tools & buttons | Various non-standard carbide products | Solid carbide rods & disc blades. Our main products include carbide rods, carbide bars, forging die cores, disc cutters, carbide plates and boards, rock drilling bits and buttons etc. The products have been sold to more than 20 countries and regions such as South America, Europe, USA, the Middle East and so on, and the Company has received plenty of favorable comments from our customers.

YG6X: it can be used to make steel wire, non-ferrous metal wire or bar material with less than 6.0mm diameter.

YG6: it can be used for steel wire, non-ferrous metal and alloy bars under 20mm diameter, and can be also used for drawing pipes with diameter of less than 10mm.

YG8, YG8.2, YG8C: can be used in steel, non-ferrous metal and alloy bars and pipes, also can be used in manufacturing machinery parts, tools and vulnerable parts.

YG11, YG15, YL50: it can be used for high compression steel rod and steel pipe drawing, and the top hammer, perforation and stamping die of working under great stress.

YG20: it can be used for stamping die, such as punching watch parts, stamping battery shell, tooth

paste mould, small size steel ball, screw, nut, etc.

YG20C,TL40.5: it can be used in standard parts, bearings, tools and other industries for cold forging, cold pressing mould, warhead and shell stamping dies.

Physical Property:

Tungsten carbide dies can be divided into four categories according to use:

1. Tungsten carbide anvil

2. Tungsten carbide drawing dies (such molds accounted for the vast majority of tungsten carbide die.)

3. Cold heading, cold punching, forming and shaping dies

4. Non-magnetic die

5. Hot tungsten carbide dies

Several issues to consider when designing tungsten carbide die

1. Selected part object. It must have a high yield, good structural shape, quality and dimensional accuracy to meet the requirements, blanking part thick and other characteristics.

2. Rational use of tungsten carbide. For the most likely to wear on the parts need to analysis, if necessary, all the bottom and upper of die should use tungsten carbide. In some cases, such as structurally weak punch difficulty processing or fixed yet, you can use a reasonable tool steel and cemented carbide used in combination so that the mold manufacture and use must be the most reasonable and economical.

3. Convex and concave mold structure. In the tungsten carbide die processing conditions allowed, tungsten carbide mosaic structure more economical, easy to process and easy repairs in the overall structure of materials and processing.
