HIP Sintered YG6 YG8 YG10 Tungsten Carbide Round Bar
HIP Sintered YG6 YG8 YG10 Tungsten Carbide Round Bar
HIP Sintered YG6 YG8 YG10 Tungsten Carbide Round Bar
HIP Sintered YG6 YG8 YG10 Tungsten Carbide Round Bar
HIP Sintered YG6 YG8 YG10 Tungsten Carbide Round Bar
HIP Sintered YG6 YG8 YG10 Tungsten Carbide Round Bar
HIP Sintered YG6 YG8 YG10 Tungsten Carbide Round Bar
HIP Sintered YG6 YG8 YG10 Tungsten Carbide Round Bar
HIP Sintered YG6 YG8 YG10 Tungsten Carbide Round Bar
HIP Sintered YG6 YG8 YG10 Tungsten Carbide Round Bar
Specifications
Brand Name :
WEIYE
Model Number :
Customized
Certification :
ISO9001
Place of Origin :
Zhuzhou, Hunan，China（mainland）
MOQ :
10 PCS
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10000PCS per month
Delivery Time :
10-15 days
Packaging Details :
Plastic Box, or Paper Cartons, Cartons Cases for Export
Description

YG6 YG8 YG10 VIRGIN CARBIDE MATERIAL HIP SINTERED CARBIDE RODS 100% VIRGIN TUNGSTEN CARBIDE

Tungsten Carbide Rod

Material: 100% Virgin Tungsten Carbide

Diameter: 1-46mm

Surface: Blank, grounded or mirror polished

Process: extruded, HIP sintered

Application: For making tools, end mills, drills etc.

Grade: K10 YG6 K20 YG8 YG10X YL10 YG12 YG15

Chemical Composition: tungsten carbide and cobalt powder

Model No.: All sizes available

Length: 10-330mm

Packaging Details Paper or plastic box inside, carton outside; Or as per customers' requirement.

Product Name: Tungsten carbide rods

Diameter: 1-46mm (by HIP Extrusion)

Standard Length: 310/330mm, non-standard length also available

Widely used in end mills, drills, PCB drills, PCB routers etc.

Speciications:

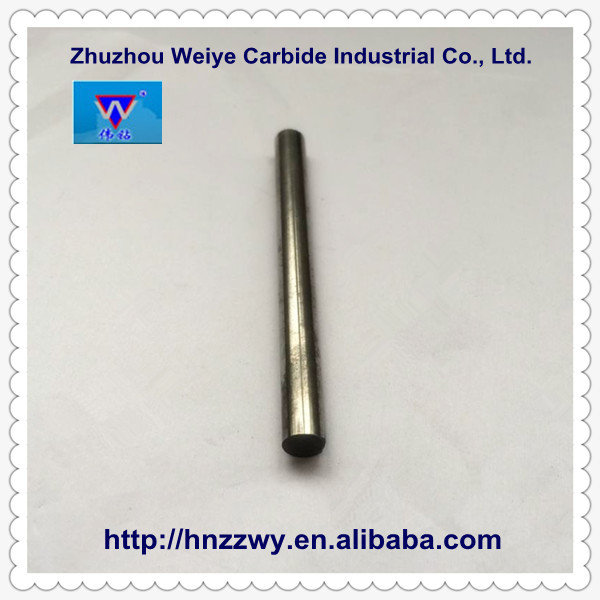

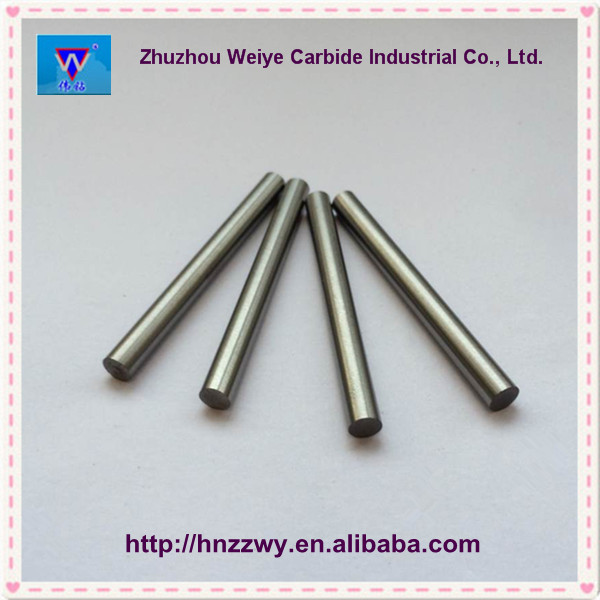

Below are the product picture and drawing of polished tungsten carbide rods for your reference. For more details, please inform us.

Tungsten carbide Rods
Type: Diameter x Length
Size:(D.x L,mm) Tolerance
D(Black,mm) D(Ground,mm) L(mm)
Dia.1-5mm x 330 +0.30/+0.45 h6/h7 0/+5
Dia.6-20mm x 330 +0.20/+0.60 h6/h7 0/+5
Dia.21-40mm x 330 +0.20/+0.80 h6/h7 0/+5

Our Advantage:

- Competitive price.

- Our strengths over other suppliers.

- Reliable quality on the base of the same price.

- Timely delivery as your requirements.

- Professional service to cut much purchasing costs down.

Grade:

Grade Density(g/cm3) Hardness HRA(HV T.R.S(MPA) Performance & applications Recommended
YG8 14.9 89.5 2150 Good wear resistance, used for hard wood, processing original wood, aluminum section bar, brass rod and cast iron.
YG6 14.6 89 2320 Suitable for the roughening of cast iron and light alloy and also for the milling of cast iron and low-alloy steel.
YG11 14.4 87.5 2260 Medium grain, for wear parts and mining tools
YG15 14.1 86.5 2400 Medium grain, for mining tools, cold heading and punching dies
YS2T 14.45 92.5 2800 Fine carbide, high wear resistance, high bending strength, high resistance to bonding, high thermal strength. machining of refractory alloys, stainless steel and high manganese steel, etc. Mainly used for disc cutter and other tools.
YL10.2 14.5 92.5 3400 Wear resistance and strength comparatively higher, suitable for processing cast iron. non-ferrous metal and non-metalloid materials.
YN8 14.6 88.5 1710 This grade with 8% nickel binder, it has good wear resistance & corrosion resistance performance, especially used for high pressure environmental, also good for cutting titanium alloy.

1), packaging with moisture-proof paper

2), packaging with kraft paper or white paper

3), packaging with foam plastics in all side of plywood case.

4), packing products in plywood case


HIP Sintered YG6 YG8 YG10 Tungsten Carbide Round BarHIP Sintered YG6 YG8 YG10 Tungsten Carbide Round BarHIP Sintered YG6 YG8 YG10 Tungsten Carbide Round BarHIP Sintered YG6 YG8 YG10 Tungsten Carbide Round Bar
