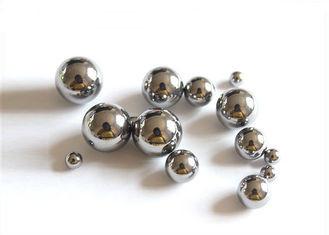

YG6 / YG8 Grade Tungsten Carbide Ball 13.86 - 37.24mm High Density Wear Resistance
YG6 / YG8 Grade Tungsten Carbide Ball 13.86 - 37.24mm High Density Wear Resistance
Specifications
Brand Name :
Weiye
Model Number :
customized
Certification :
ISO9001:2008
Place of Origin :
Zhuzhou，Hunan，China（mainland）
MOQ :
10 pice
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
30000 pices per month
Delivery Time :
20-30 days depend on quantity
Packaging Details :
Meeting customers's requirement
Material :
tungsten carbide
Density :
14.8-15.0
HRA :
90.1
chemical :
W+Co
Quality certification: :
ISO9001:2008
Sample :
Samples Offered
Description

With Good Corrosion Resistance Tungsten Carbide Bearing Ball In Hard Environment

The common grades of cemented carbide balls are YG3, YG6, YG6X, YG8, YG8X,YG13. The most common are YG6 and YG8.

Grade

Density

g/cm³

Classic data
HRA(≥)

TRS

N=mm²

YG614.8-15.090.12000
YG814.6-14.889.52000


Specification:

No.TypeDiameter
/mm		unit
113.8613.86pice
213.86513.865pice
313.8713.87pice
415.6315.63pice
515.6515.65pice
614.0414.04pice
710.6110.61pice
810.610.6pice
98.28.2pice
108.2058.205pice
118.1958.195pice
1213.1913.19pice
1313.213.2pice
1413.0513.05pice
1512.2112.21pice
1612.2212.22pice
1718.818.8pice
1817.0217.02pice
1917.0617.06pice
2024.624.6pice
2124.6224.62pice
227.417.41pice
233.663.66pice
246.976.97pice
2525.925.9pice
2627.5227.52pice
2729.1429.14pice
2830.7630.76pice
2932.3832.38pice
303434pice
3137.2437.24pice


Reference Illustrate:

Composition
The cemented carbide ball is based on a high hardness refractory metal carbide (WC, TiC) micron powder, with cobalt (Co) or nickel (Ni), molybdenum (Mo) as a binder, in a vacuum furnace or Powder metallurgy products sintered in a hydrogen reduction furnace, currently available in the series of hard alloys YG, YN, YT, YW.
Category
Carbide balls mainly include blank balls, fine grinding balls, punching balls, bearing balls, valve balls, non-magnetic balls, Monel balls, through-hole balls, measuring balls, scratching balls, and ball beads.
Grade
YG6 carbide ball. YG6x carbide ball. YG8 carbide ball. YG13 carbide ball. YG20 carbide ball. YN6 carbide ball. YN9 carbide ball. YN12 carbide ball. YT5 hard Alloy ball. YT15 carbide ball.
Feature
Carbide balls have high hardness, wear resistance, corrosion resistance, bending resistance and harsh environment, which can replace all steel ball products. The hardness of the cemented carbide ball is ≥90.5, and the density is 14.9 g/cm3.
Use
Carbide balls are used in a wide range of applications, such as precision punching, precision bearings, instruments, instruments, pens, sprayers, pumps, mechanical parts, sealing valves, brake pumps, punching holes, oil fields, Hydrochloric acid laboratory, hardness measuring instrument, fishing gear, counterweight, decoration, finishing and other high-end industries!
