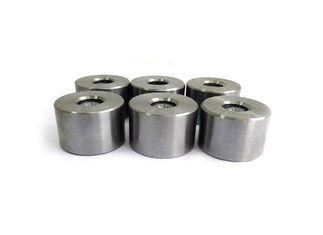

High Hardness Steel Wire Drawing Dies , High Performance Bar Drawing Dies
High Hardness Steel Wire Drawing Dies , High Performance Bar Drawing Dies
Specifications
Brand Name :
Weiye
Model Number :
custom
Certification :
ISO9001：2008
Place of Origin :
Zhuzhou，Hunan，China（mainland）
MOQ :
5 kg
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
40000 kg per month
Delivery Time :
20-30 days
Packaging Details :
Meeting customers' need
material :
wolfram plus cobalt
Item :
tungsten carbide dies
usage :
meeting customer ‘s need
advantage :
strictly control quality
Usage :
For cold heading and cold punching fasteners
Product :
drawing die
Description

Finishing Procession Tungsten Carbide Dies Made In Little Hole For Steel Wire

Hard alloy has high hardness, wear resistance, strength and toughness, good heat resistance, corrosion resistance and a series of excellent properties, especially its high hardness and wear resistance, even in 500℃ temperature is basically unchanged, still has a very high hardness in 1000℃.Hard alloy is widely used as tool material, such as turning tool, milling tool, planing tool, drill
bit, boring tool, etc., for cutting cast iron, nonferrous metal, plastic, chemical fiber, graphite, glass, stone and ordinary steel, also can be used for cutting heat-resistant steel, stainless steel, high manganese steel, tool steel and other difficult to process materials.The cutting speed of the new carbide cutter is hundreds of times that of carbon steel.

Advantages of Tungsten Carbide dies
1. Long service life, reduced mould adjust or replacement time
2. Low rejection rate, high product quality, good inform size
3. Smooth surface of the mould, reduce the grinding process
4. Lower production cost, high economic effciency
5. High dimension accuracy


High Hardness Steel Wire Drawing Dies , High Performance Bar Drawing Dies

Grade and Application:

Grade Hardness(HRA) TRS N/mm2 Density g/cm3 Application recommend
YG6X 92 1800 14.9 it can be used to make steel wire,non-ferrous metal wire or bar material with less
than 6.0mm diameter.
YG6 90.5 2000 14.9 it can be used for steel wire,non-ferrous metal and alloy bars under 20mm diameter,and can be also used for drawing pipes with diameter of less than 10mm.
YG8 90 2200 14.7 can be used in steel,non-ferrous metal and alloy bars and pipes,also can be used in manufactureing machinery parts,tools and vulnerable parts.
YG8.2 89 2000 14.6
YG8L 89 2000 14.6
YG11 88.5 2300 14.4 it can be used fo rhigh compression steel rod and steel pipe drawing,and the top hammer,perforation and stamping die of working under great stress.
YG15 87 2600 14
YL50 87 2600 14.4
YG20 85 2800 13.6 it can be used for stamping die,such as punching watch parts,stamping battery
shell,tooth paste mould,small size steel ball,screw,nut,etc.
YG20C 83.5 2800 13.6 it can be used in standard parts,bearings,tools and other industries for cold forging,cold pressing mould,warhead and shell stamping dies.
TL40.5 82 3000 13.3

High Hardness Steel Wire Drawing Dies , High Performance Bar Drawing Dies
