Specifications
Brand Name :
Weiye
Model Number :
Customized
Certification :
ISO9001：2008
Place of Origin :
Zhuzhou，Hunan，China（mainland）
MOQ :
5 kg
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
40000 kg per month
Delivery Time :
20-30 days
Packaging Details :
Meeting customers' need
material :
WC Co
Item name :
tungsten carbide drawing die
parameter :
customized
usage :
meeting customer ‘s need
advantage :
strictly control quality
shape :
depend on requirement
Description

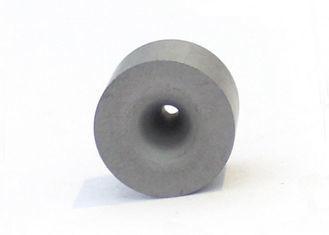

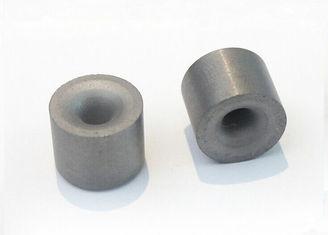

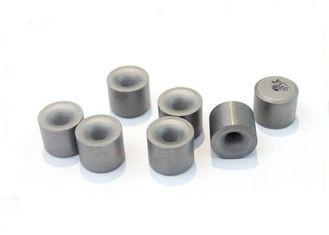

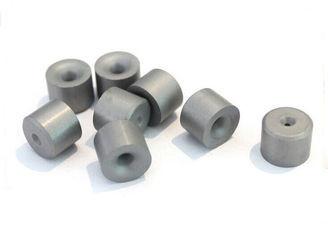

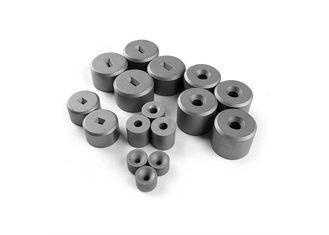

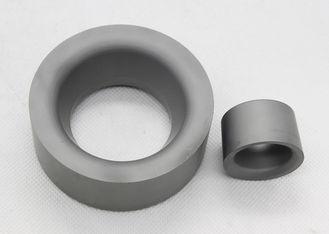

Functioning Well Tungsten Carbide Drawing Dies For Making Small Wires

Grade and Application:
Hard alloy drawing die is widely used for wire drawing. Drawing is a manufacturing process used to reduce or alter the cross section of a wire by using a series of drawing plates or dies. Steel wire drawing, insert a "NIB" inside the steel casting tungsten carbide.

Grade

Density

g/cm³

TRS

Mpa

Hardness

HRA

Usage
YG6X14.95180091.5It is suitable for making drawing die with less than 6.00mm drawing hole
YG614.95190090.5It is used to make drawing dies for non-ferrous metal rods with inner holes less than 20.00mm and pipes with inner holes less than 10.00mm.
YG814.8220089.5Drawing die for drawing steel and non-ferrous metal rods and pipes
YG10 14.514.5240088.5
YG1514280087It is used for making steel rods and pipes with high shrinkage


Parameter of Tungsten Carbide Thread Drawing Die:

Nominal diameter

d/mm

Number of spiral ribs/bardBase circle sizeExternal contour dimensionSingle ribbed sizeHelix rib lead ( c )

Diameter

D1/mm

Diameter tolerance/mm

Diameter

D/mm

Diameter tolerance/mm

Width

a/mm

3.003-42.80±0.053.2±0.050.9-1.324-30
4.003-43.85±0.054.25±0.050.9-1.324-30
4.8044.60±0.055.10±0.051.3-1.728-36
5.0044.80±0.055.30±0.051.3-1.728-36
6.0045.80±0.056.30±0.051.6-2.030-38
6.2546.00±0.056.70±0.051.6-2.030-40
7.0046.73±0.057.46±0.11.8-2.235-45
8.004-67.75±0.058.45±0.12.0-3.440-50
9.004-68.75±0.059.45±0.12.1-3.742-52
10.004-69.75±0.0510.45±0.12.5-4.045-58
11.00610.5±0.0511.6±0.12.5-3.065-80
12.00611.5±0.0512.6±0.13.0-3.575-85
13.00612.4±0.0513.5±0.13.2-3.875-90


HARD ALLOY WIRE DRAWING DIES , HIGH DENSITY TUBE DRAWING DIES CORROSION RESISTANCE
Normal Processing:

HARD ALLOY WIRE DRAWING DIES , HIGH DENSITY TUBE DRAWING DIES CORROSION RESISTANCE
