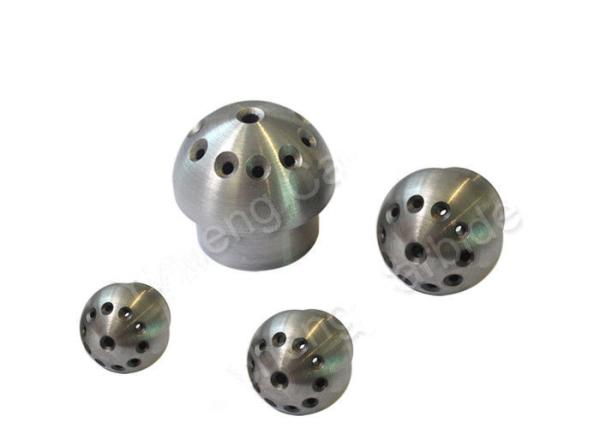

Non Standard Tungsten Carbide Wear Parts For Sleeve Vale Corrosion Resistance
Non Standard Tungsten Carbide Wear Parts For Sleeve Vale Corrosion Resistance
Non Standard Tungsten Carbide Wear Parts For Sleeve Vale Corrosion Resistance
Non Standard Tungsten Carbide Wear Parts For Sleeve Vale Corrosion Resistance
Specifications
Brand Name :
Weiye
Model Number :
non standard
Certification :
ISO9001
Place of Origin :
Zhuzhou，Hunan，China（mainland）
MOQ :
5 kg
Price :
negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
40000 kg per month
Delivery Time :
20-30 days depend on quantity
Packaging Details :
plastic inside and put into wood box
chemical :
wolfram and cobalt
material :
tungsten carbide powder
usage :
valve，nozzle
shape :
mushroom appearance with hole
size :
customized
feature :
multiple application
Description

Non Standard Tungsten Carbide Alloy Abnormal Shape For Sleeve Vale

Tungsten carbide (chemical formula: WC) is a chemical compound (specifically, a carbide) containing equal parts of tungsten and carbon atoms. In its most basic form, tungsten carbide is a fine gray powder, but it can be pressed and formed into shapes through a process called sintering for use in industrial machinery, cutting tools, abrasives, armor-piercing rounds, other tools and instruments, and jewelry.

Tungsten carbide is approximately twice as stiff as steel, with a Young's modulus of approximately 530–700 GPa (77,000 to 102,000 ksi),[4][7][8][9]and is double the density of steel—nearly midway between that of lead and gold. It is comparable with corundum (α-Al2O3) in hardness and can only be polished and finished with abrasives of superior hardness such as cubic boron nitride and diamond powder, wheels, and compounds.

Grade and Physical Property:

Grade Density
g/cm³		 Hardness
HRA(HV)		 TRS
Mpa		 ISO Code
YG6 14.91 ≥91.0 ≥2200 K20
YG8 14.8 ≥90.0 ≥2400 K30
JX20 14.8 ≥90.5 ≥2100 K20
JX25 14.7 ≥89.5 ≥2300 K30
JX5 14.95 ≥91.0 ≥2500 K10
JX9 14.6 ≥90.5 ≥2200 K10
YG6X 14.9 ≥92.2 ≥2100 K10
JX4 15.1 ≥93.1 ≥2200 K10
JX05 15 ≥93.3 ≥2500 K05
JX15 14.95 ≥92.5 ≥2500 K05
JX35 15.2 ≥93.5 ≥2000 K01
JX40 13 ≥90.5 ≥2000 K40
