Specifications
Brand Name :
Weiye
Model Number :
customized
Certification :
ISO9001:2000; PVOC
Place of Origin :
Zhuzhou，Hunan，China（mainland）
MOQ :
5kg
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
40000 kg per month
Delivery Time :
20-30 days depend on quantity
Packaging Details :
Meeting customers's requirement
Material :
wolfram
Shape :
rectangular block
finished :
grinding，blank
HS code :
843143100
feature :
100% virgin raw material
Advantage :
High Wear-Resistance
Description

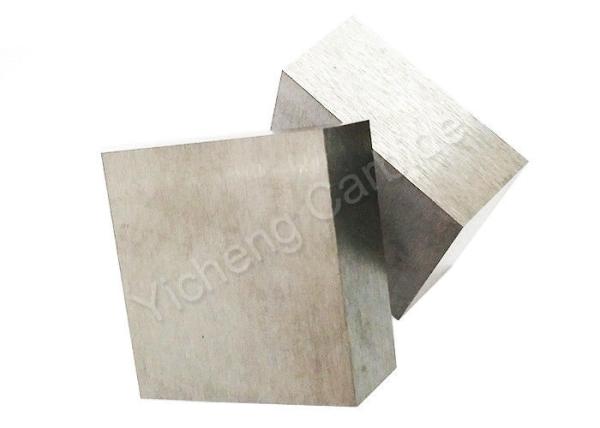

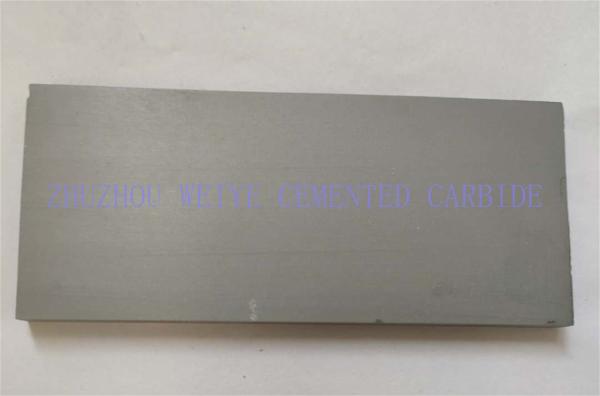

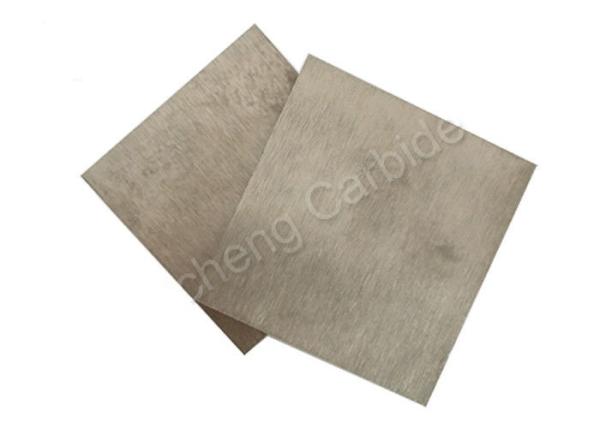

380X150X160MM Tungsten Carbide Alloy Plate Customized By Industry User

Description:

Tungsten carbide plate is also known as cemented sheet, carbide sheet. It is one of many materials of cemented carbide and is named for its shape as a rectangular plate (or square).

Tungsten carbide plates are used for cutting metal, wood and other materials. The advantages of our carbide cutting plates are smooth, fast cutting speed and have a long service time. Unlimited tracks of grades and sizes of carbide plates are available in our company.

Great and Application:

Grade Hardness(HRA) TRS N/mm2 Density g/cm3 Application recommend
YG6X 92 1800 14.9 it can be used to make steel wire,non-ferrous metal wire or bar material with less
than 6.0mm diameter.
YG6 90.5 2000 14.9 it can be used for steel wire,non-ferrous metal and alloy bars under 20mm diameter,and can be also used for drawing pipes with diameter of less than 10mm.
YG8 90 2200 14.7 can be used in steel,non-ferrous metal and alloy bars and pipes,also can be used in manufactureing machinery parts,tools and vulnerable parts.
YG8.2 89 2000 14.6
YG8L 89 2000 14.6
YG11 88.5 2300 14.4 it can be used fo rhigh compression steel rod and steel pipe drawing,and the top hammer,perforation and stamping die of working under great stress.
YG15 87 2600 14
YL50 87 2600 14.4
YG20 85 2800 13.6 it can be used for stamping die,such as punching watch parts,stamping battery
shell,tooth paste mould,small size steel ball,screw,nut,etc.
YG20C 83.5 2800 13.6 it can be used in standard parts,bearings,tools and other industries for cold forging,cold pressing mould,warhead and shell stamping dies.
TL40.5 82 3000 13.3

Standard Parameter:

type tolerance(mm)
L B H
7×5×2.4 ±0.5 ±0.3 ±0.4
9×5×2.4 ±0.5 ±0.3 ±0.4
9×6×1.5 ±0.5 ±0.5 ±0.3
12×5×2.4 ±0.6 ±0.3 ±0.4
12×6×1.5 ±0.6 ±0.5 ±0.3
12×10×2.2 ±0.6 ±0.5 ±0.4
12×12×5 ±0.6 ±0.6 ±0.4
14×10.5×2 ±0.6 ±0.6 ±0.3
15×8×2 ±0.6 ±0.5 ±0.3
17×5×2.4 ±0.6 ±0.3 ±0.4
17×8.2×25 ±0.6 ±0.5 ±0.8
20×5×5 ±0.6 ±0.3 ±0.4
20×8×6 ±0.6 ±0.5 ±0.5
25×20.5×5.2 ±0.6 ±0.8 ±0.5
25.3×6.3×4 ±0.8 ±0.5 ±0.4
27×6×4 ±0.8 ±0.5 ±0.4
27×9×4 ±0.8 ±0.5 ±0.4
27×14.5×14 ±0.8 ±0.6 ±0.7
28×9.3×4 ±0.8 ±0.6 ±0.4
30×12×5 ±0.8 ±0.6 ±0.4
30×26×4 ±0.8 ±0.8 ±0.4
35×5×3.5 ±0.8 ±0.3 ±0.4

RECTANGULAR TUNGSTEN CARBIDE PLATE STRONG ANTI - CORROSION 380 X 150 X 160MMRECTANGULAR TUNGSTEN CARBIDE PLATE STRONG ANTI - CORROSION 380 X 150 X 160MMRECTANGULAR TUNGSTEN CARBIDE PLATE STRONG ANTI - CORROSION 380 X 150 X 160MMRECTANGULAR TUNGSTEN CARBIDE PLATE STRONG ANTI - CORROSION 380 X 150 X 160MMRECTANGULAR TUNGSTEN CARBIDE PLATE STRONG ANTI - CORROSION 380 X 150 X 160MM

About Us: Zhuzhou Weiye Cemented Carbide Industrial Co., Ltd is a professional manufacturer producing premium and high quality cemented carbide products, founded in 2001 and locates in the National High & New-Tech Development Zone in Zhuzhou city of China. We are a provincial high-tech enterprise specializing in development, production, and sales of cemented carbides.

Our main products include carbide rods, carbide bars, forging die cores, disc cutters, carbide plates and boards, rock drilling bits and buttons etc. The products have been sold to more than 20 countries and regions such as South America, Europe, USA, the Middle East and so on, and the Company has received plenty of favorable comments from our customers.

You are welcome to browse over our product page on web: http://www.cemented-tungstencarbide.com/products.html
Appreciate to receive any of your inquires or needs for carbide products, carbide special parts, please feel free to contact us.
