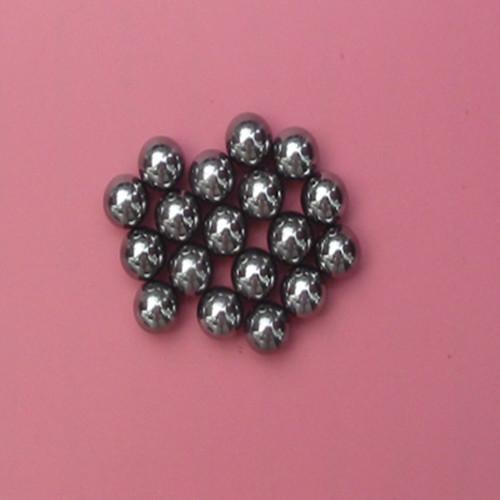

Bearing Accessories Tungsten Carbide Ball YG6 / YG8 Grade Customized Size​


High precision tungsten carbide balls /Tungsten alloy ball
Tungsten Carbide ball is mainly composed of high-hardness refractory metal carbide (WC, TiC) micron powder with cobalt (Co) or nickel (Ni), molybdenum (Mo) as binder in vacuum furnace or Sintered powder metallurgy products in hydrogen reduction furnace, nowadays common cemented carbides have YG, YN,


Application
Tungsten carbide balls are used in applications requiring extreme hardness and resistance to wear and abrasion; and are able to withstand hard shocks and impacts. Tungsten carbide balls are made with 6% nickel binder or 9% nickel binder. Common applications include ball valves, flow meters, ball bearings, linear bearings, tungsten carbide grinding balls, and ball screws.

The common grades of cemented carbide balls are YG3, YG6, YG6X, YG8, YG8X,YG13. The most common are YG6 and YG8.

Specification:

Reference Illustrate:

Composition
The cemented carbide ball is based on a high hardness refractory metal carbide (WC, TiC) micron powder, with cobalt (Co) or nickel (Ni), molybdenum (Mo) as a binder, in a vacuum furnace or Powder metallurgy products sintered in a hydrogen reduction furnace, currently available in the series of hard alloys YG, YN, YT, YW.
Category
Carbide balls mainly include blank balls, fine grinding balls, punching balls, bearing balls, valve balls, non-magnetic balls, Monel balls, through-hole balls, measuring balls, scratching balls, and ball beads.
Grade
YG6 carbide ball. YG6x carbide ball. YG8 carbide ball. YG13 carbide ball. YG20 carbide ball. YN6 carbide ball. YN9 carbide ball. YN12 carbide ball. YT5 hard Alloy ball. YT15 carbide ball.
