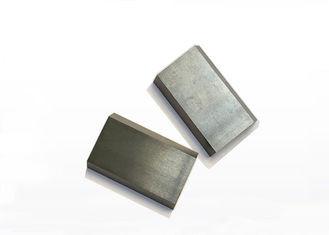

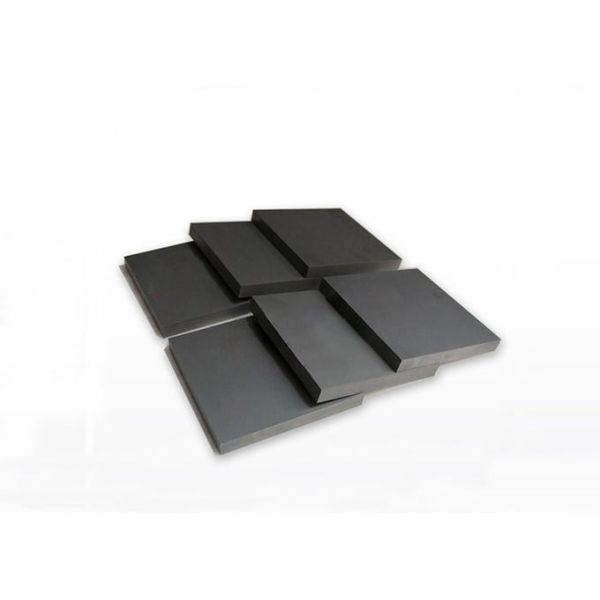

OEM Tungsten Carbide Plate To Be Welded On Agriculture Machine Wear Parts
OEM Tungsten Carbide Plate To Be Welded On Agriculture Machine Wear Parts
OEM Tungsten Carbide Plate To Be Welded On Agriculture Machine Wear Parts
OEM Tungsten Carbide Plate To Be Welded On Agriculture Machine Wear Parts
Specifications
Brand Name :
Weiye
Model Number :
Standard and Customized
Certification :
ISO9001:2008,CE,SGS,etc.
Place of Origin :
ZHUZHOU,CHINA
Item Name :
Tungsten Carbide Plate And Sheets
Remarks :
We Could Totally Produce Products As Your
Business Pattern :
Factory With Full Production Line
Material :
100% Virgin Raw Materia
OEM :
Totally Accept
Quality Grade :
K30 / YG8
Hardness :
HRA80- HRA92
Dimension :
Standard And Customized
Description

Product Description

Tungsten carbide plate to be welded on agriculture machine wear parts

Brief Information

Product Name
OEM&ODM YG8 YG10 YG15 tungsten carbide plate
Status
stress release,HIP treated
Product status
nickel white,tungsten black
Standard
OEM
Grade
K10/K20 as per request
Specification
customized
Surface treatment
blank,ground,polished&as requirement
Feature
Hard hardness,wear resistance,corrosion resistance,toughness,shock resistance

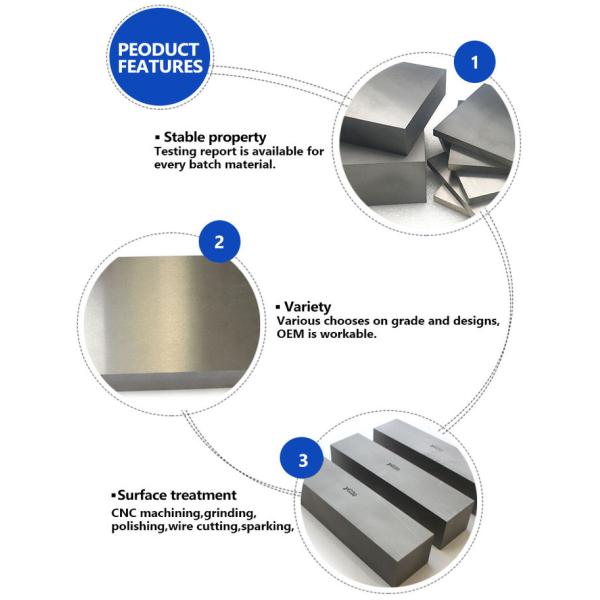

Main Features

1. stable property : testing pieces before mass production is produced to ensure the stable property of carbide flats.

2. Small allowance : small allowance helps to control our productin cost and decrease your importing cost.

3. Various grades and dimensions: with our CNC machining system,it is workable even for 1 PC rectangular carbide blanks.

Dimension

These dimensions are just part of our moulds,if you can't find the dimension you are looking for,please contact us for confirmation.

Sr.No Length(mm) Width(mm) Thickness(mm) Sr.No Length(mm) Width(mm) Thickness(mm)
1 50 50 2-40 11 250 250 2-200
2 70 70 2-50 12 300 300 2-200
3 100 100 2-70 13 70 50 2-40
4 102 102 2-70 14 110 80 2-50
5 105 105 2-70 15 125 72 2-50
6 125 125 2-80 16 150 60 2-50
7 120 120 2-80 17 155 60 2-50
8 150 150 2-100 18 150 100 2-80
9 180 180 2-150 19 200 100 2-80
10 200 200 2-150 20 300 200 2-80

Quality Grades

Main grade grade K10(YG6X),K20(YG6),K30(YG8),YG15,YG20,YT15(P10),YW1(M10),for more information

please contact us through email.

Grade ISO grade

Grain size

(um)

 Binder

density

(g/cm³)

 Hardness
(HRA)

T.R.S

(N/m㎡)
YG6A K20 0.8 6 ≥15.10 ≥91.5 ≥1580
YG6X K10 1.0 6 ≥15.00 ≥91.0 ≥1880
YL80.1 K30 1.5 8 ≥14.80 ≥89.5 ≥2020
YL80.4 K30-K40 1.5 12 ≥14.50 ≥88.0 ≥2600
YL80.2 K30-K40 1.5 15 ≥14.00 ≥87.0 ≥2900
YL80.3 1.0 20 ≥13.80 ≥86.0 ≥2600

OEM Tungsten Carbide Plate To Be Welded On Agriculture Machine Wear PartsOEM Tungsten Carbide Plate To Be Welded On Agriculture Machine Wear PartsOEM Tungsten Carbide Plate To Be Welded On Agriculture Machine Wear PartsOEM Tungsten Carbide Plate To Be Welded On Agriculture Machine Wear Parts

Application

1.Metal working:processed into press tool,blade,cutter,wear parts,blanks and polishing tungsten carbide plates for machinery lathe to machine HSS material,Alu,steel,and stainless steel,etc.
2.Wood working:blank carbide plate and polished solid tungsten carbide plates for wood working stone.
3.Stone working:blank and polished solid tungsten carbide plates for crushing of marble,granite,cobblestone,etc.
4.Other application:such as wear resistance parts of punching mold,measuring and cutting industry.

Customized size carbide rectangular parts are available here,your inquiry will be more than welcome,work with us!
