Specifications
Place of Origin :
China
Price :
Negotiable, depends on quantity.
MOQ :
1 - 49 Kilograms sample order acceptable
Packaging Details :

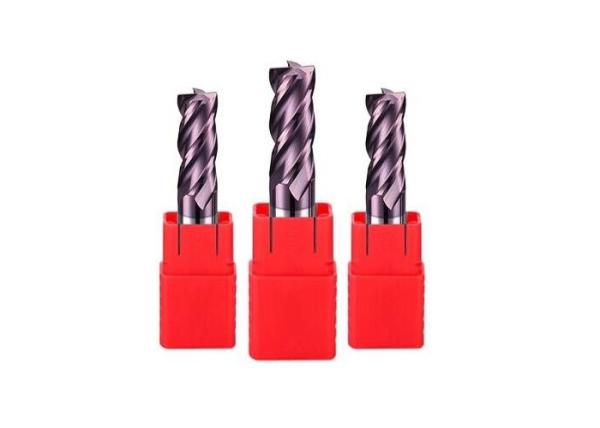

Packed in plastic tube or as your requirments.
Supply Ability :
20 Ton/Tons per Month
Brand Name :
Jin Tai Pai
Model Number :
end mill of 1-20 mm, customized dimension acceptable
Delivery Time :
7-25 days, depends on quantity
Certification :
ISO standard
Payment Terms :
L/C, T/T, Western Union
Product Name :
flat radius and ball end mill
Material :
Carbide, tungsten carbide
Flute :
2/4
Features :
wear resistance
OEM service :
yes
Suitable For :
Pre-hardened Steel, Stainless Steel, Alloy steel, Die steel
Description

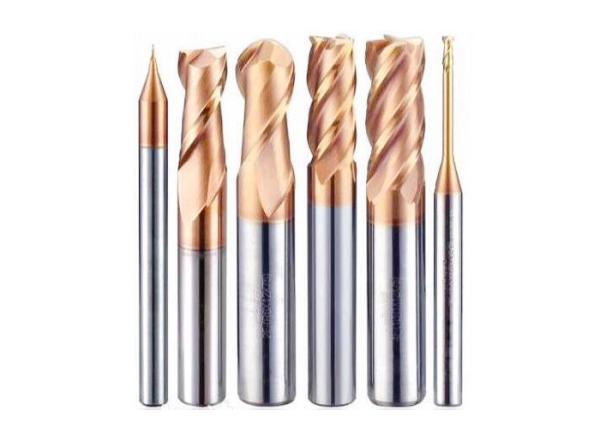

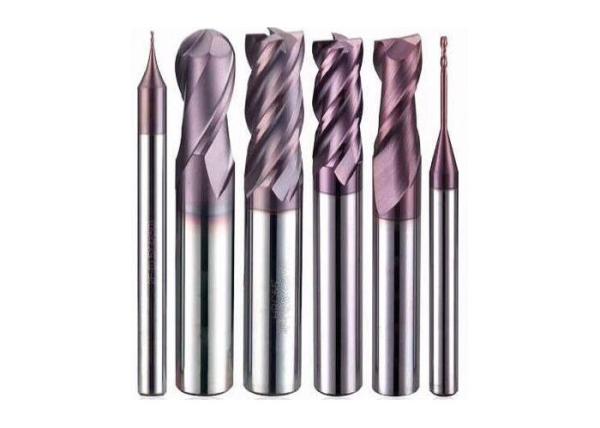

Milling cutters/end mills are broadly divided into:

1. Square end mill: finish milling or rough milling, milling grooves, removing a large number of blanks, small-area horizontal plane or contour finishing;

2. Ball end milling cutter/end mill: semi-finishing and finishing of curved surface; the small blade can finish milling small chamfer of steep surface/straight wall.

3, Radius end mill: rough milling when the surface change is small, the small concave area is less, and in relatively flat area.

4. Taper end mills: with chamfer, it can be used for rough milling to remove a large number of blanks, and it can also be fine-milled with a small chamfer on the flat surface (relative to the steep surface).

5. Dill

6. Thread mill

7. Formed cutter

2 Flute Long Square Shank Tungsten Carbide End Mill OEM Service Available

Features:

  • Solid carbide mill finish that is suitable for metal options like aluminum, non-ferrous, non-metallic metal
  • Precision engineered flute design that provides for superior chip removal at high feed rates
  • Allows for achieving lower cutting forces
  • Features enhanced balance and finish support
  • Helps in enhancing control as well as in bringing reduction in chatter
  • Comes with exceptional performance support

Specifications

2-flute long square shank carbide end mill

Type Blade diameter Blade length Shank diameter Total length
6.0×16×6D×75L×2F 6 16 6 75
6.0×16×6D×100L×2F 6 16 6 100
8.0×20×8D×75L×2F 8 20 8 75
8.0 ×20×8D×100L×2F 8 20 8 100
10×25×10D×100L×2F 10 25 10 100
10×25×10D×150L×2F 10 25 10 150
12×30×12D×100L×2F 12 30 12 100
12×30×12D×150L×2F 12 30 12 150

4-flute long shank square carbide end mill

Type Blade diameter Blade length Shank diameter Total length
6.0×16×6D×75L×4F 6 16 6 75
6.0×16×6D×100L×4F 6 16 6 100
8.0×20×8D×75L×4F 8 20 8 75
8.0 ×20×8D×100L×4F 8 20 8 100
10×25×10D×100L×4F 10 25 10 100
10×25×10D×150L×4F 10 25 10 150
12×30×12D×100L×4F 12 30 12 100
12×30×12D×150L×4F 12 30 12 150

2-flute long blade square carbide end mill

Type Blade diameter Blade length Shank diameter Total length
1.0×7×4D×50L×2F 1 7 4 50
1.5×9×4D×50L×2F 1.5 9 4 50
2.0×12×4D×50L×2F 2 12 4 50
2.5×12×4D×50L×2F 2.5 12 4 50
3.0×15×6D×60L×2F 3 15 6 60
3.5×15×6D×60L×2F 3.5 15 6 60
4.0×20×6D×75L×2F 4 20 6 75
4.5×20×6D×75L×2F 4.5 20 6 75
5.0×25×6D×75L×2F 5 25 6 75
5.5×25×6D×75L×2F 5.5 25 6 75
6.0×30×6D×75L×2F 6 30 6 75
7.0×30×8D×100L×2F 7 30 8 100
8.0×40×8D×100L×2F 8 40 8 100
9.0×40×10D×100L×2F 9 40 10 100
10×40×10D×100L×2F 10 40 10 100
11×40×12D×100L×2F 11 40 12 100
12×50×12D×100L×2F 12 50 12 100
14×50×14D×150L×2F 14 50 14 150
16×60×16D×150L×2F 16 60 16 150
18×70×18D×150L×2F 18 70 18 150
20×70×20D×160L×2F 20 70 20 150

4-flute long blade square carbide end mill

Type Blade diameter Blade length Shank diameter Total length
1.0×7×4D×50L×4F 1 7 4 50
1.5×9×4D×50L×4F 1.5 9 4 50
2.0×12×4D×50L×4F 2 12 4 50
2.5×12×4D×50L×4F 2.5 12 4 50
3.0×15×6D×60L×4F 3 15 6 60
3.5×15×6D×60L×4F 3.5 15 6 60
4.0×20×6D×75L×4F 4 20 6 75
4.5×20×6D×75L×4F 4.5 20 6 75
5.0×25×6D×75L×4F 5 25 6 75
5.5×25×6D×75L×4F 5.5 25 6 75
6.0×30×6D×75L×4F 6 30 6 75
7.0×30×8D×100L×4F 7 30 8 100
8.0×40×8D×100L×4F 8 40 8 100
9.0×40×10D×100L×4F 9 40 10 100
10×40×10D×100L×4F 10 40 10 100
11×40×12D×100L×4F 11 40 12 100
12×50×12D×100L×4F 12 50 12 100
14×50×14D×150L×4F 14 50 14 150
16×60×16D×150L×4F 16 60 16 150
18×70×18D×150L×4F 18 70 18 150
20×70×20D×160L×4F 20 70 20 150

Applications

1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc.
