Tungsten Carbide Ball Mill is a kind of cutter whose blade is similar to ball head, which is used for milling various curved surface and circular groove. Ball nose mill can use for small surface changes, small concave area less, relatively flat area more rough milling, and it can also mill die steel, cast iron, carbon steel, alloy steel, tool steel, general iron, belonging to the end mill.The ball head knife can work normally in high temperature environment.

Milling cutters/end mills are broadly divided into:

1. Square end mill: finish milling or rough milling, milling grooves, removing a large number of blanks, small-area horizontal plane or contour finishing;

2. Ball end milling cutter/end mill: semi-finishing and finishing of curved surface; the small blade can finish milling small chamfer of steep surface/straight wall.

3, Radius end mill: rough milling when the surface change is small, the small concave area is less, and in relatively flat area.

4. Taper end mills: with chamfer, it can be used for rough milling to remove a large number of blanks, and it can also be fine-milled with a small chamfer on the flat surface (relative to the steep surface).

5. Dill

6. Thread mill

7. Formed cutter

Specification

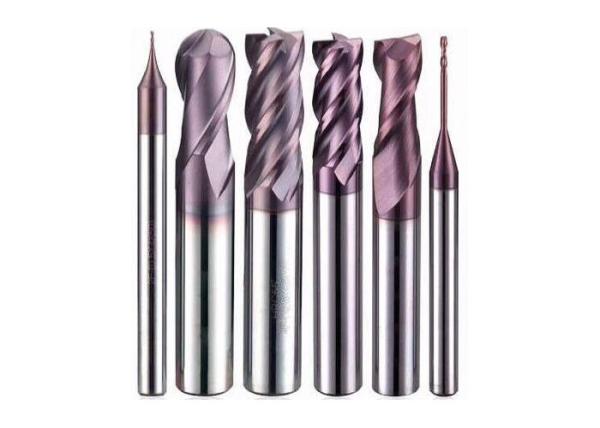

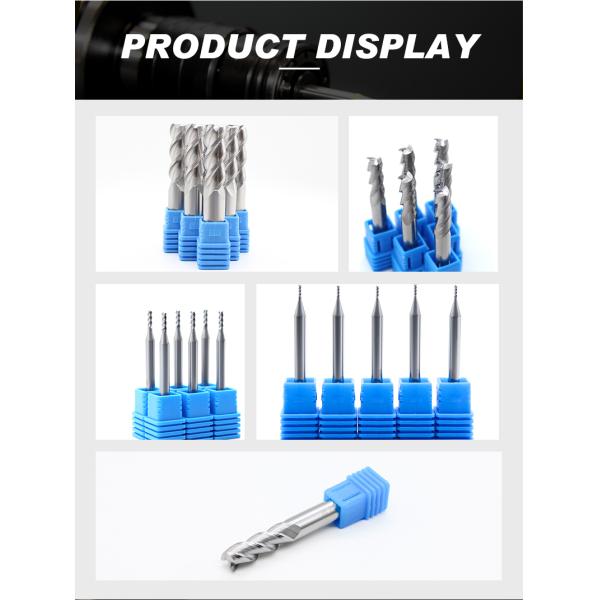

HRC60 Tungsten carbide end mill

Blade diameter from 1mm-20mm, helix angle 35°, hardness 62, suitable for high speed; Features: micro-particle cemented carbide material, WC=87.5%, CO=12.5%, TRC>5000N/m2, particle size: 0.3- 0.4um, can process carbon steel, alloy steel,Stainess steel

2 flute long shank ball carbide end mill

4 flute long shank ball carbide end mill

Applications

1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc.
