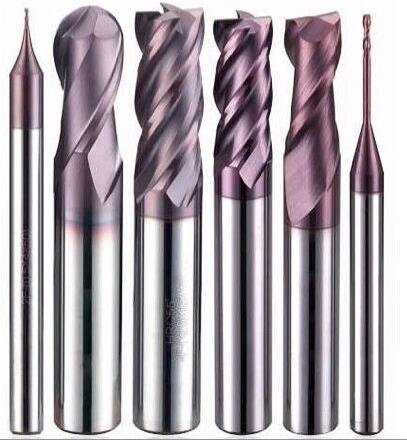

Steel / Stainless / Aluminium Processing HRC 63 Durable Tungsten Carbide End Mill
Steel / Stainless / Aluminium Processing HRC 63 Durable Tungsten Carbide End Mill
Specifications
Place of Origin :
China
Price :
Negotiable, depends on requirement and quantity.
MOQ :
1 - 1000 pieces & sample order available
Packaging Details :
Packed in plastic tube, or as your requirments.
Supply Ability :
20 Ton/Tons per Month
Brand Name :
Jin Tai Pai
Model Number :
D1-D20 customized dimension available
Delivery Time :
7-25 days, depends on order
Certification :
SGS ISO certificated
Payment Terms :
Western Union, L/C, T/T
Product Name :
Carbide end mill, flat, radius and ballnose end mill
Material :
Carbide, tungsten carbide, cemented carbide
Flute :
2/4
Features :
high in toughness
Application :
Steel/Stainless/aluminium
Coating :
AlTiN
Hardness :
HRC 45 50 55 60 65
Description

Steel / Stainless / Aluminium Processing HRC 63 Durable Tungsten Carbide End Mill

There are many types of milling cutters, such as machining pockets and straight contours for general milling machines and CNC milling machines, machining cavities, cores, and curved profiles/contours on the milling and machining centers.

Milling cutters/end mills are broadly divided into:

1. Square end mill: finish milling or rough milling, milling grooves, removing a large number of blanks, small-area horizontal plane or contour finishing;

2. Ball end milling cutter/end mill: semi-finishing and finishing of curved surface; the small blade can finish milling small chamfer of steep surface/straight wall.

3, Radius end mill: rough milling when the surface change is small, the small concave area is less, and in relatively flat area.

4. Taper end mills: with chamfer, it can be used for rough milling to remove a large number of blanks, and it can also be fine-milled with a small chamfer on the flat surface (relative to the steep surface).

5. Dill

6. Thread mill

7. Formed cutter

Features

It Can be widely used in profiling, etc.

Fine-grained tungsten carbide bar is coated with TiAIN and featured with high toughness, high wear resistance

It can directly carry out roughing to finishing of heat treatment molds, reduce the number of tool changes, improve machine efficiency and reduce the mold making process.

Applications

1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc

Specifications

2 flute versatile carbide end mill

Type Blade diameter Blade length Shank diameter Total length
MPF3×6×4D×50L×60° 3 6 4 50
MPF3×6×4D×50L×90° 3 6 4 50
MPF3×6×4D×50L×120° 3 6 4 50
MPF4×8×6D×50L×60° 4 8 6 50
MPF4×8×6D×50L×90° 4 8 6 50
MPF4×8×6D×50L×120° 4 8 6 50
MPF5×10×6D×50L×60° 5 10 6 50
MPF5×10×6D×50L×90° 5 10 6 50
MPF5×10×6D×50L×120° 5 10 6 50
MPF6×12×8D×60L×60° 6 12 8 60
MPF6×12×8D×60L×90° 6 12 8 60
MPF6×12×8D×60L×120° 6 12 8 60
MPF8×16×10D×75L×60° 8 16 10 75
MPF8×16×10D×75L×90° 8 16 10 75
MPF8×16×10D×75L×120° 8 16 10 75
MPF10×20×12D×75L×60° 10 20 12 75
MPF10×20×12D×75L×90° 10 20 12 75
MPF10×20×12D×75L×120° 10 20 12 75
MPF12×24×12D×75L×60° 12 24 12 75
MPF12×24×12D×75L×90° 12 24 12 75
MPF12×24×12D×75L×120° 12 24 12 75
MPF14×28×14D×80L×60° 14 28 14 80
MPF14×28×14D×80L×90° 14 28 14 80
MPF14×28×14D×80L×120° 14 28 14 80
MPF16×32×16D×100L×60° 16 32 16 100
MPF16×32×16D×100L×90° 16 32 16 100
MPF16×32×16D×100L×120° 16 32 16 100
MPF20×40×20D×100L×60° 20 40 20 100
MPF20×40×20D×100L×90° 20 40 20 100
MPF20×40×20D×100L×120° 20 40 20 100

Steel / Stainless / Aluminium Processing HRC 63 Durable Tungsten Carbide End Mill
