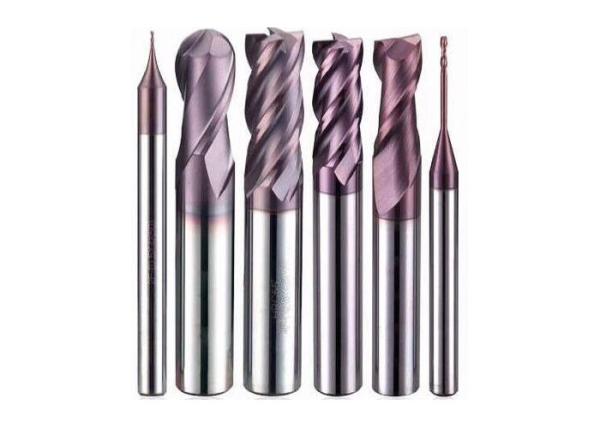

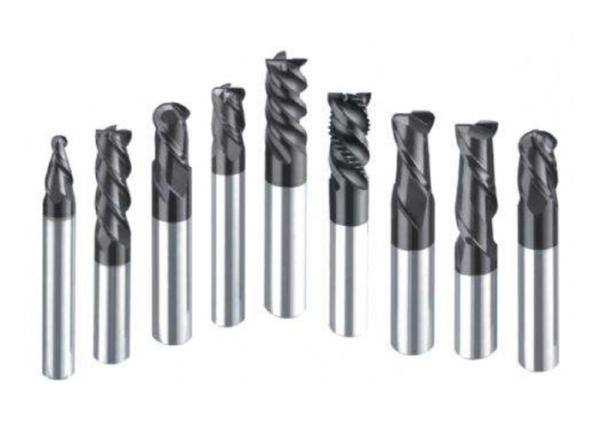

Milling cutters/end mills are broadly divided into:

1. Square end mill: finish milling or rough milling, milling grooves, removing a large number of blanks, small-area horizontal plane or contour finishing;

2. Ball end milling cutter/end mill: semi-finishing and finishing of curved surface; the small blade can finish milling small chamfer of steep surface/straight wall.

3, Radius end mill: rough milling when the surface change is small, the small concave area is less, and in relatively flat area.

4. Taper end mills: with chamfer, it can be used for rough milling to remove a large number of blanks, and it can also be fine-milled with a small chamfer on the flat surface (relative to the steep surface).

5. Dill

6. Thread mill

7. Formed cutter

Features:
Solid carbide mill finish that is suitable for metal options like aluminum, non-ferrous, non-metallic metal
Precision engineered flute design that provides for superior chip removal at high feed rates
Allows for achieving lower cutting forces
Features enhanced balance and finish support
Helps in enhancing control as well as in bringing reduction in chatter
Comes with exceptional performance support

Specifications

Blade diameter range from 0.5mm-10mm, helix angle 35°, hardness: HRC55, suitable for medium and high speed; Features: micro-particle cemented carbide material, WC=88%, CO=12%, TRC>4300N/m2, particle size: 0.5 Um, ideal for carbon steel, alloy steel, stainless steel cast iron mold

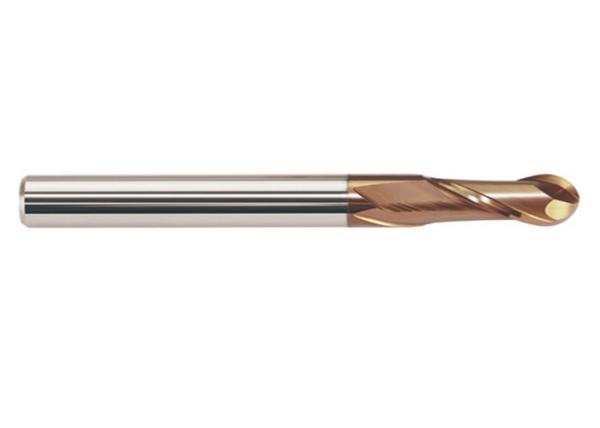

2 flute ball end mill

4 flute ball end mill

Applications

1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc
