Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
Specifications
Place of Origin :
China
Price :
Negotiable, depends on requirement and quantity.
MOQ :
1 - 49 Kilograms sample order acceptable
Packaging Details :
Packed in Wooden case and inner in paper box.or we can package by your requirments.
Supply Ability :
20 Ton/Tons per Month
Brand Name :
Jin Tai Pai
Model Number :
end mill
Certification :
ISO SGS
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
7-25 days, depends on quantity
Product Name :
flat, radius and ball end mill
Material :
Carbide, tungsten carbide
Flute :
2/4
Features :
Excellent workpiece finishes,suprior wear-resitance.
Service :
OEM, Customization
Scope of applications: :
Metals, plactisc, composite, wood materials
Hardness :
HRC 48 53 58 63
Description

Milling cutters/end mills are broadly divided into:

1. Square end mill: finish milling or rough milling, milling grooves, removing a large number of blanks, small-area horizontal plane or contour finishing;

2. Ball end milling cutter/end mill: semi-finishing and finishing of curved surface; the small blade can finish milling small chamfer of steep surface/straight wall.

3, Radius end mill: rough milling when the surface change is small, the small concave area is less, and in relatively flat area.

4. Taper end mills: with chamfer, it can be used for rough milling to remove a large number of blanks, and it can also be fine-milled with a small chamfer on the flat surface (relative to the steep surface).

5. Dill

6. Thread mill

7. Formed cutter

Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes

Speciafication and Feature
1. Self feeding screw point provides fast boring in hard and soft woods, for precise and easy drilling.
2. Solid center design provide extre rigidity and excellent chip-carrying capacity.
3. Wide lands keep the bit straight as it bore through the hole.
4. Strict standard for consistent quality assurance.

Specifications

HRC60 Tungsten carbide end mill

Blade diameter from 1mm-20mm, helix angle 35°, hardness 62, suitable for high speed; Features: micro-particle cemented carbide material, WC=87.5%, CO=12.5%, TRC>5000N/m2, particle size: 0.3- 0.4um, can process carbon steel, alloy steel,Stainess steel

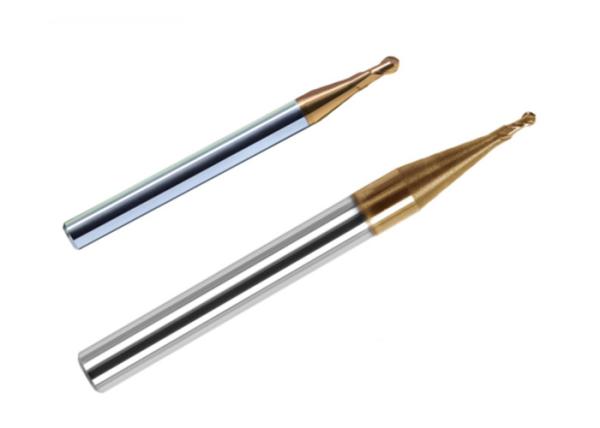

2 flute ball carbide end mill

Type Blade diameter Blade length Shank diameter Total length
R0.75×3×4D×50L×2F 1.5 3 4 50
R1.0×4×4D×50L×2F 2 4 4 50
R1.25×5×4D×50L×2F 2.5 5 4 50
R1.5×6×4D×50L×2F 3 6 4 50
R1.75×7×4D×50L×2F 3.5 7 4 50
R2.0×8×4D×50L×2F 4 8 4 50
R2.5×10×6D×50L×2F 5 10 6 50
R3.0×12×6D×50L×2F 6 12 6 50
R3.5×14×8D×60L×2F 7 14 8 60
R4.0×16×8D×60L×2F 8 16 8 60
R4.5×18×10D×75L×2F 9 18 10 75
R5.0×20×10D×75L×2F 10 20 10 75
R5.5×22×12D×75L×2F 11 22 12 75
R6.0×24×12D×75L×2F 12 24 12 75
R7.0×28×14D×100L×2F 14 28 14 100
R8.0×32×16D×100L×2F 16 32 16 100
R9.0×36×18D×100L×2F 18 36 18 100
R10×40×20D×100L×2F 20 40 20 100

4 flute ball carbide end mill

Type Blade diameter Blade length Shank diameter Total length
R0.75×3×4D×50L×2F 1.5 3 4 50
R1.0×4×4D×50L×2F 2 4 4 50
R1.25×5×4D×50L×2F 2.5 5 4 50
R1.5×6×4D×50L×2F 3 6 4 50
R1.75×7×4D×50L×2F 3.5 7 4 50
R2.0×8×4D×50L×2F 4 8 4 50
R2.5×10×6D×50L×2F 5 10 6 50
R3.0×12×6D×50L×2F 6 12 6 50
R3.5×14×8D×60L×2F 7 14 8 60
R4.0×16×8D×60L×2F 8 16 8 60
R4.5×18×10D×75L×2F 9 18 10 75
R5.0×20×10D×75L×2F 10 20 10 75
R5.5×22×12D×75L×2F 11 22 12 75
R6.0×24×12D×75L×2F 12 24 12 75
R7.0×28×14D×100L×2F 14 28 14 100
R8.0×32×16D×100L×2F 16 32 16 100
R9.0×36×18D×100L×2F 18 36 18 100
R10×40×20D×100L×2F 20 40 20 100

Applications

1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc

Wear Resistance Tungsten Carbide End Mill With Excellent Workpiece Finishes
