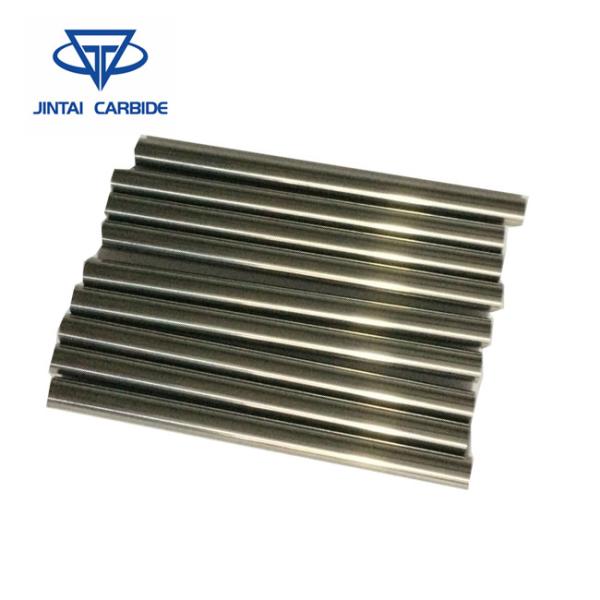

Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Specifications
Brand Name :
JinTaiPai
Model Number :
Various
Certification :
SGS
Place of Origin :
Hunan, China
MOQ :
Negotiable, sample order acceptable
Price :
Negotiable, depends on carbide grade and quantity.
Supply Ability :
300 Ton/Tons per Month
Delivery Time :
7-25 days, depends on quantity.
Packaging Details :
Pack with shock resistance foam first in plastic box, and then carton boxes outside. Or pack according to your request
Payment Terms :
L/C, T/T, Western Union
Alloy Specification :
K01, K10, K20 carbide grade
Particle :
0.2-1.7um
Product name :
Ultra Fine Custom Tungsten Carbide Rod For Mechanical Parts Machining And Processing
Material :
100% virgin carbide material
Surface :
High Polished, h6
Certificate :
ISO
Color :
Silver Gray
Application :
Machinery Tools
Description

Ultra Fine Custom Tungsten Carbide Rod For Mechanical Parts Machining And Processing

Feature

1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.

Material composition:
1.Physical Properties:
A) Hardness greater than or equal to 92.8 HRA；
B) Density greater than or equal to 14.2 g/cm³；
C) TRS greater than or equal to 4200 N/mm²；
D) Free of ETA phase condition；
E) No contamination by other materials；
F) Porosity = A00 / B00 / C00 ；
G) Uniform and consistent grain size. No grain size can be larger than specified.
H) Chromium carbide grain growth inhibitor only.
2.All the production, coatings are used in Germany, Switzerland, processing equipment；
3.It's proposed cutting less than 60HRC;

Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing

Properties of cemented carbide grades recommended rods

Grade

Chemical composition

Physical data

Grain size of WC(um)

WC

Co

Others

Density(g/cm³)

Hardness(HV3)

TRS(MPa)

YL10.1

93.5%

6.0%

0.5%

14.88-15.04

1580±50

2500

1.2-1.7

YL10.2

89.5%

10.0%

0.5%

14.4-14.55

1600±50

4000

0.8

YL10.5

89.7%

9.5%

0.8%

14.4-14.55

1550±50

3800

0.7-0.9

YL50

85.0%

15.0%

13.86-14.10

1095

2060

0.4-0.6

YU06

93.0%

6.0%

1.0%

14.7-14.8

2050

3000

0.2-0.4

YU08

91.0%

8.0%

1.0%

14.56-14.65

1900

4000

0.2-0.4

YU09

89.8%

9.0%

1.2%

14.36-14.50

1950

3900

0.2-0.4

YU12

87.0%

12.0%

1.0%

14.05-14.15

1750

4000

0.2-0.4

YF06

93.5%

6.0%

0.5%

14.86-14.96

1800

3800

0.4-0.6

YF08

91.4%

8.0%

0.6%

14.55-14.65

1800

3900

0.4-0.6

YG6X

93.5%

6.0%

0.5%

14.8-15.10

91

1560

1.0

YG8

92.0%

8.0%

14.6-14.9

89.5

1840

1.2-1.6

~ Customized Tungsten carbide products are available!

Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing

Type D(mm) Tol. Of diameter(mm) L(mm) Tol. Of diameter(mm)
￠1.0*330 1.0 +0.2~+0.45 330 0~+5.0
￠2.0*330 2.0 +0.2~+0.45 330 0~+5.0
￠3.0*330 3.0 +0.2~+0.45 330 0~+5.0
￠4.0*330 4.0 +0.2~+0.45 330 0~+5.0
￠5.0*330 5.0 +0.2~+0.45 330 0~+5.0
￠6.0*330 6.0 +0.2~+0.45 330 0~+5.0
￠7.0*330 7.0 +0.2~+0.45 330 0~+5.0
￠8.0*330 8.0 +0.2~+0.45 330 0~+5.0
￠9.0*330 9.0 +0.2~+0.45 330 0~+5.0
￠10.0*330 10.0 +0.2~+0.5 330 0~+5.0
￠11.0*330 11.0 +0.2~+0.5 330 0~+5.0
￠12.0*330 12.0 +0.2~+0.5 330 0~+5.0
￠13.0*330 13.0 +0.2~+0.5 330 0~+5.0
￠14.0*330 14.0 +0.2~+0.5 330 0~+5.0
￠15.0*330 15.0 +0.2~+0.6 330 0~+5.0
￠16.0*330 16.0 +0.2~+0.6 330 0~+5.0
￠17.0*330 17.0 +0.2~+0.6 330 0~+5.0
￠18.0*330 18.0 +0.2~+0.6 330 0~+5.0
￠19.0*330 19.0 +0.2~+0.6 330 0~+5.0
￠20.0*330 20.0 +0.2~+0.7 330 0~+5.0
￠21.0*330 21.0 +0.2~+0.7 330 0~+5.0
￠22.0*330 22.0 +0.2~+0.7 330 0~+5.0
￠23.0*330 23.0 +0.2~+0.7 330 0~+5.0
￠24.0*330 24.0 +0.2~+0.7 330 0~+5.0
￠25.0*330 25.0 +0.2~+0.7 330 0~+5.0
￠26.0*330 26.0 +0.2~+0.8 330 0~+5.0
￠27.0*330 27.0 +0.2~+0.8 330 0~+5.0
￠28.0*330 28.0 +0.2~+0.8 330 0~+5.0
￠29.0*330 29.0 +0.2~+0.8 330 0~+5.0
￠30.0*330 30.0 +0.2~+0.8 330 0~+5.0

Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And ProcessingUltra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
Ultra Fine Custom Tungsten Carbide Bar For Mechanical Parts Machining And Processing
