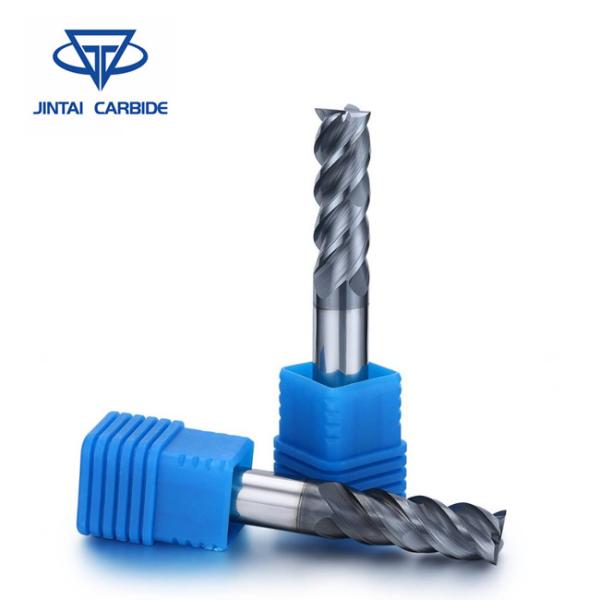

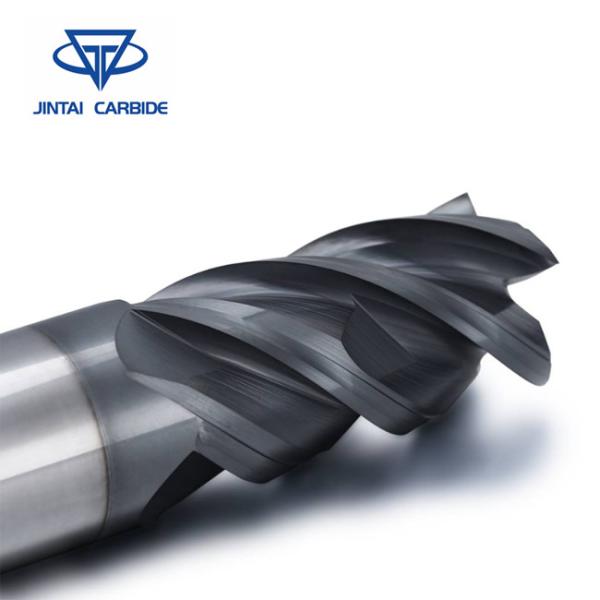

Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill
Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill
Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill
Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill
Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill
Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill
Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill
Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill
Specifications
Brand Name :
Jin Tai Pai
Model Number :
D1-D20 customized dimension available
Certification :
SGS
Place of Origin :
China
MOQ :
Negotiable, sample order acceptable
Price :
Negotiable, depends on carbide grade and quantity.
Supply Ability :
20 Ton/Tons per Month
Delivery Time :
7-25 days, depends on order
Packaging Details :
Packed in plastic tube or as your requirments.
Payment Terms :
L/C, T/T, Western Union
Product Name :
Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill
Material :
Carbide, tungsten carbide
Flute :
2/3/4
Spiral Angle :
30 degree
Machine Type :
Milling Machine
Usage :
Metalworking
Description

Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill

Feature

1. Good Surface
2. High Precision
3. Good Performance
4. Certification: ISO9001:2008, Supplier Assessment Certificate

Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill

Specifications

Hrc45/Hrc55/Hrc65 solid carbide end mill

Blade diameter range from 0.5mm to 10 mm, spiral angle 30 degree, hardness Hrc45/Hrc55/Hrc65.

Fine tungsten carbide, WC=90%,CO=10%,TRC>3800N/㎡, ideal for carbon steel, alloy steel and iron mold materials.

Hrc45/Hrc55/Hrc65 2 flute and 4 flute square end mill

2-flute square carbide end mill

Type Blade diameter Blade length Shank diameter Total length
1.0x3x4Dx50Lx2F 1 3 4 50
1.5x4x4Dx50Lx2F 1.5 4 4 50
2.0x6x4Dx50Lx2F 2 6 4 50
2.5x8x4Dx50Lx2F 2.5 8 4 50
3.0x3x4Dx50Lx2F 3 8 4 50
3.5x10x4Dx50Lx2F 3.5 10 4 50
4.0x11x4Dx50Lx2F 4 11 4 50
3.0x8x6Dx50Lx2F 3 8 6 50
3.5x10x6Dx50Lx2F 3.5 10 6 50
4.0x11x6Dx50Lx2F 4 11 6 50
4.5x13x6Dx50Lx2F 4.5 13 6 50
5.0x13x6Dx50Lx2F 5 13 6 50
5.5x13x6Dx50Lx2F 5.5 13 6 50
6.0x15x6Dx50Lx2F 6 15 6 50
7.0x16x8Dx60Lx2F 7 16 8 60
8.0x20x8Dx60Lx2F 8 20 8 60
9x20x10Dx75Lx2F 9 20 10 75
10x25x10Dx75Lx2F 10 25 10 75
11x25x12Dx75Lx2F 11 25 12 75
12x30x12Dx75Lx2F 12 30 12 75
14x35x14Dx100Lx2F 14 35 14 100
16x40x16Dx100Lx2F 16 40 16 100
18x45x18Dx100Lx2F 18 40 18 100
20x45x20Dx100Lx2F 20 45 20 100

4 flute square carbide end mill

Type Blade diameter Blade length Shank diameter Total length
1.0x3x4Dx50Lx4F 1 3 4 50
1.5x4x4Dx50Lx4F 1.5 4 4 50
2.0x6x4Dx50Lx4F 2 6 4 50
2.5x8x4Dx50Lx4F 2.5 8 4 50
3.0x3x4Dx50Lx4F 3 8 4 50
3.5x10x4Dx50Lx4F 3.5 10 4 50
4.0x11x4Dx50Lx4F 4 11 4 50
3.0x8x6Dx50Lx4F 3 8 6 50
3.5x10x6Dx50Lx4F 3.5 10 6 50
4.0x11x6Dx50Lx4F 4 11 6 50
4.5x13x6Dx50Lx4F 4.5 13 6 50
5.0x13x6Dx50Lx4F 5 13 6 50
5.5x13x6Dx50Lx4F 5.5 13 6 50
6.0x15x6Dx50Lx4F 6 15 6 50
7.0x16x8Dx60Lx4F 7 16 8 60
8.0x20x8Dx60Lx4F 8 20 8 60
9x20x10Dx75Lx4F 9 20 10 75
10x25x10Dx75Lx4F 10 25 10 75
11x25x12Dx75Lx4F 11 25 12 75
12x30x12Dx75Lx4F 12 30 12 75
14x35x14Dx100Lx4F 14 35 14 100
16x40x16Dx100Lx4F 16 40 16 100
18x45x18Dx100Lx4F 18 40 18 100
20x45x20Dx100Lx4F 20 45 20 100

Square end mills of other blade diameter and length are possible as per customers’ requirement.

Applications

1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc
