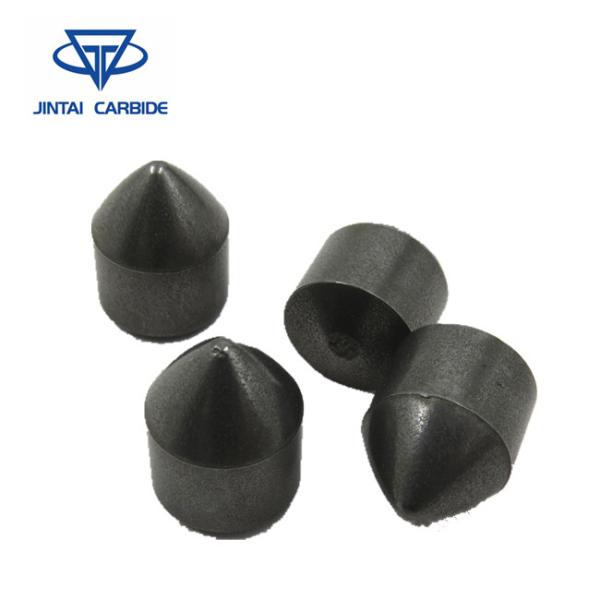

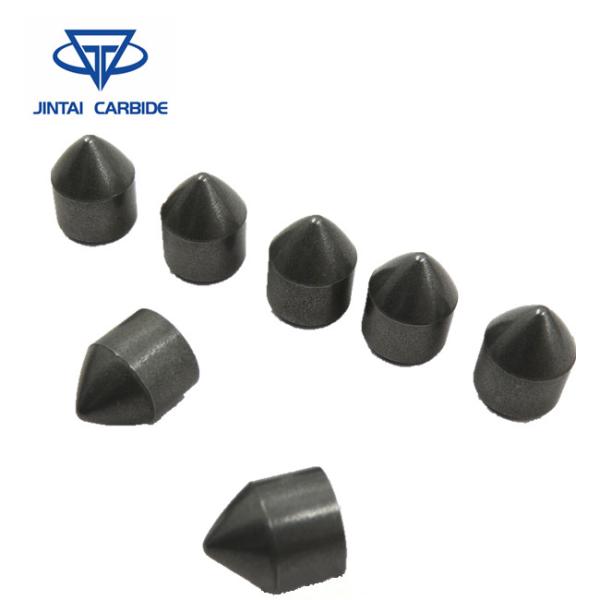

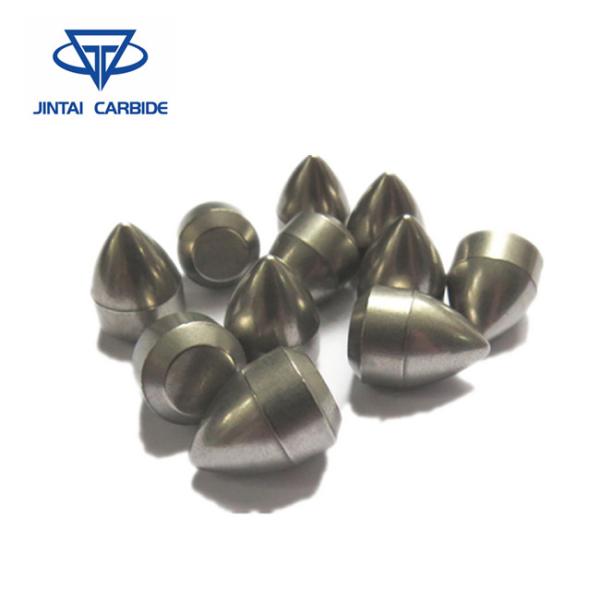

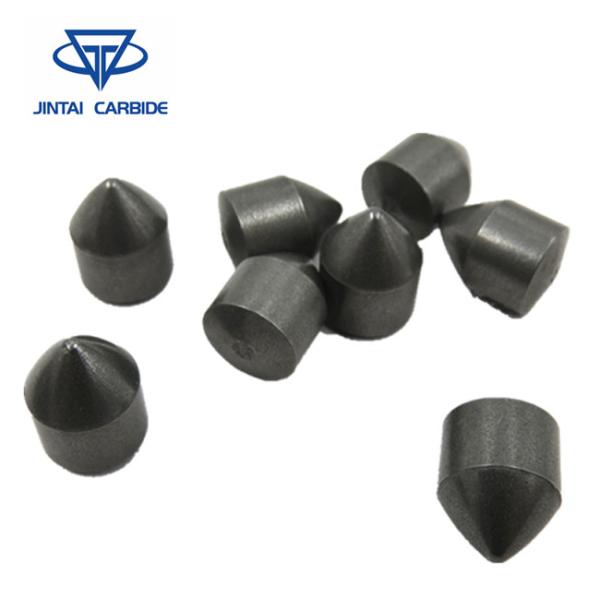

Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Specifications
Brand Name :
Zhuzhou Jintai Cemented Carbide
Model Number :
Carbide Tipped Drill Bits
Certification :
SGS
Place of Origin :
Hunan, China
MOQ :
Negotiable, sample order acceptable
Price :
Negotiable, depends on carbide grade and quantity.
Supply Ability :
20 Ton/Tons per Month
Packaging Details :
Packed in Wooden case and inner in paper box.or we can package by your requirments.
Payment Terms :
Western Union, L/C, T/T
Delivery Time :
7-25 days, depends on quantity
Alloy Specification :
YG6/YG8/YG10X/YG20C
Particle :
Medium
Product name :
Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
Application :
Mining
Material :
100% Virgin Tungsten Carbide
Grade :
YG6/YG8/YG10X/YG20C
Description

Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable​​

Features:

  • Dimensionally stable
  • Fine finish
  • High material strength
  • Suitable grade with good wear resistance property
  • Customized

Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable

Recommended Carbide Grade

Grade Grain Size(%) Binder Hardness (HRA) TRS(Mpa) Density(g/cm3) Grade Description Application
Rock Drilling Conical Bits Oil Exploitation
DK05 medium 6 90.5 2800 14.9-15.00 Can be used for making compacts of various percussion. DTH bits and tricone bits for drilling medium hard formation. ●
PDK20.1 medium 8 89.5 2800 14.65-14.80 Can be used for making compacts of various percussion. DTH bits and tricone bits for drilling mediuin hard formation. ●
DK30.3 medium 9 88.8 2800 14.55_I4.70 Can be used in mining applications where moderate toughness is required.Main application include compacts of tricone rock bits for oil and gas drilling. ●
DK30.4 coarse 9 87.5 2800 14.55_14.70 Can be used for bits of mining and tunnelling. It has excellent toughness and tliemial fatigue property. ● 〇
DK35.1 medium 10 88.3 2800 14.45-14.60 Can be used in mining applications where moderate toughness is requircd.Main applicalion include compacts of tticone rock bits for oil and gas drilling. ●
DK20 coarse 10 87.5 2800 14.40-14.60 Can be used for bits of mining and tunnelling.It has excellent toughness and thermal fatigue property. ● o
PDK35.5 ultra coarse 10 86.6 2200 14.45-14.60 Can be used for bits and shield culler of mining and tunnelling. It has excellent toughness and thermal fatigue property. ● 〇
DK40.1 medium 11 88 2800 14.35-14.50 Can be used in mining applications where moderate toughness is required,Main application include compacts of tricone rock bits for oil and gas drilling ● 〇
DK40.2 coarse 11 86.8 2800 14.35-14.50 Can be used for bits and shield cutter of mining and tunnelling. It lias excellent toughness and thermal fatigue property. ● 〇

● Recommended Grade

〇 Second Selection Grade

Cemented carbide can be used for making the drill bits/ end-mills / reamers; automobile special cutters, printed circuit board special cutters, engine special cutters, horologe processing special cutters, integral vertical milling cutter, graver and etc. Besides, they can be also used for making of cemented carbide stamping head, core bar and perforation tools.

Packaging & Shipping

Zhouzhou Jintai Cemented Carbide products will be packaged in PVX boxes- paper boxes - wooden boxes, then will be deliveried as per customers’ choices.

We can also packing our cemented carbide products as customers’ requirement.

Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable

Our Services

To offer you a correct and fast quotation, your details in the following questions about the carbide you needed will help a lot:

1. carbide grade

2. carbide type and application

3. detailed dimensions(it is better to have a technical carbide drawing)

4. carbide surface treatment

5. other requirements

Once your inquiry reached us, a competitive quotation will reach you in 24 hours.

Company Information

Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable

Zhuzhou JinTai cemented carbide co.,ltd speicialized in design and production of cemeted carbide prodcuts since 2001.

Factory of Zhuzhou JinTai cemented carbide co.,ltd covers more than 13,000 squre meters, located in the Zhuzhou city ,industrial city of Hunan province, China.

Our product includes cemented carbide cutting tools ,engineering components,forming tools,wear parts and related carbide saw materials. Our products are widely used in machinary, mining, electronics, construction,etc.

Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer of tungsten carbide since 2006. We can supply 20 tons tungsten carbide product per month. We can provide customized carbide products as per your requirements.

Q: How long is your delivery time?

A: Generally,it will take 7 to 25 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.

Q: Do you provide samples? iIs it free or charged?

A:Yes, we can offer a sample for free charge but the freight is at customers’ cost.

Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test on our cemented carbide products before delivery.

Rotary Tungsten Carbide Inserts , Carbide Teeth Inserts For Mining OEM Acceptable
