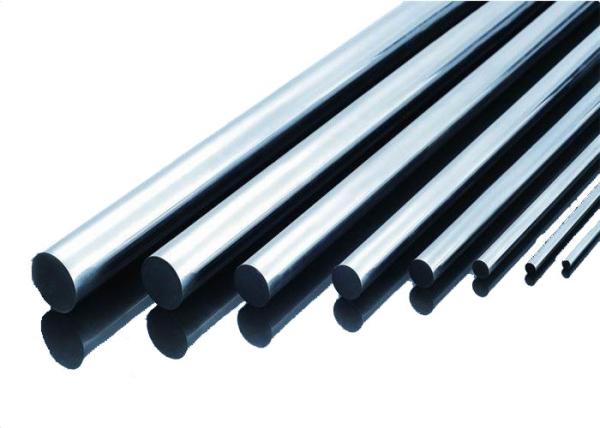

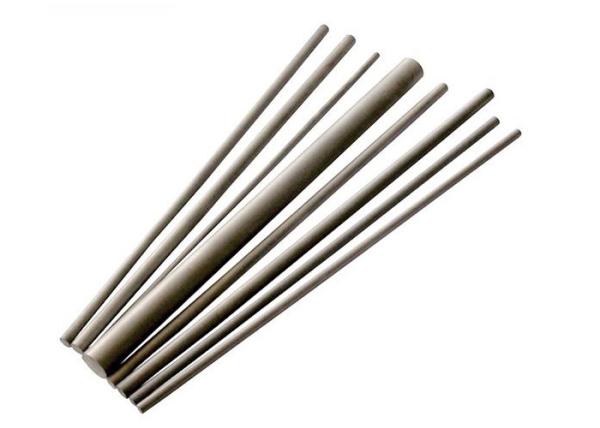

High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
Specifications
Brand Name :
JinTaiPai
Model Number :
Various or Customized dimension available
Place of Origin :
Hunan, China
MOQ :
Negotiable, sample order acceptable
Price :
Negotiable, depends on carbide grade and quantity.
Supply Ability :
300 Ton/Tons per Month
Delivery Time :
7-25 days, depends on quantity.
Packaging Details :
Pack with shock resistance foam first in plastic box, and then carton boxes outside. Or pack according to your request
Certification :
ISO SGS
Payment Terms :
Western Union, L/C, T/T,
Alloy Specification :
K01, K10, K20 carbide grade
Particle :
0.2-1.7um
Product name :
Quality Quality Carbide Rods & Rounds Solid Micrograin Carbide Rod
Material :
100% virgin carbide material
Surface :
High Polished, h6
Certificate :
ISO
Color :
Silver Gray
Application :
Machinery Tools
Description
Tungsten carbide, also known as carbide, is an extremely hard alloy made from tungsten and carbon that offers high wear resistance as well as good corrosion resistance.
Tungsten has good thermal conductivity and lowest thermal expansion of any pure metal. Its corrosion resistance is excellent and it can be attacked only slightly by most mineral acids. Our Tungsten products are widely used in aviation, aerospace, nuclear high-temperature furnace, glass, ceramic, crystal production, medical, illumination and vacuum sputtering etc.

Usage:

1. Tungsten carbide round bars are often used in the manufacture of cutting tools for the metal, wood, plastic and other industries where hardness and wear resistance is required. They are also used to make various drills, PCB cutters, clock and watch tools, integral milling cutters, gravers, etc. Tungsten carbide rods can be made into carbide punches, mandrels, drilling tools, etc.

2. Good straightness , the roundness and surface roughness of finish ground rods are satisfactory .

3. Advanced prodcution , technology ,automatic pressing . HIP sintering and precision grinding.

4. Tungsten carbide rod with high durability and precision

High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod

Properties of cemented carbide grades recommended rods

Grade

Chemical composition

Physical data

Grain size of WC(um)

WC

Co

Others

Density(g/cm³)

Hardness(HV3)

TRS(MPa)

YL10.1

93.5%

6.0%

0.5%

14.88-15.04

1580±50

2500

1.2-1.7

YL10.2

89.5%

10.0%

0.5%

14.4-14.55

1600±50

4000

0.8

YL10.5

89.7%

9.5%

0.8%

14.4-14.55

1550±50

3800

0.7-0.9

YL50

85.0%

15.0%

13.86-14.10

1095

2060

0.4-0.6

YU06

93.0%

6.0%

1.0%

14.7-14.8

2050

3000

0.2-0.4

YU08

91.0%

8.0%

1.0%

14.56-14.65

1900

4000

0.2-0.4

YU09

89.8%

9.0%

1.2%

14.36-14.50

1950

3900

0.2-0.4

YU12

87.0%

12.0%

1.0%

14.05-14.15

1750

4000

0.2-0.4

YF06

93.5%

6.0%

0.5%

14.86-14.96

1800

3800

0.4-0.6

YF08

91.4%

8.0%

0.6%

14.55-14.65

1800

3900

0.4-0.6

YG6X

93.5%

6.0%

0.5%

14.8-15.10

91

1560

1.0

YG8

92.0%

8.0%

14.6-14.9

89.5

1840

1.2-1.6

~ Customized Tungsten carbide products are available!

High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod

Type D(mm) Tol. Of diameter(mm) L(mm) Tol. Of diameter(mm)
￠1.0*330 1.0 +0.2~+0.45 330 0~+5.0
￠2.0*330 2.0 +0.2~+0.45 330 0~+5.0
￠3.0*330 3.0 +0.2~+0.45 330 0~+5.0
￠4.0*330 4.0 +0.2~+0.45 330 0~+5.0
￠5.0*330 5.0 +0.2~+0.45 330 0~+5.0
￠6.0*330 6.0 +0.2~+0.45 330 0~+5.0
￠7.0*330 7.0 +0.2~+0.45 330 0~+5.0
￠8.0*330 8.0 +0.2~+0.45 330 0~+5.0
￠9.0*330 9.0 +0.2~+0.45 330 0~+5.0
￠10.0*330 10.0 +0.2~+0.5 330 0~+5.0
￠11.0*330 11.0 +0.2~+0.5 330 0~+5.0
￠12.0*330 12.0 +0.2~+0.5 330 0~+5.0
￠13.0*330 13.0 +0.2~+0.5 330 0~+5.0
￠14.0*330 14.0 +0.2~+0.5 330 0~+5.0
￠15.0*330 15.0 +0.2~+0.6 330 0~+5.0
￠16.0*330 16.0 +0.2~+0.6 330 0~+5.0
￠17.0*330 17.0 +0.2~+0.6 330 0~+5.0
￠18.0*330 18.0 +0.2~+0.6 330 0~+5.0
￠19.0*330 19.0 +0.2~+0.6 330 0~+5.0
￠20.0*330 20.0 +0.2~+0.7 330 0~+5.0
￠21.0*330 21.0 +0.2~+0.7 330 0~+5.0
￠22.0*330 22.0 +0.2~+0.7 330 0~+5.0
￠23.0*330 23.0 +0.2~+0.7 330 0~+5.0
￠24.0*330 24.0 +0.2~+0.7 330 0~+5.0
￠25.0*330 25.0 +0.2~+0.7 330 0~+5.0
￠26.0*330 26.0 +0.2~+0.8 330 0~+5.0
￠27.0*330 27.0 +0.2~+0.8 330 0~+5.0
￠28.0*330 28.0 +0.2~+0.8 330 0~+5.0
￠29.0*330 29.0 +0.2~+0.8 330 0~+5.0
￠30.0*330 30.0 +0.2~+0.8 330 0~+5.0

High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod

High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod

High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod

High Hardness Tungsten Carbide Rod / Rounds Solid Micrograin Carbide Rod
