Specifications
Place of Origin :
China
Price :
Negotiable, depends on carbide grade and quantity.
MOQ :
1 - 1000 pieces & sample order available
Packaging Details :
Packed in plastic tube,or as your required.
Supply Ability :
20 Ton/Tons per Month
Brand Name :
Jin Tai Pai
Model Number :
D1-D20
Delivery Time :
7-25 days, depends on order quantity.
Certification :
SGS certificated
Payment Terms :
L/C, T/T, Western Union
Product Name :
Carbide end mill
Material :
Carbide, tungsten carbide
Flute :
2 Flutes
Features :
high toughness
Application :
plexiglass. solid wood. MDF. Plastic board etc
Processing Type:= :
Professional Tool Used
Package :
plastic tube
Description

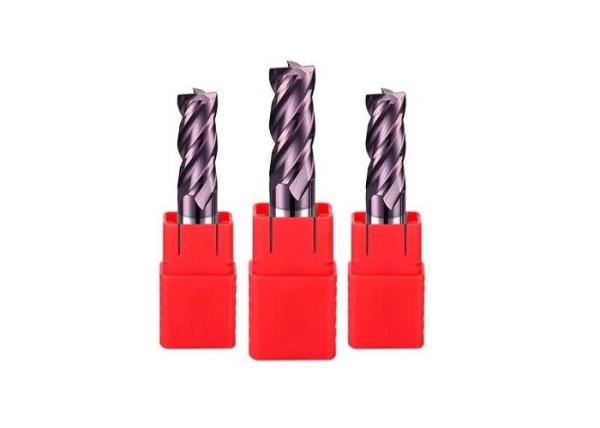

High Toughness Wear Resistance 2 Flute 4 Flute Carbide End Mill

There are many types of milling cutters, such as machining pockets and straight contours for general milling machines and CNC milling machines, machining cavities, cores, and curved profiles/contours on the milling and machining centers.

Milling cutters/end mills are broadly divided into:

1. Square end mill: finish milling or rough milling, milling grooves, removing a large number of blanks, small-area horizontal plane or contour finishing;

2. Ball end milling cutter/end mill: semi-finishing and finishing of curved surface; the small blade can finish milling small chamfer of steep surface/straight wall.

3, Radius end mill: rough milling when the surface change is small, the small concave area is less, and in relatively flat area.

4. Taper end mills: with chamfer, it can be used for rough milling to remove a large number of blanks, and it can also be fine-milled with a small chamfer on the flat surface (relative to the steep surface).

5. Dill

6. Thread mill

7. Formed cutter

Feature

Application:suitable for processing stainless steel, cast iron, copper,carbon steel etc.

Best material: we use the import high quality material

Quality:all our manufactured parts are inspected by advanced zoller mearsurement.

Facility:we have the world lastest 5-axis tools grinding machines.

Flexbility:non-standard sizes are accepted.

We can supply for you with different types and from the low price to high quality.

Specifications

2 flute taper carbide end mill

Type Blade diameter Blade length Shank diameter Total length Taper angle Taper diameter
TP2×6×4D×50L×1° 2 6 4 50 1° 2.21
TP2×6×4D×50L×2° 2 6 4 50 2° 2.41
TP2×6×4D×50L×3° 2 6 4 50 3° 2.62
TP2×6×4D×50L×5° 2 6 4 50 5° 3.05
TP2×6×4D×50L×7° 2 6 4 50 7° 4.47
TP2×6×4D×50L×10° 2 6 4 50 10° 4.11
TP3×10×6D×50L×1° 3 10 6 50 1° 3.35
TP3×10×6D×50L×2° 3 10 6 50 2° 3.69
TP3×10×6D×50L×3° 3 10 6 50 3° 4.05
TP3×10×6D×50L×5° 3 10 6 50 5° 4.75
TP3×10×6D×50L×7° 3 10 6 50 7° 5.46
TP3×10×6D×50L×10° 3 10 6 50 10° 6.53
TP4×15×6D×50L×1° 4 15 6 50 1° 4.52
TP4×15×6D×50L×2° 4 15 6 50 2° 5.04
TP4×15×6D×50L×3° 4 15 6 50 3° 5.57
TP4×15×6D×50L×5° 4 15 6 50 5° 6.62
TP4×15×6D×50L×7° 4 15 8 60 7° 7.68
TP4×15×6D×50L×5° 4 15 8 60 5° 6.62
TP4×15×8D×60L×7° 4 15 8 60 7° 7.68
TP6×20×8D×60L×1° 6 20 8 60 1° 6.7
TP6×20×8D×60L×2° 6 20 8 60 2° 7.4
TP6×20×8D×60L×3° 6 20 8 75 3° 8.1
TP6×20×10D×75L×5° 6 20 10 75 5° 9.5
TP8×20×10D×75L×1° 8 25 10 75 1° 8.87
TP8×20×10D×75L×2° 8 25 10 75 2° 9.74
TP8×20×10D×75L×3° 8 25 12 75 3° 10.62
TP8×25×12D×100L×5° 8 25 12 100 5° 12.37
TP10×35×12D×100L×1° 10 35 12 100 1° 11.22
TP10×35×12D×100L×2° 10 35 12 100 2° 12.44
TP10×35×16D×100L×3° 10 35 16 100 3° 13.67
TP10×35×16D×100L×5° 10 35 16 100 5° 16.12
