Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
Specifications
Place of Origin :
China
Price :
Negotiable, depends on requirement and quantity.
MOQ :
1 - 1000 pieces, sample order available
Packaging Details :
Packed plastic tube, or as your required.
Supply Ability :
20 Ton/Tons per Month
Brand Name :
Jin Tai Pai
Model Number :
D1-D20, OEM service available
Delivery Time :
7-25 days, depends on quantity
Certification :
SGS ISO certificated
Payment Terms :
L/C, T/T, Western Union
Product Name :
flat, radius and ballnose end mill
Material :
Carbide, tungsten carbide
Flute :
2/4
Features :
wear resistance
Usage :
Generally High Speed Cutting
Processing Type :
Professional Tool Used
color :
black, gold and blue
Description

Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter

End mill is the most widely used type of CNC machine tools, end milling cutter cylindrical surface and end face have cutting cutter, they can be cut at the same time, also can be cut separately.Mainly used for plane milling, groove milling, step milling and copying milling. Tungsten carbide end mill commonly have two kinds of materials: high-speed steel, hard alloy.The latter relative to the former high hardness, cutting force, can improve the speed and feed rate, improve productivity, make the knife is not obvious, and the processing of stainless steel titanium alloy and other difficult materials, but the cost is higher, and in the case of rapid alternating cutting force is easy to break the knife.

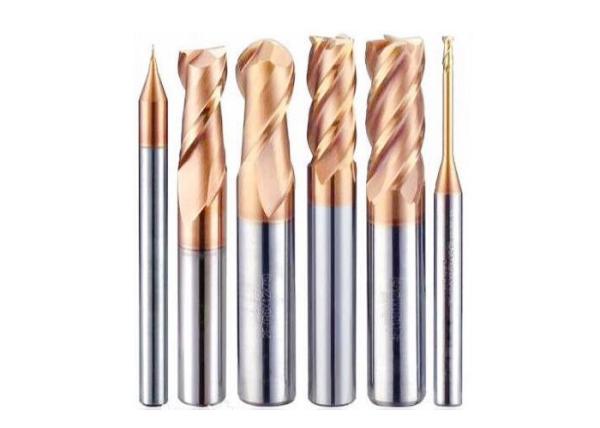

Milling cutters/end mills are broadly divided into:

1. Square end mill: finish milling or rough milling, milling grooves, removing a large number of blanks, small-area horizontal plane or contour finishing;

2. Ball end milling cutter/end mill: semi-finishing and finishing of curved surface; the small blade can finish milling small chamfer of steep surface/straight wall.

3, Radius end mill: rough milling when the surface change is small, the small concave area is less, and in relatively flat area.

4. Taper end mills: with chamfer, it can be used for rough milling to remove a large number of blanks, and it can also be fine-milled with a small chamfer on the flat surface (relative to the steep surface).

5. Dill

6. Thread mill

7. Formed cutter

Specifications

HRC55 Tungsten carbide end mill

Blade diameter range from 0.5mm-10mm, helix angle 35°, hardness: HRC55, suitable for medium and high speed; Features: micro-particle cemented carbide material, WC=88%, CO=12%, TRC>4300N/m2, particle size: 0.5 Um, ideal for carbon steel, alloy steel, stainless steel cast iron mold

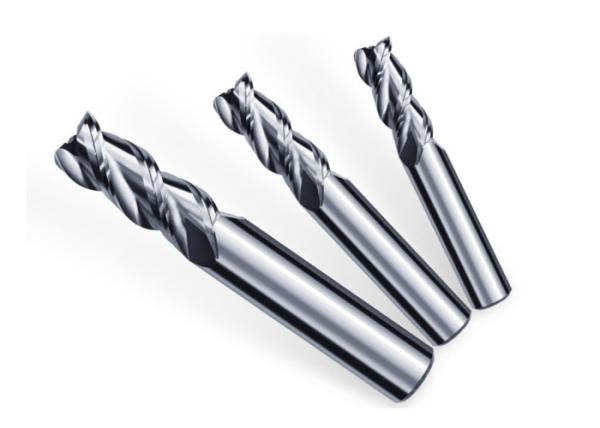

3 flute 45 degree spiral carbide end mill

Type Blade diameter Blade length Shank diameter Total length
1.0×3×4D×50L×3F 1 3 4 50
1.5×4×4D×50L×3F 1.5 4 4 50
2.0×6×4D×50L×3F 2 6 4 50
2.5×8×4D×50L×3F 2.5 8 4 50
3.0×8×4D×50L×3F 3 8 4 50
3.5×10×4D×50L×3F 3.5 10 4 50
4.0×11×4D×50L×3F 4 11 4 50
3.0×8×6D×50L×3F 3 8 6 50
3.5×10×6D×50L×3F 3.5 10 6 50
4.0×11×6D×50L×3F 4 11 6 50
4.5×13×6D×50L×3F 4.5 13 6 50
5.0×13×6D×50L×3F 5 13 6 50
5.5×13×6D×50L×3F 5.5 12 6 50
6.0×15×6D×50L×3F 6 15 6 50
7.0×16×8D×60L×3F 7 16 8 60
8.0×20×8D×60L×3F 8 20 8 60
9×20×10D×75L×3F 9 20 10 75
10×25×10D×75L×3F 10 25 10 75
11×25×12D×75L×3F 11 25 12 75
12×30×12D×75L×3F 12 30 12 75
14×35×14D×100L×3F 14 35 14 100
16×40×16D×100L×3F 16 40 16 100
18×45×18D×100L×3F 18 40 18 100
20×45×20D×100L×3F 20 45 20 100

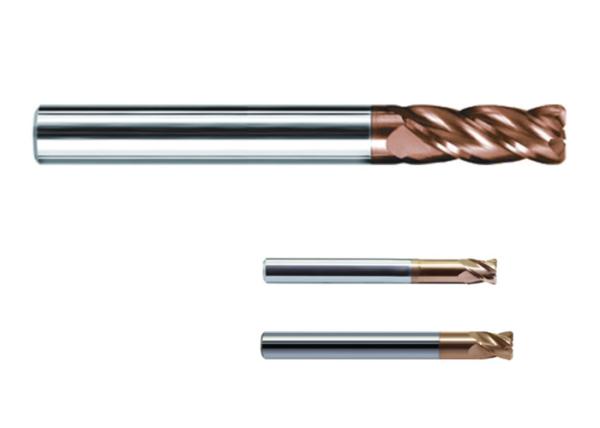

4 flute 45 degree spiral carbide end mill

Type Blade diameter Blade length Shank diameter Total length
1.0×3×4D×50L×4F 1 3 4 50
1.5×4×4D×50L×4F 1.5 4 4 50
2.0×6×4D×50L×4F 2 6 4 50
2.5×8×4D×50L×4F 2.5 8 4 50
3.0×8×4D×50L×4F 3 8 4 50
3.5×10×4D×50L×4F 3.5 10 4 50
4.0×11×4D×50L×4F 4 11 4 50
3.0×8×6D×50L×4F 3 8 6 50
3.5×10×6D×50L×4F 3.5 10 6 50
4.0×11×6D×50L×4F 4 11 6 50
4.5×13×6D×50L×4F 4.5 13 6 50
5.0×13×6D×50L×4F 5 13 6 50
5.5×13×6D×50L×4F 5.5 12 6 50
6.0×15×6D×50L×4F 6 15 6 50
7.0×16×8D×60L×4F 7 16 8 60
8.0×20×8D×60L×4F 8 20 8 60
9×20×10D×75L×4F 9 20 10 75
10×25×10D×75L×4F 10 25 10 75
11×25×12D×75L×4F 11 25 12 75
12×30×12D×75L×4F 12 30 12 75
14×35×14D×100L×4F 14 35 14 100
16×40×16D×100L×4F 16 40 16 100
18×45×18D×100L×4F 18 40 18 100
20×45×20D×100L×4F 20 45 20 100

Applications

1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc

Erosion Resistant 3 Flute 45 Degree Spiral End Mill / Tungsten Carbide Milling Cutter
