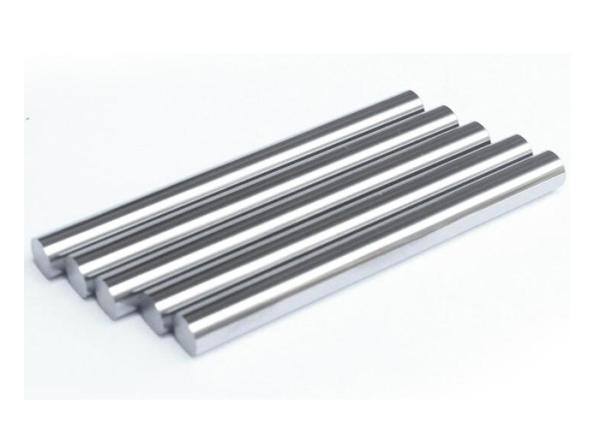

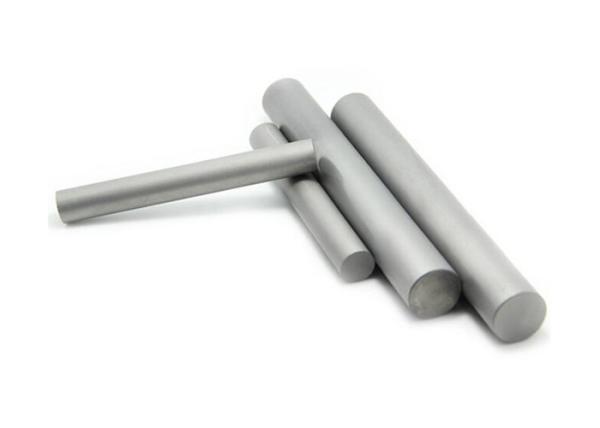

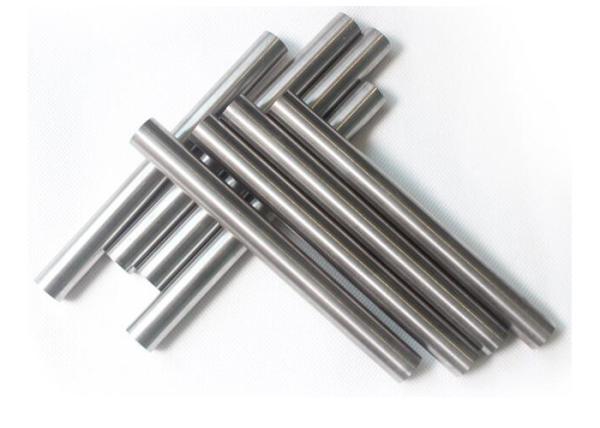

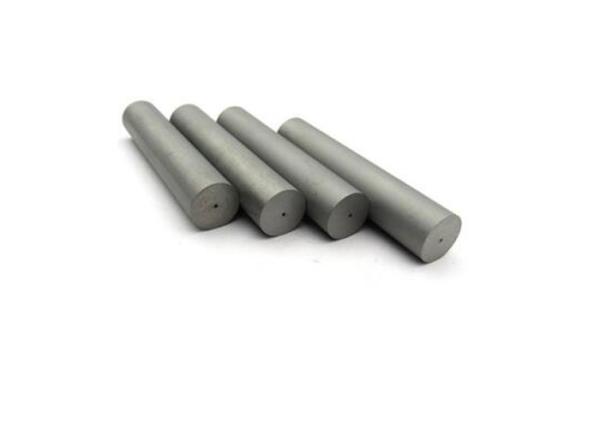

Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
Specifications
Brand Name :
Zhuzhou Jintai Cemented Carbide
Model Number :
Various
Place of Origin :
Hunan, China
MOQ :
1 - 500 Kilograms sample order acceptable
Price :
Negotiable, depends on carbide grade and quantity.
Supply Ability :
300 Ton/Tons per Month
Packaging Details :
Pack with shock resistance foam first in plastic box, and then carton boxes outside. Or pack according to your request
Certification :
SGS
Payment Terms :
Western Union, L/C, T/T
Delivery Time :
7-25 days, depends on quantity.
Alloy Specification :
YG6X/YG8/YL10.2 ETC...
Particle :
0.2-1.7um
Product name :
cemented carbide rods yl10.2 solid tungsten carbide round bars
Material :
100% virgin carbide material
Surface :
High Polished
Certificate :
ISO
Type :
Power Tool Parts
Application :
for carbide tipped annular cutter
Description
Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2

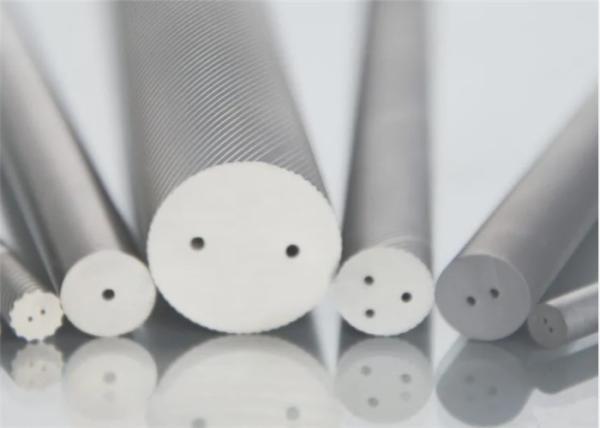

We are the stockist of Carbide Rods of international standard which are used for various purposes in the modern industry. These carbide Rods are of very high strength and grade to fulfil the requirement of industrial processes. Carbide Rods are available in wide range and unique specifications such as ground or ungrounded, solid, single hole or multiple holes in them. These Carbide Rods are used in drill bit, general and specific engine cutters and reamers. Special cutters made with the help of Carbide Rods are used to cut metals and other various types of alloys.

Features of tungsten carbide rod:
As for tungsten carbide rod, below are the general features for your reference
For more details of specific type, please inform us:
1. Better wear resistance, higher toughness, better deformation and fracture resistance, results in a long life and good size accuracy
2. Adopt advanced automatic extrusion equipment
3. HIP sintering and precision grinding to ensure the good performance
4. Both blank and finished tungsten carbide rods available
5. Can reach a mirror effect surface after accurate grinding and polishing

Properties of cemented carbide grades for recommended rods
Grade Chemical composition Physical data Grain size of WC(um)
WC Co Others Density(g/cm³) Hardness(HV3) TRS(MPa)
YL10.1 93.50% 6.00% 0.50% 14.88-15.04 1580±50 2500 1.2-1.7
YL10.2 89.50% 10.00% 0.50% 14.4-14.55 1600±50 4000 0.8
YL10.5 89.70% 9.50% 0.80% 14.4-14.55 1550±50 3800 0.7-0.9
YL50 85.00% 15.00% 13.86-14.10 1095 2060 0.4-0.6
YU06 93.00% 6.00% 1.00% 14.7-14.8 2050 3000 0.2-0.4
YU08 91.00% 8.00% 1.00% 14.56-14.65 1900 4000 0.2-0.4
YU09 89.80% 9.00% 1.20% 14.36-14.50 1950 3900 0.2-0.4
YU12 87.00% 12.00% 1.00% 14.05-14.15 1750 4000 0.2-0.4
YF06 93.50% 6.00% 0.50% 14.86-14.96 1800 3800 0.4-0.6
YF08 91.40% 8.00% 0.60% 14.55-14.65 1800 3900 0.4-0.6
YG6X 93.50% 6.00% 0.50% 14.8-15.10 91 1560 1
YG8 92.00% 8.00% 14.6-14.9 89.5 1840 1.2-1.6

~ Customized Tungsten carbide products are available!

Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2

Type D(mm) Tol. Of diameter(mm) L(mm) Tol. Of diameter(mm)
￠1.0*330 1.0 +0.2~+0.45 330 0~+5.0
￠2.0*330 2.0 +0.2~+0.45 330 0~+5.0
￠3.0*330 3.0 +0.2~+0.45 330 0~+5.0
￠4.0*330 4.0 +0.2~+0.45 330 0~+5.0
￠5.0*330 5.0 +0.2~+0.45 330 0~+5.0
￠6.0*330 6.0 +0.2~+0.45 330 0~+5.0
￠7.0*330 7.0 +0.2~+0.45 330 0~+5.0
￠8.0*330 8.0 +0.2~+0.45 330 0~+5.0
￠9.0*330 9.0 +0.2~+0.45 330 0~+5.0
￠10.0*330 10.0 +0.2~+0.5 330 0~+5.0
￠11.0*330 11.0 +0.2~+0.5 330 0~+5.0
￠12.0*330 12.0 +0.2~+0.5 330 0~+5.0
￠13.0*330 13.0 +0.2~+0.5 330 0~+5.0
￠14.0*330 14.0 +0.2~+0.5 330 0~+5.0
￠15.0*330 15.0 +0.2~+0.6 330 0~+5.0
￠16.0*330 16.0 +0.2~+0.6 330 0~+5.0
￠17.0*330 17.0 +0.2~+0.6 330 0~+5.0
￠18.0*330 18.0 +0.2~+0.6 330 0~+5.0
￠19.0*330 19.0 +0.2~+0.6 330 0~+5.0
￠20.0*330 20.0 +0.2~+0.7 330 0~+5.0
￠21.0*330 21.0 +0.2~+0.7 330 0~+5.0
￠22.0*330 22.0 +0.2~+0.7 330 0~+5.0
￠23.0*330 23.0 +0.2~+0.7 330 0~+5.0
￠24.0*330 24.0 +0.2~+0.7 330 0~+5.0
￠25.0*330 25.0 +0.2~+0.7 330 0~+5.0
￠26.0*330 26.0 +0.2~+0.8 330 0~+5.0
￠27.0*330 27.0 +0.2~+0.8 330 0~+5.0
￠28.0*330 28.0 +0.2~+0.8 330 0~+5.0
￠29.0*330 29.0 +0.2~+0.8 330 0~+5.0
￠30.0*330 30.0 +0.2~+0.8 330 0~+5.0

Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2

Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2Wear Resistance Tungsten Alloy Rod / Tungsten Carbide Round Bar YG6X/YG8/YL10.2
