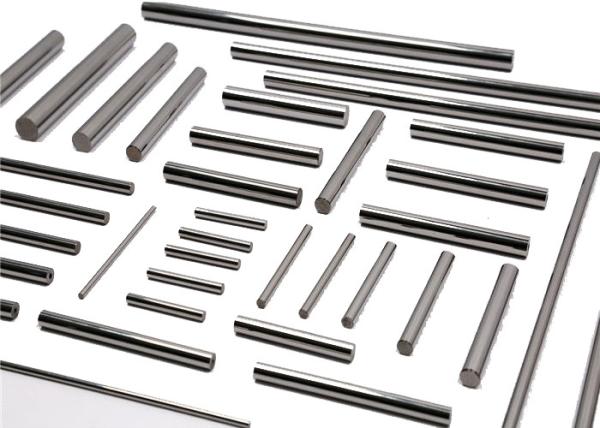

ISO Standard Cemented Carbide Rods , Tungsten Carbide Wear Parts Wear Resistance
ISO Standard Cemented Carbide Rods , Tungsten Carbide Wear Parts Wear Resistance
Specifications
Brand Name :
Zhuzhou Jintai Cemented Carbide
Model Number :
Various
Place of Origin :
Hunan, China
MOQ :
1 - 1000 Kilograms
Price :
Negotiable, depends on carbide grade and quantity.
Supply Ability :
300 Ton/Tons per Month
Packaging Details :
Pack with shock resistance foam first in plastic box, and then carton boxes outside. Or pack according to your request
Delivery Time :
7-25 days, depends on quantity.
Certification :
ISO SGS
Payment Terms :
L/C, T/T, Western Union
Product name :
Tungsten Carbide Rod
Alloy Specification :
YG6X/YG8/YL10.2 ETC...
Particle :
0.2-1.7um
Material :
100% virgin carbide material
Feature :
Excellent wear resistance & high toughness, anti-corrosion
Size :
Customized
Description

Carbide rods, that is, cemented carbide rods, also known as tungsten rods, are simply tungsten rods or carbide rods. Cemented carbide is a composite material composed of a refractory metal compound (hard phase) and a binder metal (bonded phase) produced by powder metallurgy.

Carbide rods are mainly used for drills, end mills, and reamer. It can also be used for cutting, stamping and measuring tools. It is used in the paper, packaging, printing, and non-ferrous metal processing industries. In addition, it is also widely used in the processing of high speed steel tools, carbide milling cutters, carbide tools, NAS cutting tools, aviation tools, carbide drills, milling core drills, high speed steel, taper milling cutters, metric Milling cutters, micro end milling cutters, hinge pilots, electronic cutters, step drills, metal cutting saws, double guaranteed diamonds, guns, angle cutters, carbide rotating jaws, carbide tools, etc.

Features
  • 100% virgin raw material of WC+CO
  • ISO standard
  • Excellent wear resistance & high toughness
  • Have very good thermal & chemical stability
  • Anti-deformation & deflection
  • Customized order is welcomed.

Solid Tungsten Carbide Rod Specification

ISO Standard Cemented Carbide Rods , Tungsten Carbide Wear Parts Wear Resistance

Type D(mm) Tol. Of diameter(mm) L(mm) Tol. Of diameter(mm)
￠1.0*330 1.0 +0.2~+0.45 330 0~+5.0
￠2.0*330 2.0 +0.2~+0.45 330 0~+5.0
￠3.0*330 3.0 +0.2~+0.45 330 0~+5.0
￠4.0*330 4.0 +0.2~+0.45 330 0~+5.0
￠5.0*330 5.0 +0.2~+0.45 330 0~+5.0
￠6.0*330 6.0 +0.2~+0.45 330 0~+5.0
￠7.0*330 7.0 +0.2~+0.45 330 0~+5.0
￠8.0*330 8.0 +0.2~+0.45 330 0~+5.0
￠9.0*330 9.0 +0.2~+0.45 330 0~+5.0
￠10.0*330 10.0 +0.2~+0.5 330 0~+5.0
￠11.0*330 11.0 +0.2~+0.5 330 0~+5.0
￠12.0*330 12.0 +0.2~+0.5 330 0~+5.0
￠13.0*330 13.0 +0.2~+0.5 330 0~+5.0
￠14.0*330 14.0 +0.2~+0.5 330 0~+5.0
￠15.0*330 15.0 +0.2~+0.6 330 0~+5.0
￠16.0*330 16.0 +0.2~+0.6 330 0~+5.0
￠17.0*330 17.0 +0.2~+0.6 330 0~+5.0
￠18.0*330 18.0 +0.2~+0.6 330 0~+5.0
￠19.0*330 19.0 +0.2~+0.6 330 0~+5.0
￠20.0*330 20.0 +0.2~+0.7 330 0~+5.0
￠21.0*330 21.0 +0.2~+0.7 330 0~+5.0
￠22.0*330 22.0 +0.2~+0.7 330 0~+5.0
￠23.0*330 23.0 +0.2~+0.7 330 0~+5.0
￠24.0*330 24.0 +0.2~+0.7 330 0~+5.0
￠25.0*330 25.0 +0.2~+0.7 330 0~+5.0
￠26.0*330 26.0 +0.2~+0.8 330 0~+5.0
￠27.0*330 27.0 +0.2~+0.8 330 0~+5.0
￠28.0*330 28.0 +0.2~+0.8 330 0~+5.0
￠29.0*330 29.0 +0.2~+0.8 330 0~+5.0
￠30.0*330 30.0 +0.2~+0.8 330 0~+5.0

~ Customized Tungsten carbide products are available!
