Plastic IP65 Center Pivot Collector Ring 11 Lines Weather Resistance
Plastic IP65 Center Pivot Collector Ring 11 Lines Weather Resistance
Plastic IP65 Center Pivot Collector Ring 11 Lines Weather Resistance
Plastic IP65 Center Pivot Collector Ring 11 Lines Weather Resistance
Plastic IP65 Center Pivot Collector Ring 11 Lines Weather Resistance
Plastic IP65 Center Pivot Collector Ring 11 Lines Weather Resistance
Specifications
Brand Name :
HOUSEELE
Model Number :
HS-8120/8110
Certification :
CE CERTIFICATE
Place of Origin :
Zhejiang,China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
500 PIECES PER MONTH
Delivery Time :
According to order quantity
Packaging Details :
FOAM WITH CARTON PACKING.SIZE:31X31X53CM
Product name :
collector ring
LINE :
11
Color :
White
Temperature :
-40℃~+80℃
COVER :
PLASTIC
Protection degree :
IP65
Description

Plastic 11 lines collector ring for center pivot irrigation system

Features:

1. with 11 rings the collector ring gives total connection between the main electric panel and the spans

2. Bearing rotate,make sure good performance.

3. the collector ring is water proofed

4. Stainless steel shaft makes long lifetime.

Installation:

The collector ring is installed on the center pivot irrigation frame,consists of rotation part and fixation part.The rotatry structure of rotating prt connected device called "roter:,the fixed part installed on the bracket of the equipment,called "stator"

The "rotar" is fixed through the G1" threaded hole or the G 1/2" threaded hole on the base side.The "stator" is installed on the base through the mouting shaft G1"

Specification:

1. Dynamic contact resistance:<10mΩ

2. Voltage:0-480V/240VAC

3. Current:25Amp per ring

4. Contact material:brass & Carbon brush

5. House material:metal base & ABS cover/aluminium cover

Maintenance:

1. The center piovt collect ring's working temperature:-40℃~+80℃

2. Do not operated the device over the rated voltage and current.

3. Please replace the carbon brush when it is weared more than 1/4 of the original length,

4. Please grease the injection nozzle regularly to prolong the life of bearing.

Product Images:

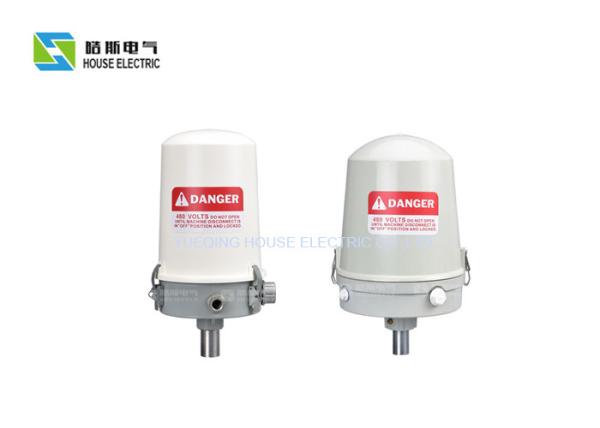

Plastic IP65 Center Pivot Collector Ring 11 Lines Weather Resistance

Drawing:

Plastic IP65 Center Pivot Collector Ring 11 Lines Weather Resistance
