25A Collector Ring For Center Pivot Irrigation System IP65 Protection Degree
25A Collector Ring For Center Pivot Irrigation System IP65 Protection Degree
25A Collector Ring For Center Pivot Irrigation System IP65 Protection Degree
25A Collector Ring For Center Pivot Irrigation System IP65 Protection Degree
25A Collector Ring For Center Pivot Irrigation System IP65 Protection Degree
25A Collector Ring For Center Pivot Irrigation System IP65 Protection Degree
Specifications
Brand Name :
HOUSE ELECTRIC
Model Number :
HS-8110
Certification :
CE CERTIFICATE
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
1000 PIECES PER MONTH
Delivery Time :
according to order quantity
Packaging Details :
FOAM WITH CARTON PACKING.SIZE:31X31X53CM
Product name :
collector ring
Rated Voltage :
480VAC/VDC
Rated Current :
25Amps/circuit
Contact Material :
carbon brush&brass
Working Temperature :
-40℃-80℃
Dielectric Strength: :
1000VAC/50Hz.60S
Operating Humidity :
70%RH or higher
Protection Degree :
IP65
Description

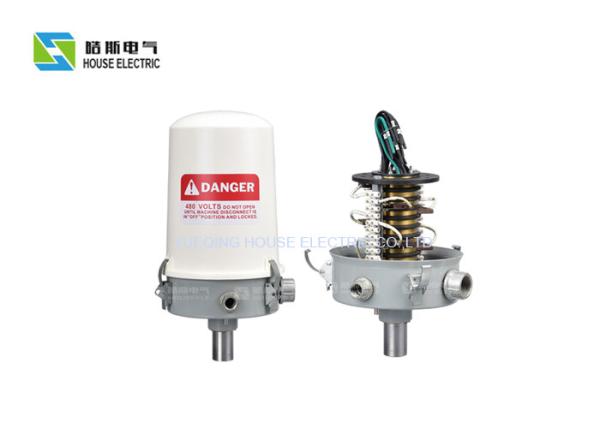

Collector ring for center pivot irrigation system

Features and Advantages:

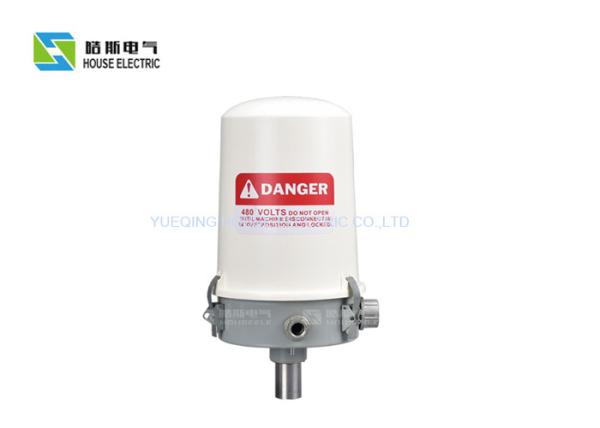

1. The collector ring outer cover of irrigation sprinkler uses engineer plastic,improve the function of impact resistance, weather resistance, UV resistance.
2. The base uses aluminum die cast,guarrantee the hardness ,and more portable .
3. precious metal inside for collective power,life time for 80,000,000times rotation,stability for signal trasmission.
4. Rotor and stator as integrated style, no need for maintenance
5. Encoder and collector ring are integrated structure(),optimize the structure design.
6. more precise and control the moving angle of each span
7. All materials have been treatment by anti corrosion.keep stable operation in harsh climatic conditions.higher protection degree .double protection degree .to ensure the products perform satisfactorily in rain and snow .

Installion Way:

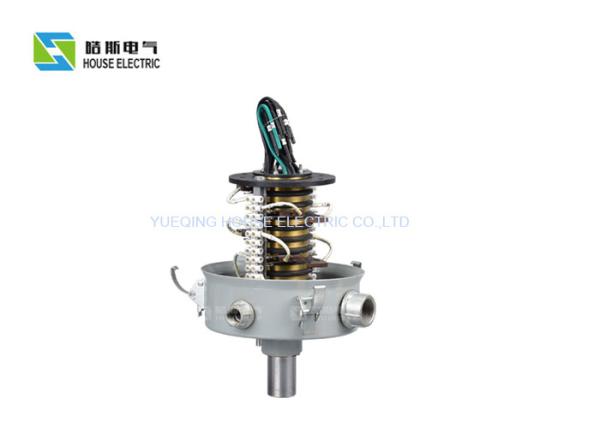

The collector ring install on the center of rotation device ,consist of rotating and stationary. The rotating parts connect on the rotating structure and rotating , called as “rotor”.the stationary parts connect on the fixed structure,called as “stator”.”rotor”connect on base side thread hole G1 or G1/2 .”stator” connect on the bottom base installation axis G1 .

Maintenance Mode:
Not exceed the rated current and voltage.This product rotation of 5-10 minutes with no-load and then plus load .So as not to affect the electrical properties

MORE IRRIGATION SYSTEM SPARE PARTS AS BELOW FOR YOUR CHOOSE:

Collector ring: 7lines,11lines,14lines with plastic cover and aluminum cover
Tower box: Intermediate tower box,last tower box,booster tower box,stall tower box,alignment tower box,ect.
Main control panel: several models for center pivot and linear irrigation system.
Sprinkler and hose: sprinkler with PVC elbow,connector with hose.
Accessories: PERCENTAGE TIMER,VOLT METER,MICRO SWITCH,AC CONTACTOR,VALVE BODY,ROD LINKAGE,RUBBER,HOSE,CLAMP,and so on.
Gearbox and Gearmotor: Chinese model & UMC model

Product Images:
