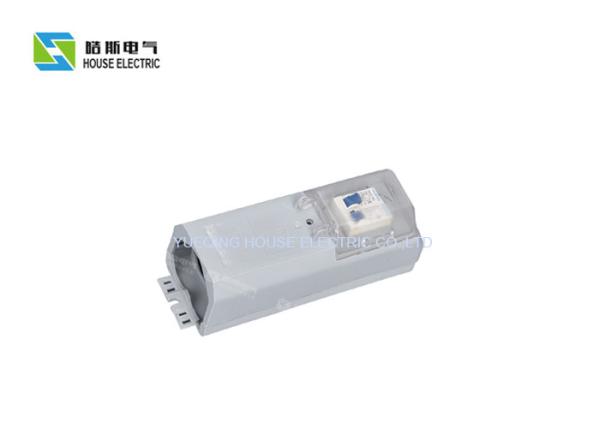

Outdoor Street Lighting Pole Fuse Box , Water Resistant Junction Box
Outdoor Street Lighting Pole Fuse Box , Water Resistant Junction Box
Outdoor Street Lighting Pole Fuse Box , Water Resistant Junction Box
Outdoor Street Lighting Pole Fuse Box , Water Resistant Junction Box
Outdoor Street Lighting Pole Fuse Box , Water Resistant Junction Box
Outdoor Street Lighting Pole Fuse Box , Water Resistant Junction Box
Specifications
Brand Name :
HOUSEELE
Model Number :
EKM2035
Place of Origin :
CHIAN
MOQ :
300PCS
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
10000pcs per month
Delivery Time :
according to quantity
Packaging Details :
Standed export carton
Product name :
Street lighting pole Connection Box
Model :
EKM2035
Color :
Gray
Protection Level: :
IP43
Material :
Plastic
Service :
OEM,ODM
Description

Street lighting pole Connection Box EKM2035

Product Description:

This connection box is intended to be installed in lighting columns at the connection between looped-through feeder cables and the luminaire components timers, residual current devices or the like can be integrated on DIN rails.

Technical Date:

Body Material Impact resistant thermoplastic
Corrosion performance All metal parts corrosion protected
Cover Transparent fuse cover
Ingress protection IP43
Class of Protection II
Electrial performance Input cable section: 16-35mm²
Output cable section: 16-35mm²
Branch feeder cable section: 2.5mm²
Feeder cable current(A): 32A

Selection Cirteria:

For application inside of lighting columns Pole diameter≥ 110mm
Door size ≥ 90x300mm
4 sliding terminals for 2 cables 4-50 mm²
3 cables 4-35 mm²
Optional fuses D II (E27) up to 25A
Optional for standard installation devices on DIN-rail attachable up to 3 TE width(3x18mm),max height of devices 75mm.

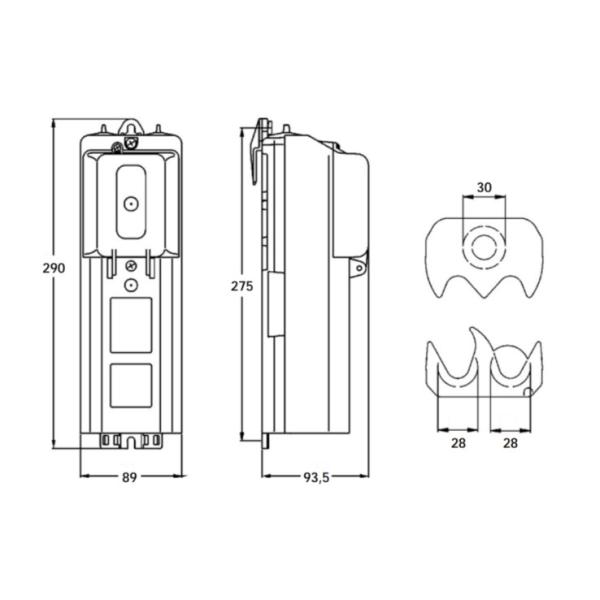

Drawing:

Outdoor Street Lighting Pole Fuse Box , Water Resistant Junction Box

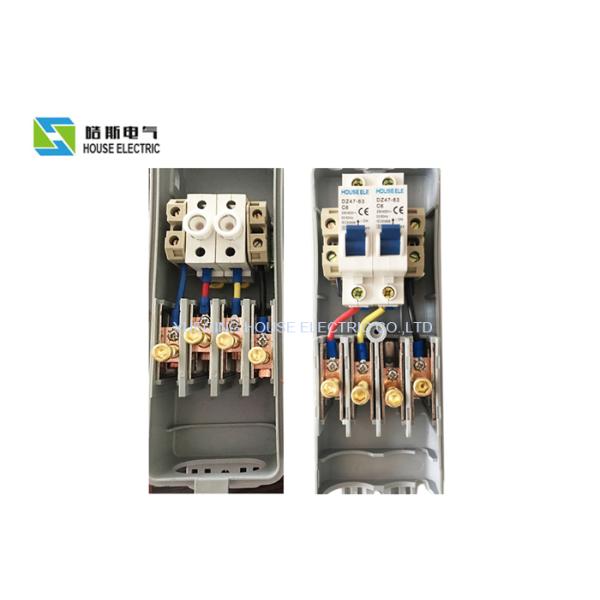

Product Images:
Outdoor Street Lighting Pole Fuse Box , Water Resistant Junction Box
