Specifications
Brand Name :
HOUSEELE
Model Number :
HS-8221-L
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS PER MONTH
Delivery Time :
According to order quantity
Packaging Details :
FOAM AND CARTON PACKING,38X27X40.2CM
Item name :
Last tower box
Color :
Grey and black
Power Source :
Electricity
Rated voltage :
480VAC/VDC
Rated current :
9A/12A/25A
Type :
Irrigator
Installation :
Assembled
Moving Type :
Fixed
Description
Last tower box for agricultural machinery pivot irrigation systems

Installation:

The pivot irrigation tower box Install the equipment through the mounting panel of the tower box,if the mounting hole needs to be special,pls provide addtional drawings or instructions.

Feature:

1. Intermediate tower box,end tower box,and booster tower box,guide tower box

2. Galvanized steel construction,stainless steel shaft and bearing assembly helps to assure long time

3. High quality electrical element and circuits to extend life

4. ABS tower box cover

5. AC contactor: Schneider

6. Micro switch:Omron

Specification:

1. Working temperature: -40℃~+80℃

3. Insulation resistance:≥500MΩ

4. Contactor coil Voltage:110V/220VAC

5. Current:09A,12A,25A

6. House material:metal base with galvanized & pp cover

Advantage:

1. Galvanized steel base for long trouble-free life.
2. Rigid, non-flexing for accurate alignment
3. Will not distort or crack over time
4. Will not degrade over time due to environment
5. UL-approved plastic cover
6. Stainless steel shaft and nylon bearings for smooth operation and long life
7. Steel cam and heavy return spring for safety
8. Exclusive micro-switches.
9. Special brown material minimizes thermal effects for significantly improved alignment accuracy
10 Tested to 10 million cycles under load for long trouble-free life
11 Adjusting screw to set trip point - don't need to bend arm to adjust
12. Stainless steel internal springs for long life
13. Heavy-duty contactor
14. External emergency on / off switch to shut down pivot.
15 Each tower box is factory-set and functionally tested to ensure proper operation.

MORE IRRIGATION SYSTEM SPARE PARTS AS BELOW FOR YOU CHOOSE:

Collector ring: 7lines,11lines,14lines with plastic cover and aluminum cover
Tower box: Intermediate tower box,last tower box,booster tower box,stall tower box,alignment tower box,ect.
Main control panel: several models for center pivot and linear irrigation system.
Sprinkler and hose: sprinkler with PVC elbow,connector with hose.
Accessories: PERCENTAGE TIMER,VOLT METER,MICRO SWITCH,AC CONTACTOR,VALVE BODY,ROD LINKAGE,RUBBER,HOSE,CLAMP,and so on.
Gearbox and Gearmotor: Chinese model & UMC model

Product Images:

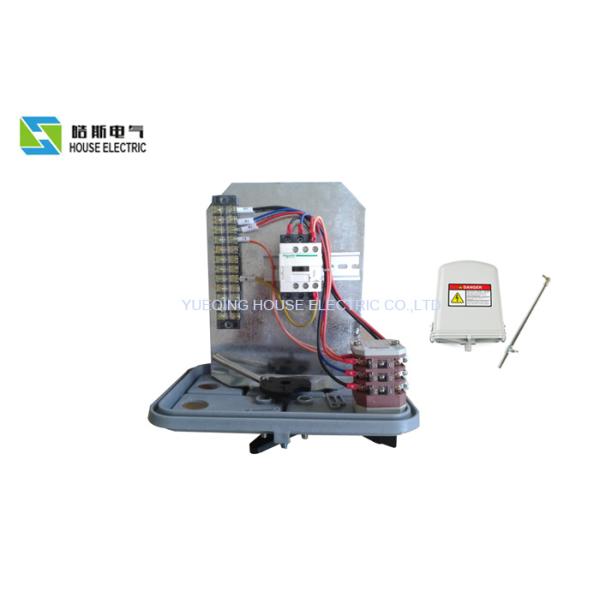

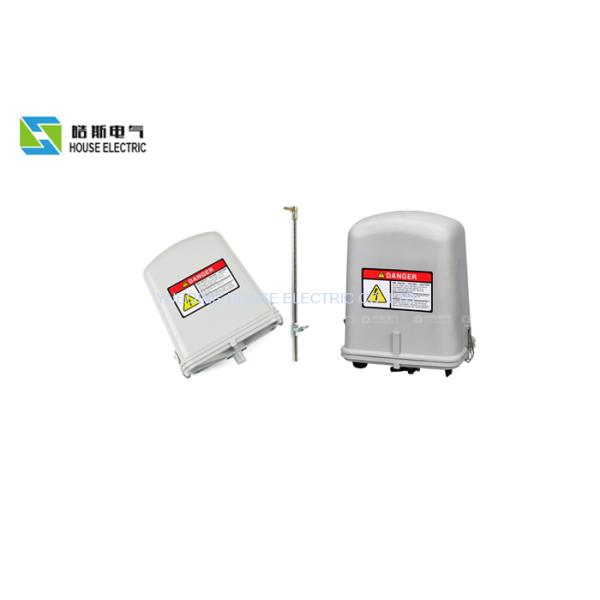

Last Tower Box For Pivot Irrigation Fixed Moving Type Stainless Steel ShaftLast Tower Box For Pivot Irrigation Fixed Moving Type Stainless Steel Shaft
