Eletrical Irrigation System Rotary CAM Switch , Motor Reversing Cam Switch
Eletrical Irrigation System Rotary CAM Switch , Motor Reversing Cam Switch
Eletrical Irrigation System Rotary CAM Switch , Motor Reversing Cam Switch
Eletrical Irrigation System Rotary CAM Switch , Motor Reversing Cam Switch
Eletrical Irrigation System Rotary CAM Switch , Motor Reversing Cam Switch
Eletrical Irrigation System Rotary CAM Switch , Motor Reversing Cam Switch
Specifications
Brand Name :
HOUSEELE
Model Number :
LW26-20
Place of Origin :
Zhejiang,China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
100000 PIECES PER MONTH
Delivery Time :
According to order quantity
Packaging Details :
Standed export carton
Name :
Changover switch
Item no :
LW26-20
Color :
Blue and black
Function :
Circuit Control
Mechanical Life :
100000 Times, 120/hour
Rated insulation voltage :
660/690V
Service :
OEM,ODM
Type :
ON-OFF rotary switch
Description

LW26-20 on off CAM selector switch for eletrical irrigation system

Product Description:

1. LW26 sereis changeover switch is used in the circuits of AC 50Hz,rated voltage up to 690V,DC voltage up to240V,rated current up to 100A

2. LW26 sereis changeover switch not frequently switch on/off electrical circuits, transfer and control circuits

3. LW26 sereis changeover switch also can directly control small capacity motor or be used for master control or electric meters

4. LW26 sereis changeover switch is used widely in circuit control,test equipment, switch for motor,master control,welding machine and etc.

Advantages:

Small size. Multifunctin, compact structure, high quality material, good insulation, agile operation, reliability, safety, good apperance.

Technical parameters
Description LW26-20
Rated working voltage Ue V 440
Rated thermal current Ith A 20
Rated working current Ie
AC-21A A 20
AC-22A A 20
AC-23A A 15
power P
AC-23A KW 7.5
Operation
Non-load 8500
load 1500
Total 10000

Working Conditions:

1. Ambient temperature not more than 50℃,the average per 24 hours not exceeds 35℃

2. Lowest temperature not less than -25 ℃
3. The altitude not more tahn 4000m.
4. At highest temprature +50 ℃,the relative humidity not over 50%,at lower temprature,higher humidity is allowed,such as at 20 ℃,90% humidity allowed.It shall be adopt the special treatment against the condensation water

We are professionally manufacture center pivot irrigation system spare parts in China,our products as belows:

Collector ring: 3models for valley and zimmatic irrigation system

Tower box: at least 10 models for both valley and zimmatic irrigation system

Main control panel:several models for center pivot and linear irrigation system.

Sprinkler: Sprinkler head,hose,weight,connector.

Gearmotor and Gear box:with coupler and coupler protector

Accessories: PERCENTAGE TIMER,VOLT METER,MICRO SWITCH,AC CONTACTOR,VALVE BODY,ROD LINKAGE,RUBBER,HOSE,CLAMP,AND SO ON.

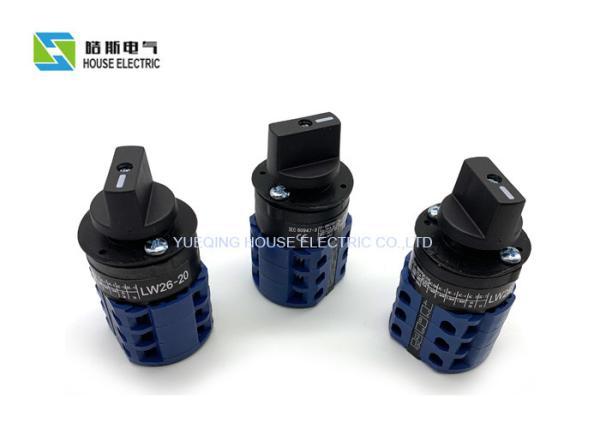

Product Images:

Eletrical Irrigation System Rotary CAM Switch , Motor Reversing Cam SwitchEletrical Irrigation System Rotary CAM Switch , Motor Reversing Cam Switch
