Plastic Center Pivot Irrigation Parts / Magnetic Long Lever Micro Switch
Plastic Center Pivot Irrigation Parts / Magnetic Long Lever Micro Switch
Plastic Center Pivot Irrigation Parts / Magnetic Long Lever Micro Switch
Plastic Center Pivot Irrigation Parts / Magnetic Long Lever Micro Switch
Plastic Center Pivot Irrigation Parts / Magnetic Long Lever Micro Switch
Plastic Center Pivot Irrigation Parts / Magnetic Long Lever Micro Switch
Plastic Center Pivot Irrigation Parts / Magnetic Long Lever Micro Switch
Plastic Center Pivot Irrigation Parts / Magnetic Long Lever Micro Switch
Specifications
Brand Name :
HOUSEELE
Model Number :
HS-15GW22-B3
Place of Origin :
Zhejiang,China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
100000 PIECES PER MONTH
Delivery Time :
According to order quantity
Packaging Details :
Standed export carton
Name :
Micro switch
Model no :
HS-15GW22-B3
Material :
Plastic
Color :
Black
Electrical Life :
100,000 times above
Mechanical Life :
1,000,000 times above
Contact gap :
0.5mm( standard)
Protection Level :
IP40
Description

Limit Micro Switch for irrigation tower box

Application:

1. Adopt thermostable phenolic plastic crust
2. Small contact gap, snap action, high sensitivity and small operating travel
3. Variety of levers
4. Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc


Technical Specifications:

Item
Data
Operation speed
0.1mm-1m/s
Operation frequency
Mechanical
240times/min
Electrical
20times/min
Insulation resistance
100MΩ(above)(DC500V)
Contact resistance
25mΩ Initial value
Withstand voltage
Non-connection wire
1000VAC
Every terminal
1500VAC
Vibration
Misoperation
10-55Hz (Amplitude)1.5mm
Impact
Durable
1000m/s
Misoperation
300m/s
Life
Electical
100,000 times(above)
Mechanical
1,000,000 times(above)
Protection degree
IP40
Ambient operating temperature
-25-80°c
Humidity
<85%
Ue(V)
Le(A)
1th(A)
AC-250
15
20
AC-125
15
20
DC-250
0.3
0.45
DC-125
0.6
0.75

Our Services:

We greatly appreciate your positive feedback and will do the same.
Please kindly contact us before you decide to leave any neutral or negative feedback.
We will try our utmost to help you solve the problem. Your information for us will be protected strictly.

Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your new inquiry ASAP.

Any questions about more items, please feel free to contact us.

We are sincerely looking forward to establish cooperative relationship with you.

Free sample is available !

If you need any parts, please kindly send us your drawings or sample for quotation

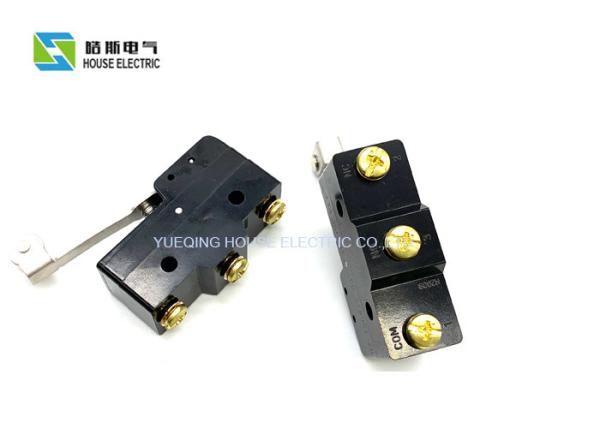

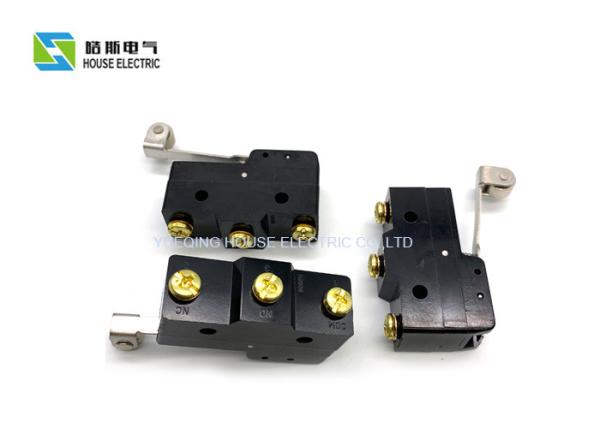

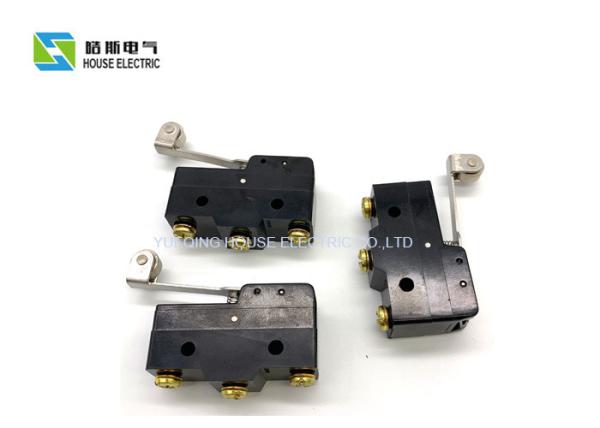

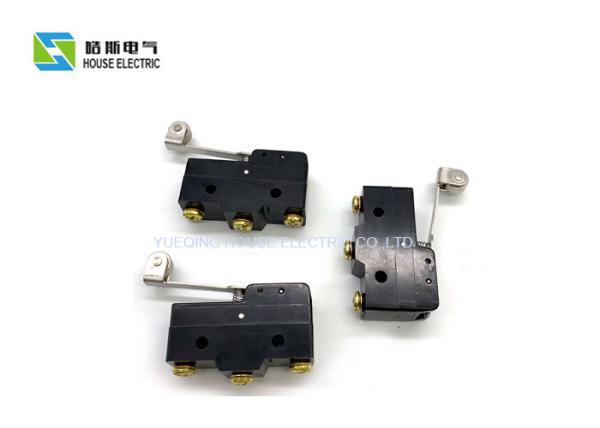

Product Images:

Plastic Center Pivot Irrigation Parts / Magnetic Long Lever Micro Switch
