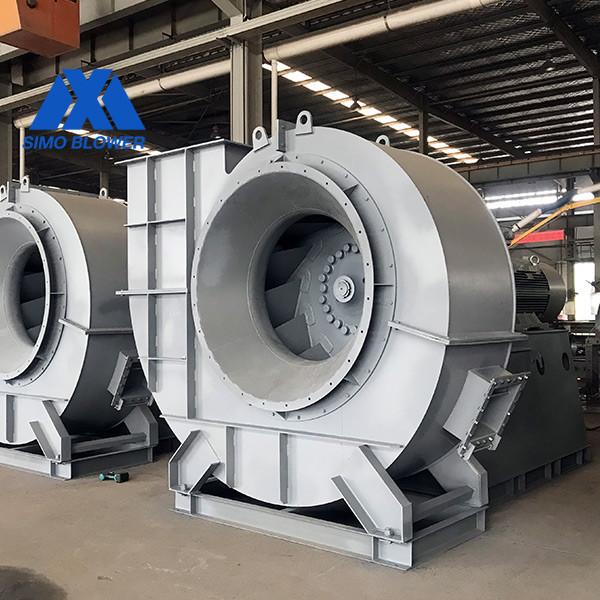

Centrifugal Blower Fan (GY6-41)

Application of Y6-41 Boiler Centrifugal Fan

Y6-41 boiler centrifugal steam drum and induced draft fan are not suitable for 0.5~10t/h industrial boilers and low-noise boiler drums designed to burn various types of coal and equipped with dust removal devices. The efficiency of the induced draft fan is higher than 80%. In the case of comparable intake conditions, performance and suitability can be selected.

GY6-41 Boiler Centrifugal Fan Application

The fan is usually used in conjunction with industrial boilers, and there are induced draft fans and induced draft fans for various industrial boilers with an evaporation capacity of 0.5t to 10t/h.

GY6-41 boiler centrifugal fan form

G6-41 type represents the boiler fan; Y6-41 type represents the boiler induced draft fan.
Ventilation fans and induced draft fans can be made into two forms of "right" rotation and "left" rotation. Facing the fan from the direction of the drive shaft, if the fan impeller rotates clockwise, it is called right-handed, and it is "right"; if it is counterclockwise, it is called left-handed, and it is represented by "left".The fan adopts single suction type. The position of the air outlet of the fan is indicated by the angle of the air outlet of the shell. "Left" and "right" can be made into four angles of 0°, 90°, 180°, and 270°, and can also be made into other angles as required. The boiler fan can be designed in A-type and D-type transmission mode, and the induced draft fan can be designed in C-type or D-type transmission mode. "

company introduction

Xinxiang SIMO BLOWER Limited Company which was founded in 1995, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association. SIMO BLOWER is one of the main large fan manufacturers in Central China, whichcovers an area of 100,000 square metres, owns more than 200 employees and the production capacity of 15000 sets one year.
There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
