CSS Marine Biodiesel Waste Oil Separator Centrifuge Touch Screen control
CSS Marine Biodiesel Waste Oil Separator Centrifuge Touch Screen control
Specifications
Brand Name :
Fivemen
Model Number :
KYDH Systems
Certification :
ISO/CSS
Place of Origin :
China
MOQ :
1 set
Price :
USD 9000-55000/ unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
30 days after deposite
Packaging Details :
wooden box for disc waste oil centrifuge
power :
4KW- 18.5kw
Capacity (l/h) :
1000L/H-10000l/h
MOC :
ss304/316L
application :
Heavy Fuel Oil, Lubrication Oil,Steam Turbine Oil
control model :
PLC and common one
bearing :
SKF or FAG
Description

Industrial centrifuge price biodiesel centrifuge machine waste oil separator for diesel engine fuel oil handling system

Descripition:

KYDH series separator is mainly applied in the purification and clarification of the diesel, light fuel oil, heavy fuel oil and other mineral oil, to remove the water, moisture, mechanical impurities and some harmful substances of the oil. This model is automatic slag type, high separation efficiency, no need to disassemble to slag. It can be automatic controlled according to requirement which greatly reduce the labor intensity of the operating. This machine by the accurate calibration balancing, little vibration, can be long-running and operated safety and reliable.

  • The machine adopts automatic control, it has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.
  • The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.
  • The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time with low vibration, safety and security.
  • The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.

We supply complete power plants based on HFO and/or Diesel fuel worldwide,using either low or middle speed (less than 1000rpm) gensets,These power plants are for baseload,peak shaving or standalone application,ranging from few megawatts to hundreds power plants. we supply HFO or dual oil (Fo and crude oil) as fuel to generate the electric power station.

Our waste oil separators are used in inland rivers, offshore and ocean shipping have achieved ISO and CCS approval certificate, and the products used in fishing boats also passed the fishery inspection. we have exported to the Mauritius which is used to separate the waste oil in ship.
Our advantages:
1, the PLC adopts Siemens Touch Screen control box
2, can achieve the self cleaning
3, ABB or Siemens or Taiwan DELTA converter
4, 18 years wearing parts
5, if you buy the system, Our engineer can go your place to help install the machine, for first week, it's for free, no charge.
6, provide the installation video

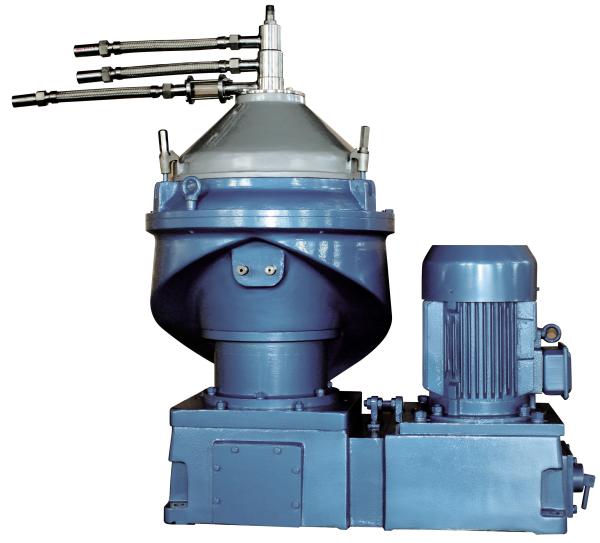

CSS Marine Biodiesel Waste Oil Separator Centrifuge Touch Screen control

Main technical parameters

No. Model

Capacity

(l/h)

Drum diameter

(mm)

 Drum speed

Motor Power

(KW)

 Discharge way Separator factor Weight(kg) Size(mm*mm*mm)
1 KYDR203SD-23 1500 230 6930 2.2 Manual 6170 245 850*625*985
2 KYDH204SD-23 2000 270 7200 4 Automatic 6950 550 865*645*1100
3 KYDH206SD-23 3000 315 6500 5.5 Automatic 7000 650 900*600*1150
4 KYDH207SD-23 4000 385 6500 7.5 Automatic 7500 750 1100*1050*1250
5 KYDH209SD-23 5000 430 6000 11 Automatic 8050 900 1200*950*1400
6 KYDH470/ZYDH470 8000 470 5800 18.5 automatic 8500 1100

1250*1000*1550
7 KYDH211SD-23 10000 500 5500 18.5 automatic 8500 1200 1250*1100*1550
Separation conditions and actual productivity of mineral oil

Item Fuel oil Lube oil
viscosity/(mm2/s Distillate Fuel Oil residual fuel oil Brand oil purified oil Steam turbine oil
1.9~5.5 5.5~24 60 80 120 180 380 460 600 100~120 61.2~74.8
40°C 50°C 40°C 40°C

Density/

(kg/mm3)(20°C)

 <900 900~991 880~900 <900
separation temperature/°C 20 40 75 80 90 98 80 75

The ratio of actual productivity and rated capacity

%

 130 100 70~75 60~65 55~60 45~50 35~40 25~30 20~25 50~60 25~30 80~85

Note: the ratio of actual productivity and rated capacity is 100%

The Whole Unit Consists of:

1. Separator 2. Screw pump 3.Electric control box 4. Steam heater 5. Temperature adjusting valve

6. High temperature ball valve 7. Steam trap 8. Temperature sensor 9. Pneumatic Three-way valve

10. Stop-check valve 11. Oil filter 12. Vacuum gauge 13. Pressure gauge

14. Air pressure reducing valve 15. 3/2 Solenoid valve 16. Ball valve 17. Brass filter ball valve

18. Water pressure reducing valve 19. 2/2 Solenoid valve 20. 2/2 Solenoid valve

21. Pressure switch 22.Skid

CSS Marine Biodiesel Waste Oil Separator Centrifuge Touch Screen control

Photos

CSS Marine Biodiesel Waste Oil Separator Centrifuge Touch Screen control

CSS Marine Biodiesel Waste Oil Separator Centrifuge Touch Screen control
