Heavy Fuel Oil Centrifugal Solid Liquid Separator Vertical Bowl Cylinder Large Volume
Heavy Fuel Oil Centrifugal Solid Liquid Separator Vertical Bowl Cylinder Large Volume
Heavy Fuel Oil Centrifugal Solid Liquid Separator Vertical Bowl Cylinder Large Volume
Heavy Fuel Oil Centrifugal Solid Liquid Separator Vertical Bowl Cylinder Large Volume
Specifications
Brand Name :
Fivemen
Model Number :
KYDH Systems
Certification :
ISO/CSS
Place of Origin :
China
MOQ :
1 set
Price :
USD 9000-55000/ unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
30 days after deposite
Packaging Details :
wooden box for disc waste oil centrifuge
Speed :
7200-5800
power :
4KW- 18.5kw
Capacity (l/h) :
1000L/H-10000l/h
discharge :
automatic and manual
MOC :
SS304/316L ECT
application :
Fuel Oil, Diesel Oil, HFO, Lubricant, Etc.
control model :
PLC and common one
separation factor :
8500
Description

Heavy Fuel Oil Centrifugal Solid Liquid Separator Vertical Bowl Cylinder Large Volume

Descripition:

We supply complete power plants based on HFO and/or Diesel fuel worldwide,using either low or middle speed (less than 1000rpm)

gensets,These power plants are for baseload,peak shaving or standalone application,ranging from few megawatts to hundreds power plants.we

supply HFO or dual oil (Fo and crude oil) as fuel to generate the electric power station.

KYDH series separator is mainly applied in the purification and clarification of the diesel, light fuel oil, heavy fuel oil and other mineral oil, to

remove the water, moisture, mechanical impurities and some harmful substances of the oil. This model is automatic slag type, high separation

efficiency, no need to disassemble to slag. It can be automatic controlled according to requirement which greatly reduce the labor intensity of the

operating. This machine by the accurate calibration balancing, little vibration, can be long-running and operated safety and reliable.

The machine adopts automatic control, it has the advantages of high efficiency, low oil consumption, convenient operation and economic

maintenance cost.

The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.

The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time with low vibration, safety and security.

The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.

Our waste oil separators are used in inland rivers, offshore and ocean shipping have achieved ISO and CCS approval certificate,


and the products used in fishing boats also passed the fishery inspection. we have exported to the Mauritius which is used to separate the waste
oil in ship.
Working principle:
Disc centrifuge is a centrifugal separator which can separate solid matter from two kinds of different density liquids on a continuous basis and also
to separate two liquids simultaneously. By reducing process cycle time and labor requirements, these separators offer high cost efficiency in liquid
clarification and reclamation, solid-liquid separation and its classification, recovery and thickening of solids and in other such processes.
Our advantages:
1, the PLC adopts Siemens Touch Screen control box
2, can achieve the self cleaning
3, ABB or Siemens or Taiwan DELTA converter
4, 18 years wearing parts
5, if you buy the system, Our engineer can go your place to help install the machine, for first week, it's for free, no charge.
6, provide the installation video
7, select the single or whole unit oil separator according to your requirements.
8. can Movable and Fixed

Main technical parameters

No. Model

Capacity

(l/h)

Drum diameter

(mm)

 Drum speed

Motor Power

(KW)

 Discharge way Separator factor Weight(kg) Size(mm*mm*mm)
1 KYDR203SD-23 1500 230 6930 2.2 Manual 6170 245 850*625*985
2 KYDH204SD-23 2000 270 7200 4 Automatic 6950 550 865*645*1100
3 KYDH206SD-23 3000 315 6500 5.5 Automatic 7000 650 900*600*1150
4 KYDH207SD-23 4000 385 6500 7.5 Automatic 7500 750 1100*1050*1250
5 KYDH209SD-23 5000 430 6000 11 Automatic 8050 900 1200*950*1400
6 KYDH470/ZYDH470 8000 470 5800 18.5 automatic 8500 1100

1250*1000*1550
7 KYDH211SD-23 10000 500 5500 18.5 automatic 8500 1200 1250*1100*1550
Separation conditions and actual productivity of mineral oil

Item Fuel oil Lube oil
viscosity/(mm2/s Distillate Fuel Oil residual fuel oil Brand oil purified oil Steam turbine oil
1.9~5.5 5.5~24 60 80 120 180 380 460 600 100~120 61.2~74.8
40°C 50°C 40°C 40°C

Density/

(kg/mm3)(20°C)

 <900 900~991 880~900 <900
separation temperature/°C 20 40 75 80 90 98 80 75

The ratio of actual productivity and rated capacity

%

 130 100 70~75 60~65 55~60 45~50 35~40 25~30 20~25 50~60 25~30 80~85

Note: the ratio of actual productivity and rated capacity is 100%

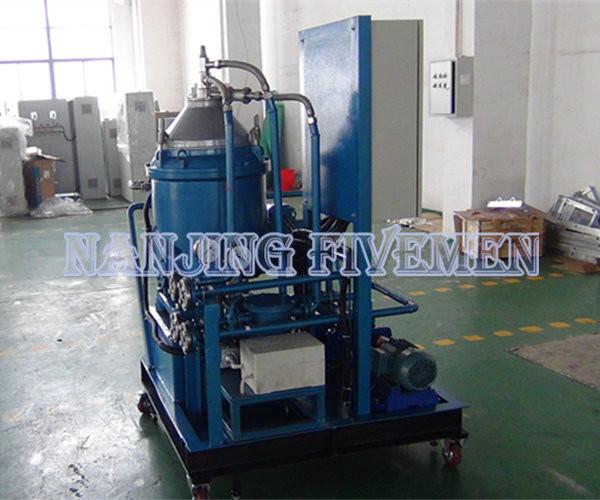

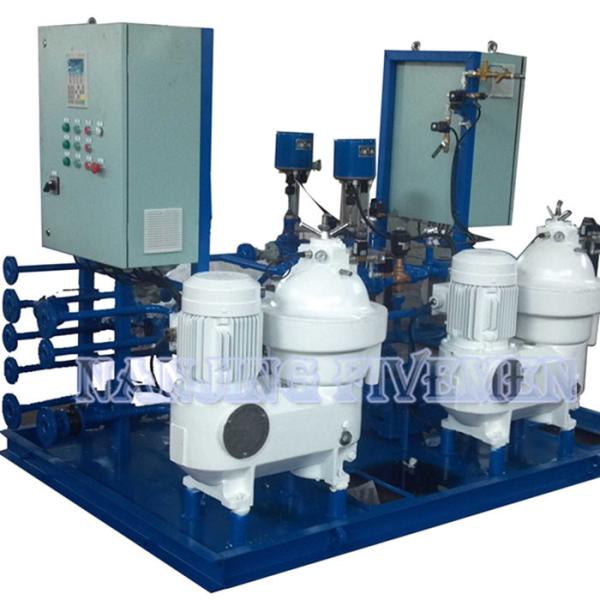

Photos

Heavy Fuel Oil Centrifugal Solid Liquid Separator Vertical Bowl Cylinder Large Volume

Heavy Fuel Oil Centrifugal Solid Liquid Separator Vertical Bowl Cylinder Large Volume
