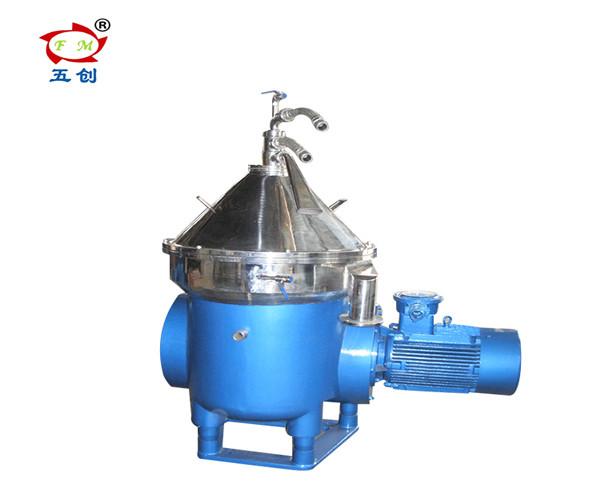

ZYDH385 Oil Separator Machine Disc Stack Centrifugal / Oil Extraction Machine
ZYDH385 Oil Separator Machine Disc Stack Centrifugal / Oil Extraction Machine
Specifications
Brand Name :
Fivemen
Model Number :
ZYDH385
Certification :
ISO
Place of Origin :
China, Jiangsu
MOQ :
1 set
Price :
USD 8000-14000 /Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
30 days after deposite
Packaging Details :
Standard with wooden case and poly film wrapping for disc centrifuge separator
capacity :
4000L/H
Speed :
6500r/min
separation factor :
7500
Power :
7.5kw
Slag discharge way :
automatic
operation :
automatic continuous operation
Description

ZYDH385 Oil Separator Machine Disc Stack Centrifugal / Oil Extraction Machine

Introduction:

Separator has many advantages, such as separation factor high, running balance, simple operation, low oil consumption. In order to meet different requirements of production scale, the machine adopt bottom washing. Facilitate liquid seal and exclusive soap, the heart pump discharge the material, reducing system operating pressure. Regulate different specific gravity ring, can be suitable for all kinds of oil, so that better separation.


Feature:

1. Automatic discharge mode, include partly discharge and fully discharge.

2. Applied Labyrinth seal mode, centripetal pump discharge light liquid, with a big outlet pressure, separated light liquid can be directly transported.

3. Centripetal pump system with stable output pressure, large adjustment range, easy operation.

4. Power transmission applied frequency conversion start, running smoothly, no noise and odor pollution.

5. This series disc centrifuge specially designed with safety protection device of automatic control cabinet, all parameters can be adjusted directly r on the touch screen, so that the separation of discharge achieve the best effect.

6. With electric motor protection device (including automatic start-up and normal operation).

7. Small piston with double piston structure, large amount of discharge and more stable, low power consumption, more energy saving.

8. Light or heavy liquid phase outlet could be adjusted by online pressure regulating structure, clarity of light or heavy phase can be adjusted according to end user request.

9. Panel control clear and intuitive, simple and easy operation

Techincal Parameters:

Model

Capacity

(L/h) for input(coconut milk)

 Basket Diameter (mm) Rotation Rate of Drum (r/m) Separation factor Power (KW)

Slag discharge

way

Weight

(kg)

Dimension

(mm*mm*mm)
ZYDH270 300 270 7200 6950 4 automatic 550 865*645*1100
ZYDH315 500 315 6500 7000 5.5 automatic 650 900*600*1150
ZYDH385 600 385 6500 7500 7.5 automatic 750 1100*1050*1250
ZYDH430 800 430 6000 8050 11 automatic 900 1200*950*1400
ZYDH470 1200-1500 470 5800 8500 18.5 automatic 1100 1250*1000*1550

Working principle :

Zydh can separate rapid succession of solid liquid and liquid liquid ,which is a kind of vertical centrifuge.

A rotary drum is install in the upper end of vertical shaft, the driving device driven by a motor to rotate at high speed. Drum have a set of a butterfly shaped parts mutually overlapped together. Have a very small space left between the disc and disc.Suspension pour into drum by feeding tube which is located center of the drum.When the slurry flows past the clearance between the disc, solid particles in centrifuge sinking to the sediment is formed on the disc. Sediment falls of the disc along the sliding surface of the disc and accumulate in the drum at the largest diameter. The separation of the liquid exhaust drum from the liquid outlet .The function of the disc is to short the distance between the settlement of solid particles or liquid droplets and to expand the area of settlement of the drum.Because the installation disc in the drum and greatly improves the separators’ production capacity.

Application :

Three phase of plant oil centrifuge:

crude oil refinery plant is the main equipment for a vegetable oil continuous refining system,

can be used for plant oil refining,continuous degreasing, dephosphorization, de-soap,

dehydration and other procedures.

Reducing the harmful ingredients in vegetable oil, to meet national standards.

For the coconut oil/ soybean oil / palm oil, we have exported to many countries.

ZYDH385 Oil Separator Machine Disc Stack Centrifugal / Oil Extraction Machine

Product tags

castor oil extractor machine

,

oil separator machine

,

coconut oil processing machine
