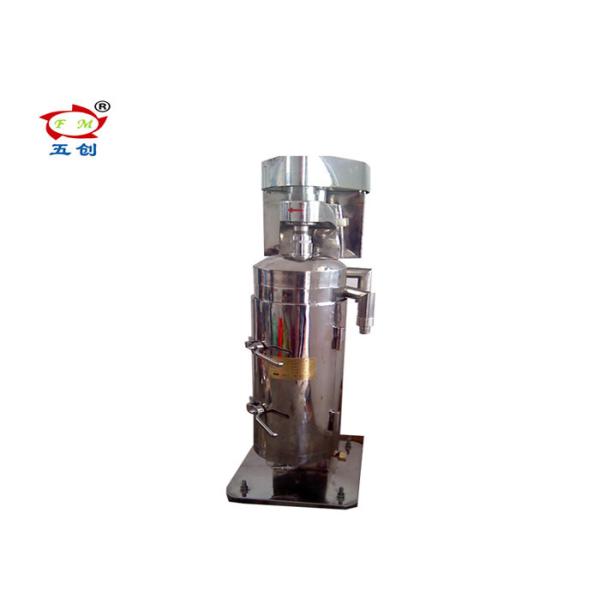

3 Phase Tubular Centrifuge Liquid Solid Separator 16000 R／Min Speed
3 Phase Tubular Centrifuge Liquid Solid Separator 16000 R／Min Speed
3 Phase Tubular Centrifuge Liquid Solid Separator 16000 R／Min Speed
3 Phase Tubular Centrifuge Liquid Solid Separator 16000 R／Min Speed
Specifications
Brand Name :
fivemen
Model Number :
GF
Certification :
ISO
Place of Origin :
China, Jiangsu
MOQ :
1 SET
Price :
USD 5000-8000 Per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 sets per month
Delivery Time :
20-30 days after deposite
Packaging Details :
Wooden packing
Speed :
16000 r／min
separation factor :
15050 R.C.F
Drum effective length :
742 mm
Stuff inlet pressure :
＞1.5 kg
drum diameter :
105mm
Motor power :
3kw
Materials :
304/316L/Duplex steel
Size :
760*450*1680
Description

3 Phase Tubular Centrifuge Liquid Solid Separator 16000 R／Min Speed


Introduction:

Tubular centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle, it has been widely used in pharmaceutical, health food, drinks, chemical industries to separate the liquid-solid or liquid-liquid-solid materials. It is an ideal centrifuge take advantage of centrifugal methods, the minimum granules is 1 um, which is suitable for distill, condense and clarify the material has small gravity difference, small and few solid granules and high erosion products.

Feature:

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) SKF Bearing

4) High speed, high separation factor

5) the good effect

The centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle, it has types, one is GQ two phase that can separate solid from the liquid, another is GF series, which can separate the water, solid from the oil.


Technical Parameters :
GF105
GF145
Drum speed
16300 r/min
14000 r/min
Max centrifugal force
15750 R.C.F
16900
Drum inner diameter
105 mm
145 mm
Drum effective length
730 mm
770 mm
Solid volume in drum
6 L
8 L-12L
Stuff inlet pressure
<0.1Mpa
<0.1Mpa
Output (water flux)
1500 L/H
2500 L/H
Motor power
3 KW
3 KW
Specification
760*450*1680 mm
890*580*1670 mm
Weight
400kg
700kg

Product Application

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) SKF Bearing

4) High speed, high separation factor

5) the good effect

The centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle, it has t types, one is GQ two phase that can separate solid from the liquid, another is GF series, which can separate the water, solid from the oil.
