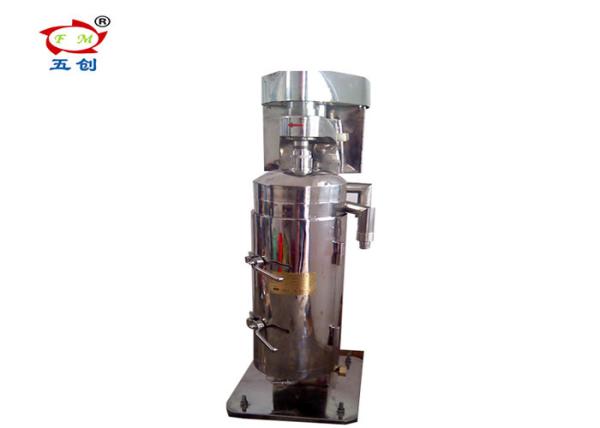

Two Phase Tubular Centrifuge Separator GQ Series Liquid Solid separation machine
Two Phase Tubular Centrifuge Separator GQ Series Liquid Solid separation machine
Two Phase Tubular Centrifuge Separator GQ Series Liquid Solid separation machine
Two Phase Tubular Centrifuge Separator GQ Series Liquid Solid separation machine
Specifications
Brand Name :
FiveMen
Model Number :
GQ75
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
USD 5,000.00 - 9,000.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
15 work days
Packaging Details :
standard with wooden case and poly film wrapping
Name :
Tubular Centrifuge
function :
solid liquid two phase separation
Material :
304 /316L/ Duplex steel 2205
Type :
high speed centrifuge
Operation :
manual discharge
After-sales service provided :
Engineers available to service machinery overseas
Description

Two Phase Tubular Centrifuge Separator GQ Series Liquid Solid separation machine

Product Description

High speed tubular centrifuge fuselage, drum, etc. all use stainless steel. Its external appearance is concise, internal is convenient to clean. It is used for GMP renovation and in accordance with the GMP requirements of production enterprises.

Main technical parameters

Drum speed 20000 r／min
Max centrifuge force 16700 R.C.F
Drum inner diameter φ75 mm
Drum effective length 285 mm
Solid volume in drum 2 L
Stuff inlet pressure ＞1.5 kg
Capacity(water flux) 20～200 L/h
Motor power 1.5 KW
Specification 660×390×1200mm
Stuff inlet diameter φ12 mm
Liquid outlet diameter φ32 mm
Liquid outlet height 630 mm

Working principle

Machine body, drive system, drum, and liquid tray, enter liquid bearing seat composed of pipe centrifuge.

On the top of drum is the flinch axis, under is the damp drift bearing. Main axis linked by buffer and passive wheel, via conveyor belt, fasten

wheel, the dynamic is transmit to drum and it will rotate axes to run at rapid speed. The stuff is ripped into via liquid inlet, under the centrifuge

force, the stuff along the wall of drum flow upward. As different material has different density, the stuff will separate layer in the centrifuge.

Structure

1. slide bearings;

2. feeding liquid tray;

3. machine head;

4. press wheel part

5. drive part

6. drum;

7. centrifuge body.

​

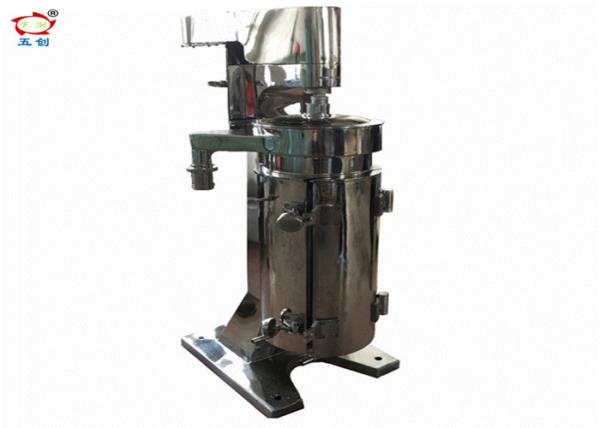

Photo:

Two Phase Tubular Centrifuge Separator GQ Series Liquid Solid separation machine
