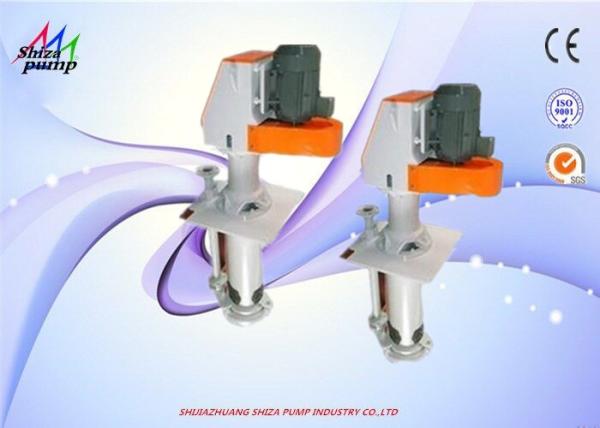

Vertical Dewatering Transfer Submersible Turbine Pump For Transportation Corrosiveness
Vertical Dewatering Transfer Submersible Turbine Pump For Transportation Corrosiveness
Specifications
Brand Name :
SHIZA
Model Number :
SP
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
based on quantity
Supply Ability :
300sets monthly
Packaging Details :
wooden case
Name :
sand gravel pump
Pump model :
14/12G-G(H)
Pump inlet :
14inch inlet
pump outlet :
12 inch outlet
Pump material :
High chrome A05
original :
China
Description

Vertical Spindle Slurry Pump, Dewatering Sump Pump,high Pressure Centrifugal Vertical Slurry Transfer Pump

Vertical slurry pump main features:

SPR pumps are vertical,centrifugal slurry pumps which are to handle abrasive,large particle and high

concentration slurries. Mainly is suitable for the transportation corrosiveness, the big pellet, the highly

concentrated dregs thick liquid. Widely applies to department for example metallurgy, mine, coal, electric power, building materials, environmental protection.

Type meaning

40PV(L)-SP(R)

40---------------pump discharge size (mm)

PV---------------Bracket

L------------------Extension type

SP-----------------Sump pump

R-------------------Rubber lined pump

Performance table:

Type

Outlet Dia.

(mm)

Bearing

Frame

Max Power

(KW)

Max Particle

Size (mm)

Pumping Depth

(mm)

No. of

Vanes

Impeller Dia.

(mm)
SP-40P 40 P 15 12 900*1200 5 188
SP-65Q 65 Q 30 15 900*1200*1500 5 280
SP-100R 100 R 75 32 1200*1500*2100 5 370
SP-150S 150 S 110 45 1500*1800*2100 5 450

Type

Outlet Dia.

(mm)

 Bearing Frame

Max Power

(KW)

Max Particle

Size (mm)

Pumping Depth

(mm)

No. of

Vanes

 Impeller Dia. (mm)
SP-40PR 40 P 15 12 900*1200 5 188-195
SP-65QR 65 Q 30 15 900*1200*1500 5 280-290
SP-100RV 100 R 75 40 1200*1500*2100 5 370
SP-150SVR 150 S 110 45 1500*1800*2100 5 450

Features

1. Pump Casing : Cast Iron GG25 ; Ductile Cast Iron GGG40 ; Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu ; Bronze
2. Pump Impeller : Cast Iron GG25 ; Ductile Cast Iron GGG40 ; Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu ; Bronze.
3. Shaft : Carbon steel AISI1045 ; Chrome Steel 40Cr ; SS AISI420 ; SS AISI4140 ; SS316Ti ; SS

DIN1.4571 ; Duplex SS UNS S32205
4. Seal Type : Mechanical seal , Gland packing.
5. Bearing Type : Ball Rolling
6. Shaft Sleeve : Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu
7. Wearing Ring: Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu
